2018 High Low Temperature and Humidity Test Chamber
US$ 4000 - 10000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
LIK
Place of Origin:
China
Model Number:
LJ60
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
25 days
Related Products
-
Walk-in Temperature & Humidity Test ChamberUS$ 33000 - 100000MOQ: 1 Set -
Walk-in Temperature & Humidity Salt Spray Compound Test ChamberUS$ 7999 - 28000MOQ: 1 Set
-
Salt Spray Test ChamberUS$ 500 - 4999MOQ: 1 Set
-
Hot and Cold Thermal Shock Test ChamberUS$ 19500 - 50000MOQ: 1 Set
-
Xenon Lamp Weather Resistance Test ChamberUS$ 9000 - 20000MOQ: 1 Set
Brand Name
LIK
Place of Origin
China
Model Number
LJ60
Power
Electronic
Usage
Other, simulation environmental test machine
roduct Description
High Low Temperature And Humidity Test Chamber
Applicable range
High Low Temperature And Humidity Test Chambers are applicable for testing the performance indexes of aeronautic & astronautic products,ships,weapon, accdemies, motorcycle, information electronics,instruments & meters, materials, electronic engineering, electronic products, various electronic elements, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging,materials, plastics, medical and so on in high-low temperature or temperature and humidity alternation environment.
Features(High Low Temperature And Humidity Test Chamber)
1. The adjustable air outlet to keep the best temperature/humidity level regularity; the treble independent temperature security protector, it does not effect the other two because of the failure of one of them.
2. evaporator coils, the fin and the other connectors are all made of copper,coefficient of heat transfer is over 20, and it avoid the chemical couple from stainless steel or aluminum.
3. Depending on the strong control system, refrigeration system has perfect functions, the chamber can reach -90ºC on the condition that just depend on mechanical refrigeration.
4. The appearance break tradtional design which could match various colors and different appearance effect. "L" solid design is not only beautiful but also stands for "LIK" culture.
5. Large-scale temperature range: -40ºC~200ºC; 2.0mm thickness sheet metal.
6. Unique temperature and humidity controlled range.
7. (1)This serious equiments, our company adopt automatic watering and drawer type hidden water tank double-duty device. (2) water recovery system, customers could decide whether recycle automatically or not. (3) with water level sensor and could observe water level and watering
automatically on the basis of water level.
8. high competitive factory price with high quality and power after-sales service.
Specifications and technical parameters
Corresponding test standards:
1.GB/T2423.1-2001 Test A: low temperature test method
2.GB/T2423.2-2001 Test A high temperature test method
3.GB/T11158-2008 technical condition of high temperature test chamber
4.GB/T10589-2008 technical condition of low temperature test chamber
5.GB/T 2423.22-2008 test Nb:temperature variation test
6.GB/T 2423.4-2008 test Db:alternating temperature humidity test
7.GB/T 2423.3-2008 Constant temperature humidity test
8.GJB150.3-2009 high temperature test
9.GJB150.4-2009 low temperature test
10.GJB150.9 humidity test
11.GJB 150.9A-2009 test standards for temperature humidity test GB/T5170.2-2008 temperature test device.
12.GB/T5170.5-2008 temperature humidity test devices, meet the requirements of 8.1 alternating temperature humidity cyclic test in Lithium-ion power battery packs and systems designed electromobile Part2: test specification for high-energy application.

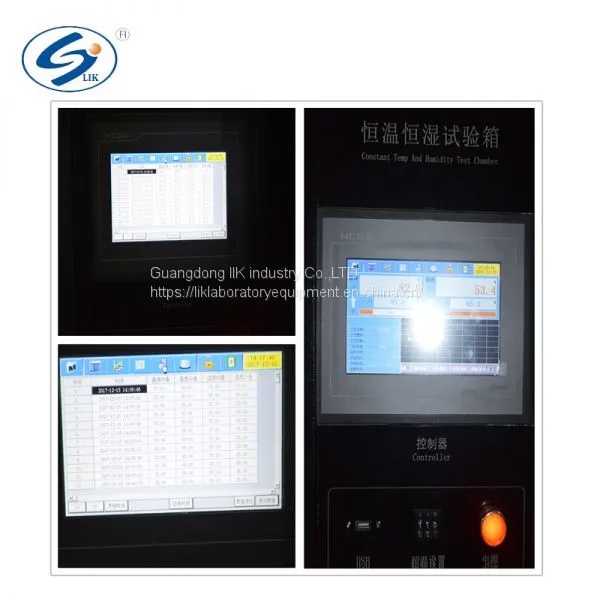

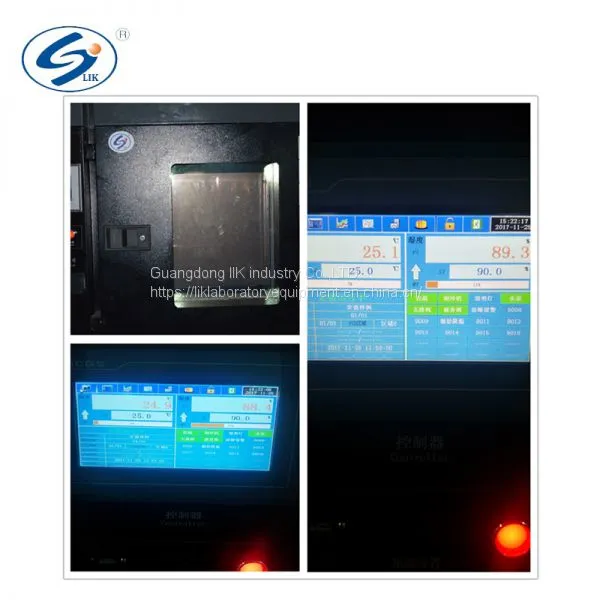

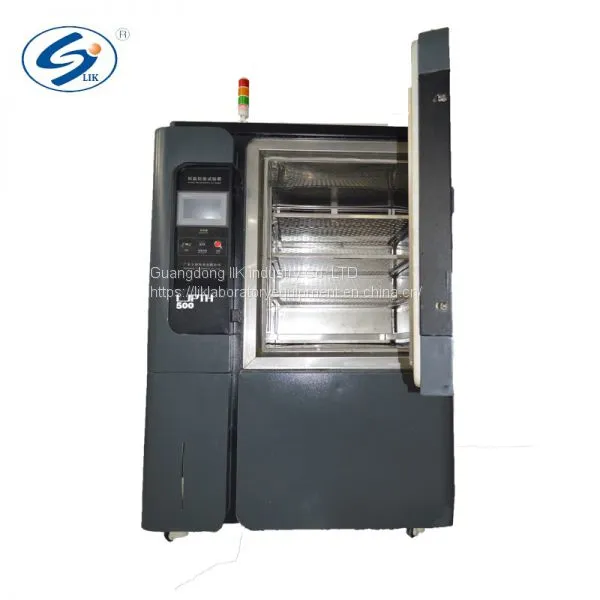

Products image(High Low Temperature And Humidity Test Chamber)
Our Factory
Short introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
LIK main test equipments:
Environmental test chambers, temperature (humidity) chamber,Thermal shock chamber, High low temperature test chamber, Salt spray test chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in constant temperature and humidity test chamber,Vacuum oven, Drying Cabinet, electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber, Powe battery crush and puncture test machine, Battery shock impact test machine, Battery Squeeze test machine, battery short circuit tester, Battery burning jet test equiopment, Battery needling test machine, etc
Applicable range
High Low Temperature And Humidity Test Chambers are applicable for testing the performance indexes of aeronautic & astronautic products,ships,weapon, accdemies, motorcycle, information electronics,instruments & meters, materials, electronic engineering, electronic products, various electronic elements, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging,materials, plastics, medical and so on in high-low temperature or temperature and humidity alternation environment.
Features(High Low Temperature And Humidity Test Chamber)
1. The adjustable air outlet to keep the best temperature/humidity level regularity; the treble independent temperature security protector, it does not effect the other two because of the failure of one of them.
2. evaporator coils, the fin and the other connectors are all made of copper,coefficient of heat transfer is over 20, and it avoid the chemical couple from stainless steel or aluminum.
3. Depending on the strong control system, refrigeration system has perfect functions, the chamber can reach -90ºC on the condition that just depend on mechanical refrigeration.
4. The appearance break tradtional design which could match various colors and different appearance effect. "L" solid design is not only beautiful but also stands for "LIK" culture.
5. Large-scale temperature range: -40ºC~200ºC; 2.0mm thickness sheet metal.
6. Unique temperature and humidity controlled range.
7. (1)This serious equiments, our company adopt automatic watering and drawer type hidden water tank double-duty device. (2) water recovery system, customers could decide whether recycle automatically or not. (3) with water level sensor and could observe water level and watering
automatically on the basis of water level.
8. high competitive factory price with high quality and power after-sales service.
Specifications and technical parameters
| specifications and technical parameters | |||||
| Model | LJ(K)GD-100 (A, C, E, G, S) |
LJ(K)GD-225 (A, C, E, G, S) | LJ(K)GD-500 (A, C, E, G, S) | LJ(K)GD-800 (A, C, E, G, S) |
LJ(K)GD-1000 (A, C, E, G, S) |
| Inner size: W*H*D(cm) | 50*50*40 | 50*75*60 | 70*90*80 | 100*100*80 | 100*100*100 |
| External size: WHD(cm) | 70*161*116 | 70*186*136 | 90*201*156 | 120*211*156 | 120*211*176 |
| Temperature range | (A:0~+200ºC; C: -20~+200ºC; E: -40~+200ºC; G:-60~+200ºC; S:-70~+200ºC) | ||||
| Humidity range | 10%~98%RH; electronic sensor .(5%~98%RH. special optional condition) | ||||
| Temp. Fluctuation | ±0.3ºC | ||||
| Temp. uniformity | 0.2ºC or 0.3ºC or 0.5ºC or 1ºC or 2ºC | ||||
| Temp. deviation | High temp. ≤±2ºC ; Low temp. ≤±3ºC | ||||
| Heating time | ≥3ºC/min | ||||
| Cooling time | ≥1ºC/min | ||||
| Inner and outer materials | Mirro face SUS#304 Stainless steel for inner chamber ; Mirro face cold rolled steel with power coating. |
||||
| Insulation materials | PU & Fiberglass wool | ||||
| Cooling system | Mechanical refrigerating(air cooling) | ||||
| Compressor | Original imported compressor | ||||
| Resolution ratio | temperature: 0.01ºC ; humidity: 0.1%RH; time: 1s. | ||||
| Transducer (sensor) | Temperature: armored platinum resistance PT100 German JUMO ; Humidity: Finland VAISALA 0.8-level humidity module sensor, humidity range 0%~100%RH, temperature range: -100~+200ºC |
||||
| Safety device | On the side of the chamber has decompression exhaust port, automatic safety reinforced steel plate, power off protection, overtemperature protection, the alarm function and overtemperature shutdown protection according to the upper and lower limit temperature, 200*200mm explosion- proof safety gate, calendar timing function(start and stop running automatically), self-checking when power on, three levelsof password protecting of setting parameters, and automatic fire-fighting linkage heptefluoro propane fire-extinguishing system. |
||||
| Standard Parts | Watching window , sample holder(2 sets) , One wire hole , one illuminating lamp, one power line, USB interface. |
||||
| Controller | Import PLC module(OMRONI LK8600)(including environmental test embedded PLC control software V15012)+ 7 inches color touch screen (including environmental test device embedded touch screen control software V1501). |
||||
| 7, 10 , 15 inches full touch operation. | |||||
| TFT LCD screen, 1021-600 resolution ratio. | |||||
| import OMRON PID modules, 0.1% control precision. | |||||
| 100 operatiing Processes, each process requires 50 precedures. | |||||
| paperless recording function, the maximum time for recording date can amount to 1200 days. | |||||
| Electronic signature function, limiting operation password protection function. | |||||
| PID cold-end output function, control software intergrates the efficiency of machine, save 20% power. | |||||
| scalable: uniformity of the acquisition and display devices of multi-channel temperature and humidity | |||||
| Anti-electronmagnetic interferance of hardware is up to industrial grade three, the highest standard in China. | |||||
| Power | AC 220V 60/50Hz ; AC 380V 60/50Hz | ||||
| Customized service | Welcome to Non-standard,Specail requirements,OEM/ODM orders. | ||||
Corresponding test standards:
1.GB/T2423.1-2001 Test A: low temperature test method
2.GB/T2423.2-2001 Test A high temperature test method
3.GB/T11158-2008 technical condition of high temperature test chamber
4.GB/T10589-2008 technical condition of low temperature test chamber
5.GB/T 2423.22-2008 test Nb:temperature variation test
6.GB/T 2423.4-2008 test Db:alternating temperature humidity test
7.GB/T 2423.3-2008 Constant temperature humidity test
8.GJB150.3-2009 high temperature test
9.GJB150.4-2009 low temperature test
10.GJB150.9 humidity test
11.GJB 150.9A-2009 test standards for temperature humidity test GB/T5170.2-2008 temperature test device.
12.GB/T5170.5-2008 temperature humidity test devices, meet the requirements of 8.1 alternating temperature humidity cyclic test in Lithium-ion power battery packs and systems designed electromobile Part2: test specification for high-energy application.
Products image(High Low Temperature And Humidity Test Chamber)
Our Factory
Short introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
LIK main test equipments:
Environmental test chambers, temperature (humidity) chamber,Thermal shock chamber, High low temperature test chamber, Salt spray test chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in constant temperature and humidity test chamber,Vacuum oven, Drying Cabinet, electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber, Powe battery crush and puncture test machine, Battery shock impact test machine, Battery Squeeze test machine, battery short circuit tester, Battery burning jet test equiopment, Battery needling test machine, etc
