Xenon Lamp Weather Weather Resistance Test Chambe
Applicable range
Xenon Lamp Weather Weather Resistance Test Chamber Xenon lamp test machine is best fit to mimic natural full sunlight spectrum xenon arc lamp to reproduce the destructive waves of light of different environment, which can be an excellent material for accelerated testing light fastness and weather resistance. Can be used for the screening of new material, improvement of existing materials or evaluate material such as the change of the composition change after durability test. Industry widely used, for example: paint ink, paint, resins, plastics, printing and packaging, adhesive, car motorcycle industry, cosmetics, metal, electronic, electroplating, medicine, etc.
Xenon Weather Conditions Meter is to test the product undergone illumination/rain/condensation/temperature/humidity/wind and any other climatic changes. This aging tester mainly for the test of non-ferrous/organic/rubber/plastic and building materials. It can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.
Features:
1.Inner chamber is made of advance stainless steel pate , outside skin is made of SUS304# stainless steel card pate with power-coated .
2.Dynamic rotating sample frame, speed can be adjusted.

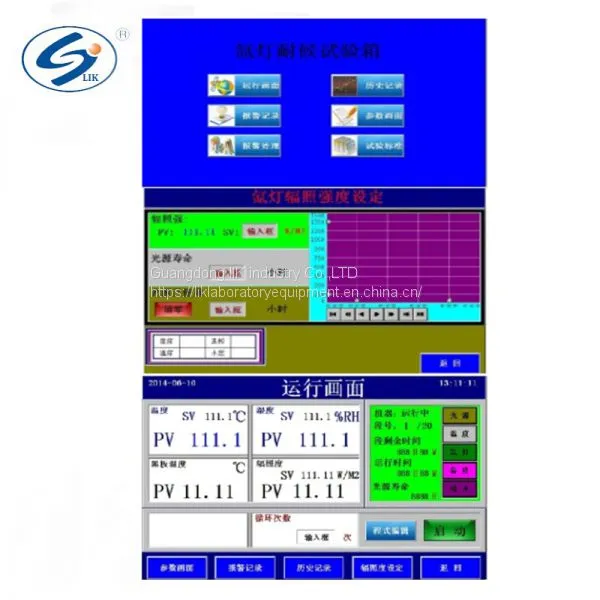

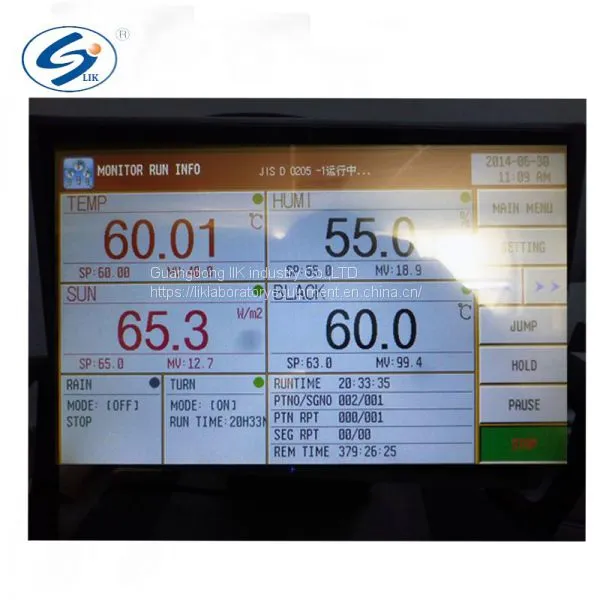

3.Using the imported intelligence temperature control instrument, with the PID adjustment ,fast auto-tuning ,can set up many kinds of technical parameters. Temperature direct digital display, reading is very convenient.
4.A filter light observation window, harmful gas vents.
5.Double metal the blackboard thermometer.
6.Variety of safety protection devices.
Products image
Specifications and technical parameters
| Model | LJSDGD-225L | LK-SUN-500S | LJSDGD-1000L |
| Inner Box Size (D×W×H) |
500*750*600mm | 800*800*800mm | 1000*1000*1000mm |
| Outside Dimension (D×W×H) |
850*1300*1550mm | 1150*1350*1750mm | 1500*1600*2250mm |
| Temperature Range | RT+10~80°C | ||
| Humiture Range | 45%~98%RH | ||
| Temperature and Humiture uniformity |
≤3ºC; ± 3%RH | ||
| Rainfall time | 1~9999min, adjustable | ||
| Rainfall cycle | 1~240min, interval is adjustable | ||
| Xenon lamp light | xenon long-arc lamp, 6KW±10%, 290-800nm, 1000W/m2±200 | ||
| Heating/humidifying power |
2.0KW/2.0KW | ||
| Sample spinning machine speed |
1~5r/ min (adjustable) | ||
| Sample and xenon lamp distance |
300~375mm | ||
| Distance from specimen to arc center | 250~300mm, Effective exposure area 3700cm2 |
250~300mm, Effective exposure area 6000cm2 | 250~300mm, Effective exposure area10000cm2 |
| Inner chamber material | SUS 304 # Stainless Steel, Anti-rust, easy to clean | ||
| Insulation materials | Superfine heat insulation cotton | ||
| Insulation body | Superfine glass fabric | ||
| Circulation system | Single cycle, centrifugal fan | ||
| Control system | LCD, touch screen | ||
| Gas processing | discharger for factor and harmful gas | ||
| Power | AC380V, three phase five wire, 10KW |
AC380V, three phase five wire, 15KW |
|
| Use environment | 5°C~+30°C, ≤85%R.H | ||
| Standard features | 1. Filtering screen viewing window; 2. Moisture proof lamp | ||
| Security Protection | Security device for circuit break | ||
| high pressure of the compressure, high temperature alarm | |||
Corresponding test standards:
GB/T 2423-24: 1995, GB/T 2424-14: 1995 ISO 4892-2: 2006, ISO 11341: 2004
ASTM D155-05A, ASTM D2565-99, ASTM D4459-06, ASTM D6695-03B
