Production description
Electrothermal Blast Dry Chamber, Drying Chamber is used to dry, brake, dewax, sterilize and preheat variours materials or specimen. By means of hot air circulation methods to uniform the temperature distribution.
Features
1. Both the internal and external of box/chamber body are made of high quality steel sheet by welding, the surface is electrostatic power-spraying treated, internal workroom is made of mirror stainless steel or coated with high temperature resistant silver paint, the door with observation window or it's double-door structure, it's novel and elegant in appearance and has advantage of energy saving.
2.Microcomputer based intelligent digital display temperature controller, it is accurate and reliable in temperature control, it is able to display preset temperature and actual temperature inside box synchronously; it has alarm functions of over-temperature/heat, electric leakage and sensor error; also has timing function. (intelligent LCD temperature controller is optional)
3. Adoption of low-noise fan and suitable air channel that form the hot air circulating system, the heated dry air flows through the objects directly to dry and sterilize.
4. Besides the above mentioned function, the upgraded LCD temperature controller also has function of programmable temperature control, it can be equipped with RS-485 interface which is used to connect the recorder and computer for recording the change situation of temperature parameters(Optional).
5. high competitive factory price with high quality and power after-sales service.

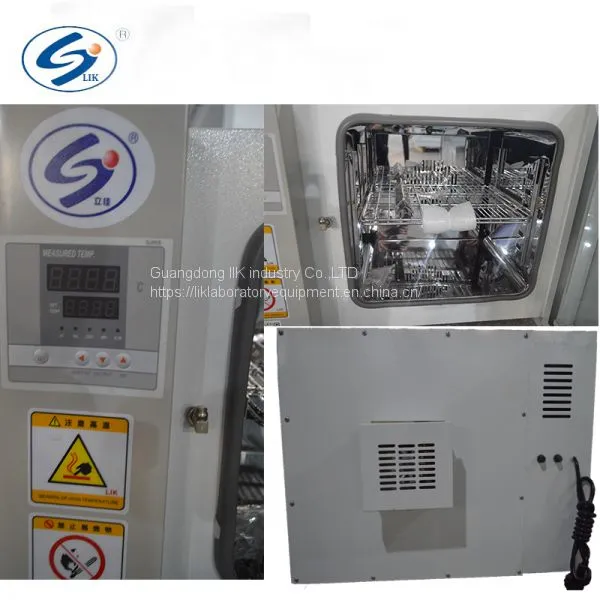

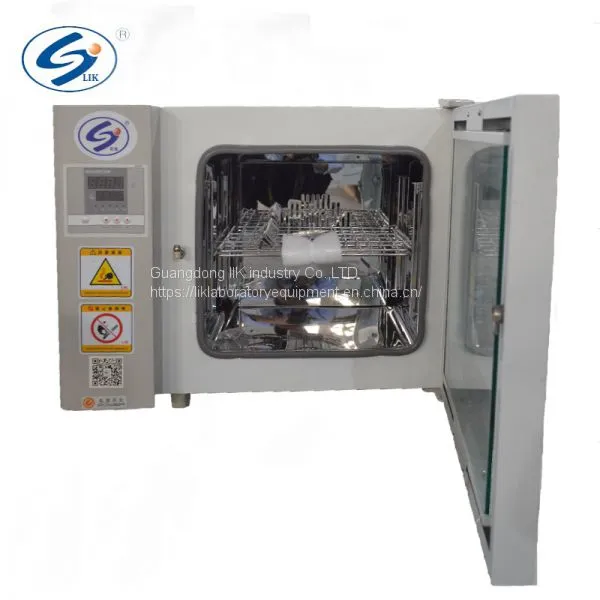

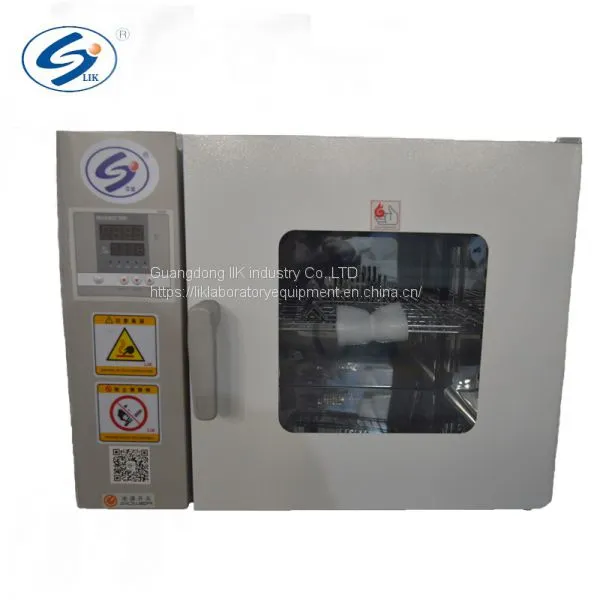

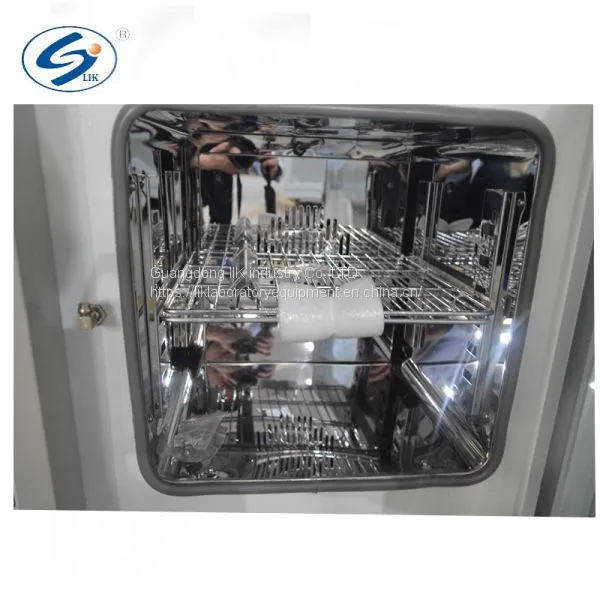

Products image
Specifications and technical parameters
| Model No | LDGH-9030(A) | LDHG-9070(A) | LDHG-9140(A) | LDHG-9240(A) | 101A-4 | |
| Application | used for drying, baking, wax-melting, sterilization, curing | |||||
| Air circulation type |
Mechanical Convection | |||||
| Performance | temp. range | RT+10~ 250ºC | ||||
| temp. resolution | 0.1°C | |||||
| temp. fluctuation | ±0.5ºC | |||||
| temp. uniformity | ±2.5% | |||||
| Structure | chamber material | stainless steel | ||||
| shell material | spraying cold rolled steel | |||||
| Thermal insulation material |
aluminum silicate fiber | |||||
| heating device | nichrome heating wire | |||||
| rated power | 600W | 1150W | 1600W | 2100W | 7200W | |
| Controller | temp. control | Microcomputer intelligent digital display controller (intelligent LCD temperature controller is optional) |
||||
| temp. setting | press the four keys slightly | |||||
| timer | 1~9999minutes(with timing function) | |||||
| operation function | running with data set and time set, and automatic shutdown based on setting | |||||
| program mode | optional | |||||
| sensor | Pt100 or K type | |||||
| additional function | deviation calibration, menu buttons lock, power outage compensation, power outage memory |
|||||
| Safety device | over-temperature/heat, electric leakage and sensor error alarm | |||||
| Specification | workroom size | 35*35*35 | 45*35*45 | 55*45*55 | 60*50*75 | 80*80*100 |
| (D*W*H cm) | ||||||
| exterior size | 52*64*56 | 74*52*66 | 84*62*76 | 89*67*96 | 109*97*106 | |
| (D*W*Hmm) | ||||||
| packing size | 64*73*67 | 83*64*77 | 93*73*87 | 102*97*107 | 120*108*117 | |
| (D*W*Hmm) | ||||||
| Power source | AC220V 50Hz | |||||
| Accessory | shelf | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs |
| shelf bracket | 4pcs | 4pcs | 4pcs | 4pcs | 4pcs | |
| Optional device | shelf, RS485 port, printer, recorder, external communication, remote control, program temperature controller, wireless message alert, U disk storage. |
|||||
| Customization service | Non-standard or special requirements are all welcome. | |||||
Our Factory
Short introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
