Battery Crushing Strength Testing
Application
Through the extrusion test, The machine use for testing the safety performance through the extrusion/crushing/squeezing test. After testing, the battery should not catch fire,smoke or explode. It is also an essential testing device for every battery manufacturer and Research Institute.
Features
1.The wire enclosed with metal fire-proof cover, which is available to prevent the flame during testing process.
2.Lighting system is designed to observe the internal testing process; The inner box materials are resistance combustible materials.
3. Crush Force controllable within range from 250N to 13KN ,meet different standards;
4.The time can be set, the precision is higher, and the maximum force can be displayed directly.
5. Be equipped with the exhaust air vent (it is convenient for customers to discharge the odor produced in the battery test to the outside of the laboratory).
6.Control system employs independent control cabinet & separated with the test chamber with a distance 1-2 meter, which can reduce the noise and improve safety and Easy operation.
7. Double-layer explosion-proof glass window and explosion-proof chamber.
Specification
| Product Model | LJ-832(A-E) |
| Force Range | 1~20KN(13KN standard)Adjustable, customized) |
| Tester Architecture | Free Stand & Vertical extrusion |
| Power Supply | 380V/50HZ 10A |
| Force Deviation | ≤±1% Full-scale Range |
| Unit conversion | Kg/N/Lb |
| Extrusion speed | 0.1~ 900mm/min(adjustable) |
| Extrusion speed Accuracy | ≤±1% |
| Crushing Travel | 300mm |
| Test space | W300 X D300 X H200mm |
| Observation window size | 200 X 200mm(10mm thickness Double layer explosion-proof glass) |
| Overall Dimension | W680 X D570 X H1740mm |
| Sensor resolution | 1/100000 |
| Pressure display precision | ±1.0kg |
| Exhaust fan | Diameter 120mm (Back side of the chamber is equipped with an exhaust fan) |
| Air feeding hole | Two 50mm holes on the left side of the chamber (which also can be used to measure voltage and so on. |
| Lighting | The top of the chamber is equipped with a light lamp |
| Total Power | 4KW |
| Controller | PLC automatic control, the man-machine interface presupposes various working modes,and the operation is simple and convenient. (Touch Screen optional) |
| Crushing Time Maintaining | 0~99 Hours 99 Minutes & 99 seconds, time can be controllable to control the deformation and stop if test fulfilled. |
| Driven Method | Hydraulic |
| Auxiliary Function | Explosion-proof Pressure Release System, Exhaust System, fire-extinguish device |
| Stucture | Inner chamber: stainless steel plate |
| Outside of chamber: cold rolled plate with painting. | |
| Pressure display: pressure sensor | |
| Wheels: There are 4 Movable universal wheels in the bottom of chamber | |
| Door: double layer door, flat handle, explosion-proof glass window. | |
| Machine Weight | Estimate 200kg |
| Working environment | Allowed working environment:0 ~ 35ºC |
| Performance assurance environment:5 ~ 28ºC | |
| The space between the equipment and the wall and the surroundings must ≥ 1500mm. | |
| Using suggestion | Placing the equipment close to the window will be convenient to discharge the odor produced in the test outside. |
| Do not put flammable and explosive things around the equipment. | |
| Equipment and related accessories should be maintained regularly | |
| Customized service | Welcome to Non-standard,Specail requirements,OEM/ODM orders. |

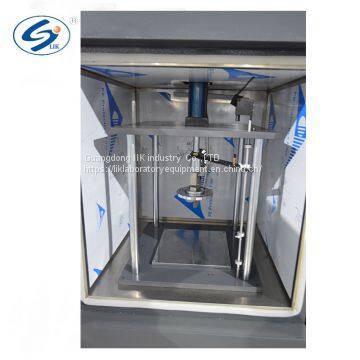

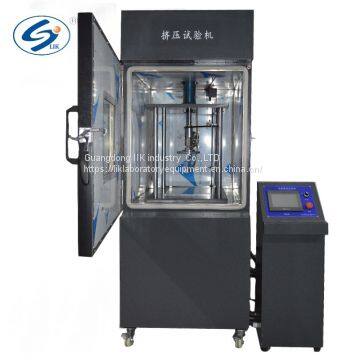

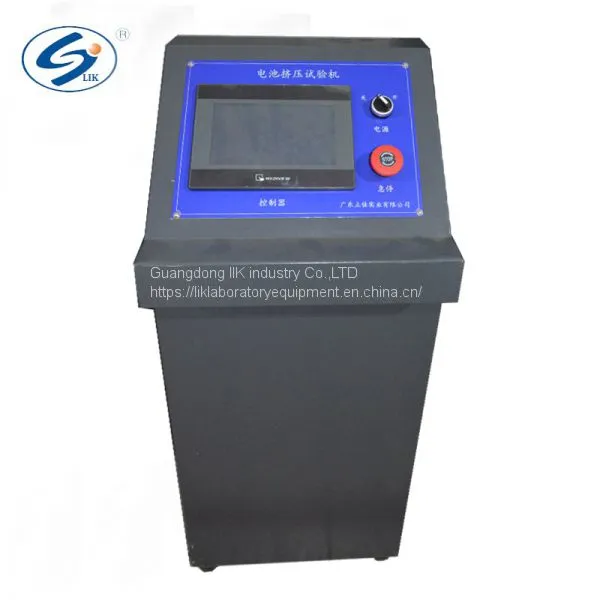

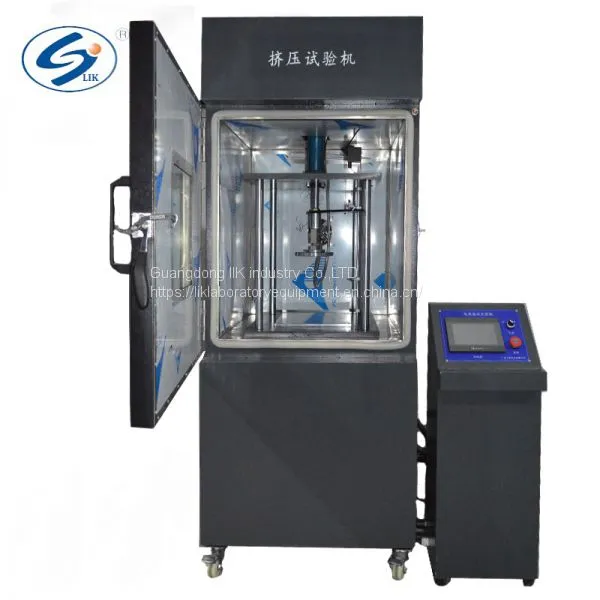

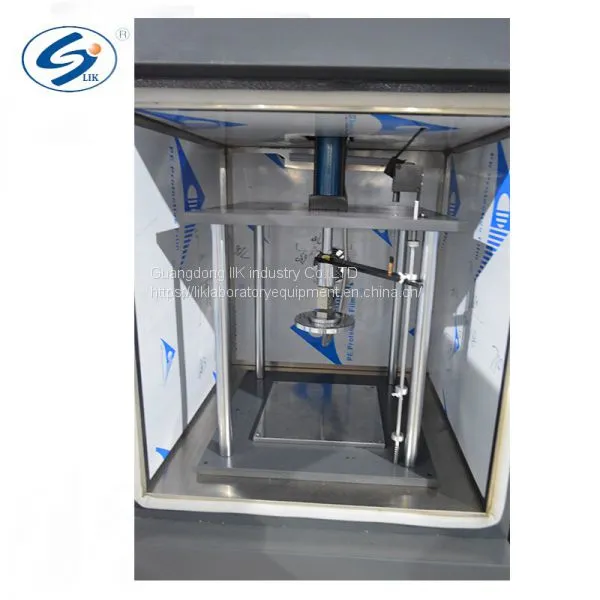

Products image(Battery Crushing Strength Testing)
Standard Compliance
MT/T 1051-2007, UL1642-2005, UL2054-2005, SJ/T 11169-1998(=UL 1642:1995), GB/T31485-2015, YD 1268- 2003, SJ/T 11170-1998, GB/T 8897.4-2002, IEC 62133 etc.
Test Method
1.The battery is squeezed between the two plates and the upper plate is R75 hemispherical shape. The extrusion pressure come from the hydraulic pressure head with the diameter of the 32mm piston. After the test battery was firmly clamped, start to apply the squeezing force until pressure gauge reading reaches to 2500(17.2Mpa).It will be suddenly released when the prossure below the two plates reach 3000 pound(13KN).
2.The cylindrical and prismatic battery cell need make the longitudinal axis parallel to the plane of the extrusion device for extrusion. Prismatic battery still need rotate around its longitudinal axis 90 degrees placing ,so as to make the wide and narrow side could bear the squeeze pressure. Each battery sample is subjected to pressure in one direction. Different samples should be used in each test.
in or button type battery need make the battery plane parallel to the plane of the extruding device to bear pressure.
Our Factory
Short introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
