Help CenterCarton Box Package Horizontal Vertical Simulation Transportation Vibration Test Machine
Related Products
-
Simple Vibration Test TableUS$ 2980 - 6500MOQ: 1 Set -
Popular Electronics High Frequency Type Vibration Test SystemUS$ 21900 - 70000MOQ: 1 Set
-
Battery Crushing Strength TestingUS$ 2880 - 5880MOQ: 1 Set
-
Li Ion Battery Nail Penetration Testing MachineUS$ 2680 - 5780MOQ: 1 Set
-
Battery Internal Safety Short Circuit Test MachineUS$ 1200 - 20800MOQ: 1 Set
Applicable range
Carton Box Package Horizontal Vertical Simulation Transportation Vibration Test Machine, which simulates a transportation environment to test the vibration-resistance of packed Toys, electronics, furniture, gift, ceramics, equipment, computer and automobile components, etc., under simulated transport Conditions, according to American and EU transport standard (ASTM, IEC).
Features
1. Cost friendly, which is only 10% of the same products in the USA;
2. Adopts synchronous mute belt drive for low noisy;
3. Rail-type specimen holder, easy operation and safety;
4. Machine base adopts heavy style channel with vibration attenuation pad, convenient, stable and no need to install land screw;
5. AC motor adjusts speed for smooth operation and large load ability;
6. It can set 8 different segments with different frequency to work automatically and the machine will stop automatically once finish test.

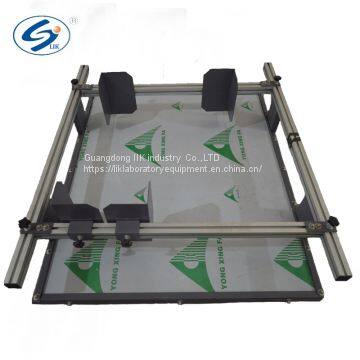

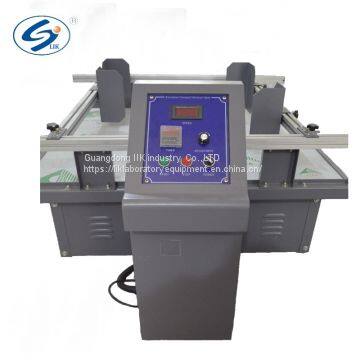

Products image
Specifications and technical parameters
| Mode | LJ-100 | LJ-200 | LJ-300 | LJ-600 | LJ-1000 |
| Load (Kg) | 100 | 200 | 300 | 600 | 1000 |
| Effective Area WxD (cm) | 120×100 | 120×100 | 120×130 | 135×150 | 140×150 |
| Weight (Kg) | 200 | 250 | 350 | 450 | 600 |
| External Dimension | 130×65×130 | 130×65×130 | 130×65×140 | 140×75×150 | 160×85×160 |
| WxHxD (cm) | |||||
| Rotating Speed (RPM) | 150~300 | ||||
| Simulation speed | 25 ~ 40km / h | ||||
| Speed display accuracy | 0.1RPM cycle/min | ||||
| Amplitude | 25.4mm(1inch), (Accord ASTM.IEC transport standard) | ||||
| Time Setting (Approx.) | 0~999hours | ||||
| Mode of Vibration | Reciprocating type | ||||
| Speed control mode | DC speed control or AC frequency conversion control | ||||
| Environmental conditions | temperature: 5 ~ 40 ºC, relative humidity ≤ 85% | ||||
| Motor Power | 1HP | 2HP | 3HP | 5HP | 10HP |
| Power | AC220V / 380V50/60Hz or according to the equipment specification | ||||
| Standard | EN71,ANSI,UL,ASTM, ISTA | ||||
Our Factory
Short introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
