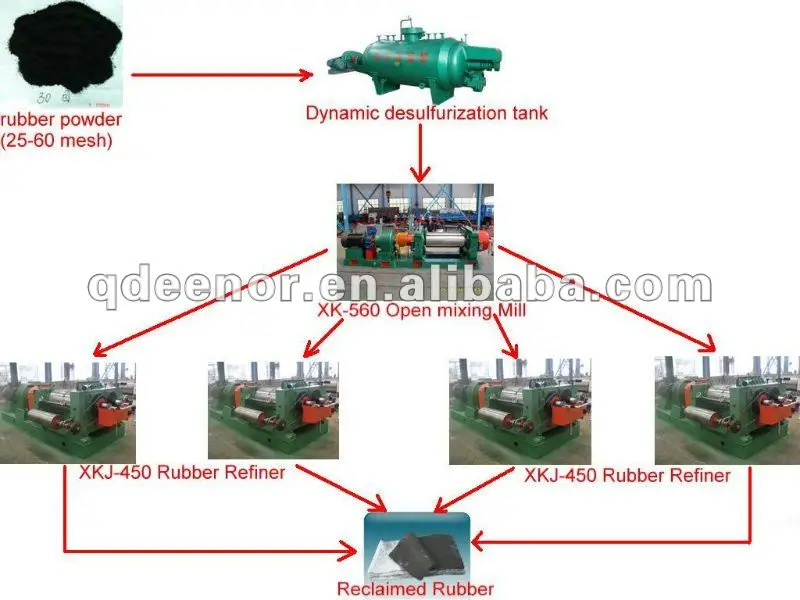

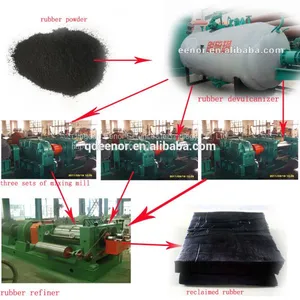

Reclaimed rubber production line:
Product Name |

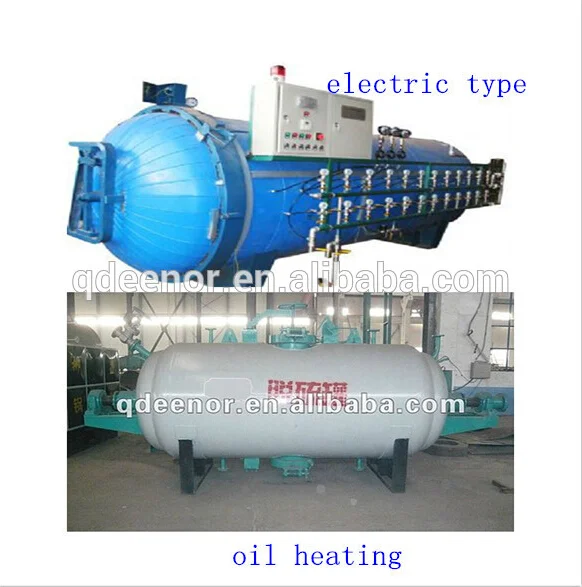

Dynamic desulfurization tank |
Model specifications |
DTG-Φ1400x3400A |
Tank diameter (mm) |
1400 |
Working length tank (mm) |
3400 |
Tank working pressure (Mpa) |
2.2 |
Operating temperature (° C) |
230 |
Heating medium |
Superheated steam |
Main pressure parts materials |
16MnR |
Vessel Type |
MR-II |
Mixing shaft speed (r / min) |
11 |
Main motor power (kw) |
18.5 |
Heating method |
Heating oil |

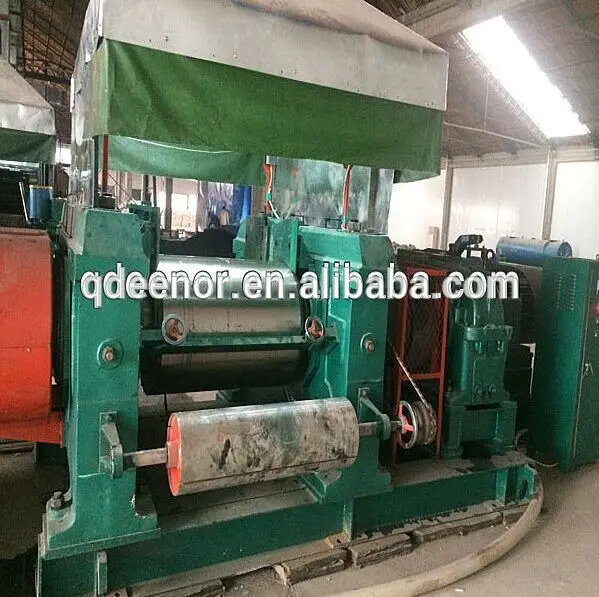

Open mixing mill:
Type |
XK450 open mixing mill |
|
Working diameter of rolls |
mm |
450 |
Working length of rolls |
mm |
1200 |
Front roll surface speed |
M/min |
24.26 |
Friction ratio |
1:1.27 |
|
Max.nip |
mm |
15 |
Capacity per.batch |
kg |
25-50 |
Motor power |
kw |
55 |

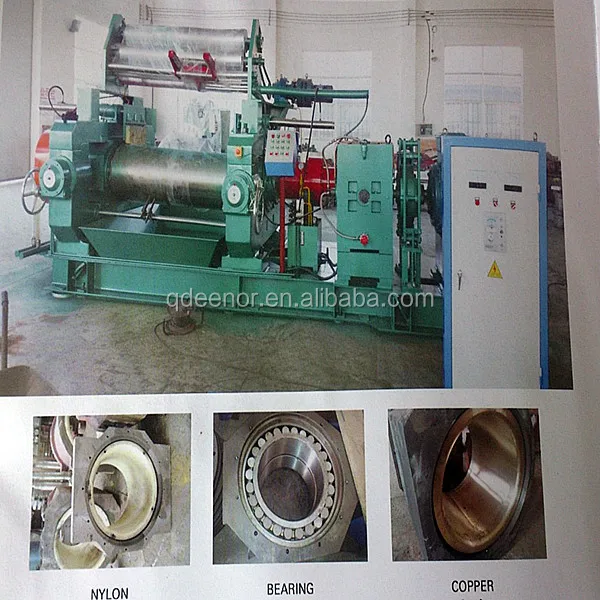

Notes |
Nylon bushing |
|

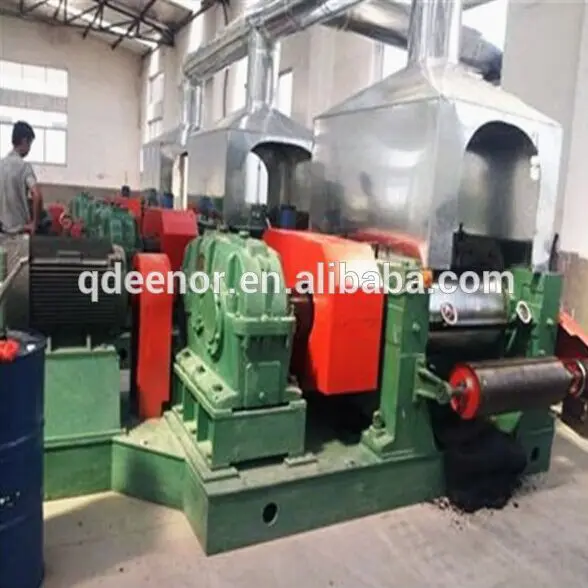

Rubber Refiner / Pre-refiner:
(collect the waste air,reduce pollution)
Type |
XKJ-400 |
XKJ-480 |
Working diameter of front rollers(mm) |
Φ 400(Drum) |
Φ 480(Drum) |
Working diameter of rear rollers(mm) |
Φ 480(Drum) |
Φ 612(Drum) |
Working length of rollers(mm) |
650 |
800 |
Working linear speed of front rollers(m/min) |
18.3 |
26.6 |
Friction ratio of front and rear rollers |
1: 1.8 |
1: 1.75 |
Capacity(kg) |
300 |
500 |
Power(kw) |
55 |
75 |
Overall size L× W× H(mm) |
4750 × 2300× 1835 |
5500× 2500× 1900 |
Weight(kg) |
7500 |
15000 |
Notes |
Nylon bush use grease for lubricating, Copper bush and bearing use grease or oil |
|

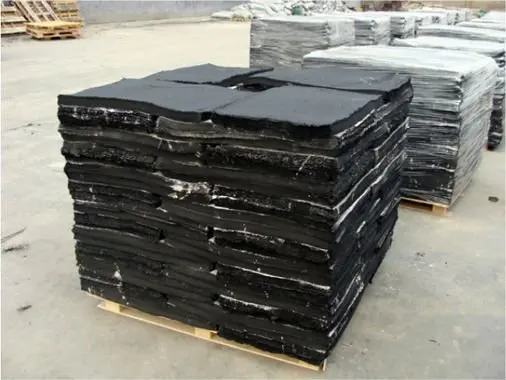

Final reclaimed rubber:

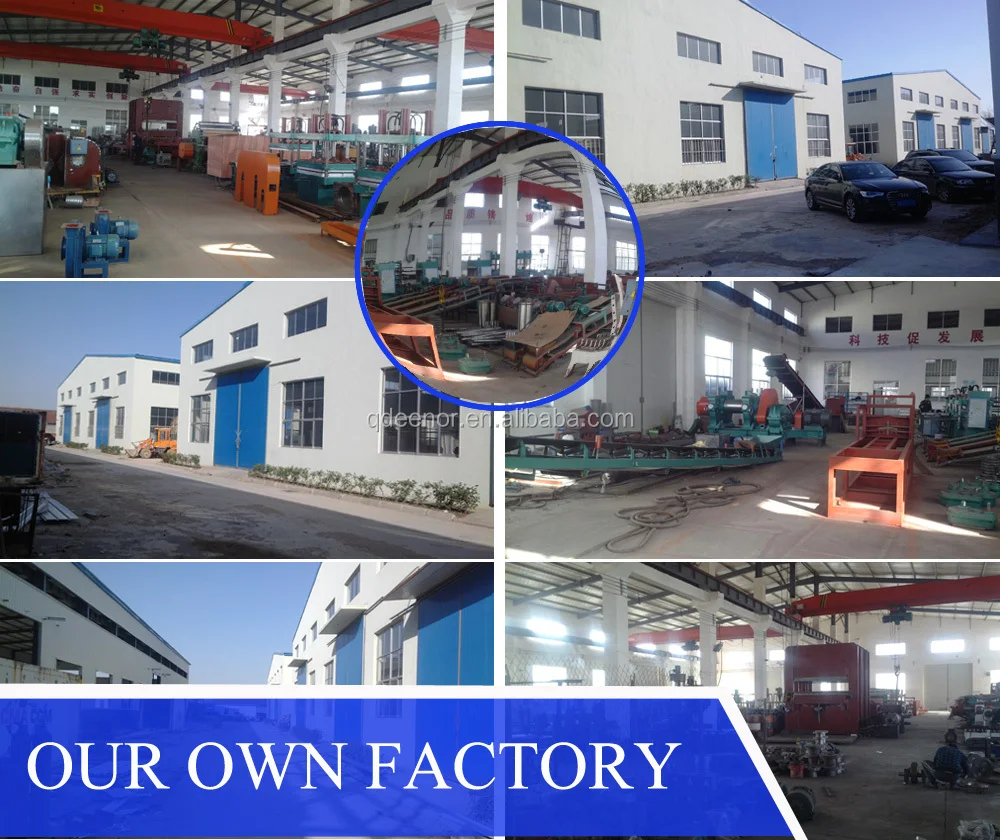

Our factory:
Service:
Guarantee & After-sale service:
♥One year guarantee for whole machines
♥24 hours technical support by email
♥Calling or door - to -door service.
♥Provide videos for each machine.
Warmly welcome our factory to visit,if you are interested,please dont
hesitate to contact me or leave an inquiry!
