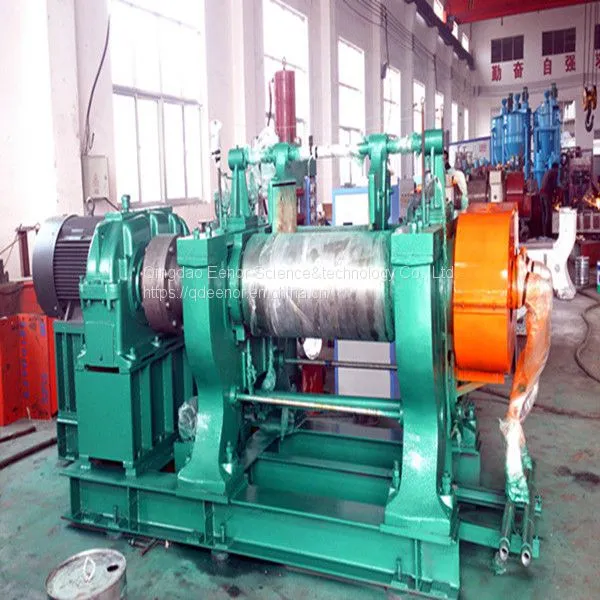

open two roll mixing mill machine for sale
USE:
This machine is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing(plasticating),Raw Rubber and Compound mixing,rubber warm-up mixing and pressing sheet.
Main features:

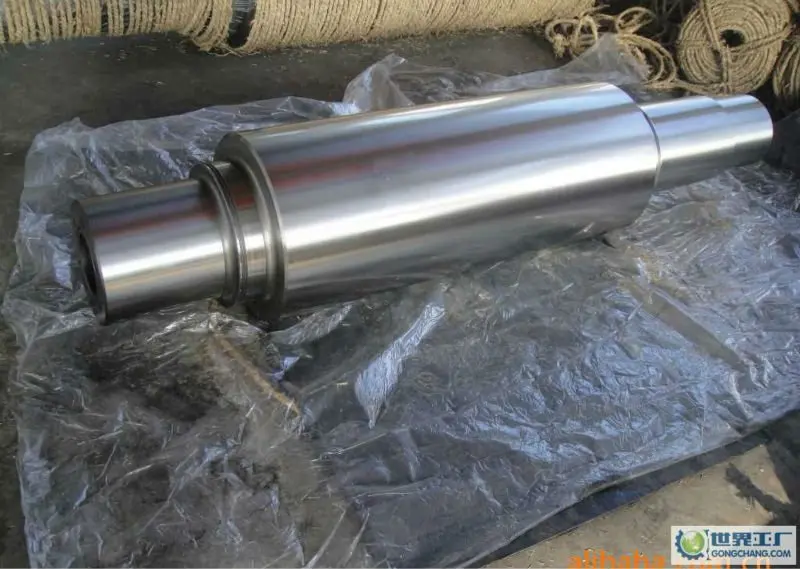

1) The roll adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof. The internal cavity is processed to make temperature well proportioned on the roll surface.
2) The machine is equipped with an overload protection device to prevent the main components from being damaged.
3) The machine is also equipped with an emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable.
4) The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.
5) The base frame is a whole framework, which is convenient for installation.
6) Stock bender for direct rubber sheet and knife to cut as your need to assemble.
7) Auto-lubrication sysytem for greese or oil and match bearing bush.
8) we have CE ,SGS,ISO 9001 certification.
Technical parameters:
Type |
Xk-160 |
Xk-250 |
Xk-300 |
Xk-400 |
Xk-450 |
Xk-560 |
Xk-660 |
Working diameter of rolls(mm) |
160 |
250 |
300 |
400 |
450 |
560 |
660 |
Working length of rolls(mm) |
320 |
620 |
750 |
1000 |
1200 |
1530 |
2130 |
Front roll surface speed(m/min) |
8.95 |
14.1 |
15.1 |
18.65 |
24.26 |
27.72 |
28.6 |
Friction ratio |
1:1.35 |
1:1.17 |
1:1.27 |
1:1.27 |
1:1.27 |
1:1.2 |
1:1.24 |
Max.nip(mm) |
4.5 |
8 |
8 |
10 |
15 |
15 |
15 |
Capacity per.batch(kg) |
1-2 |
8-15 |
15-20 |
18-35 |
25-50 |
35-50 |
165 |
|
Motor power (kw) |
5.5 |
18.5 |
22 |
37 |
55 |
90 |
245 |
Overall dimension(mm |
1380*860 *1320 |
3400*1500 *1800 |
3580*1550 *1695 |
4350*1850 *1785 |
5200*2380 *1840 |
5845*2284 *1978 |
7465*3662 *2080 |

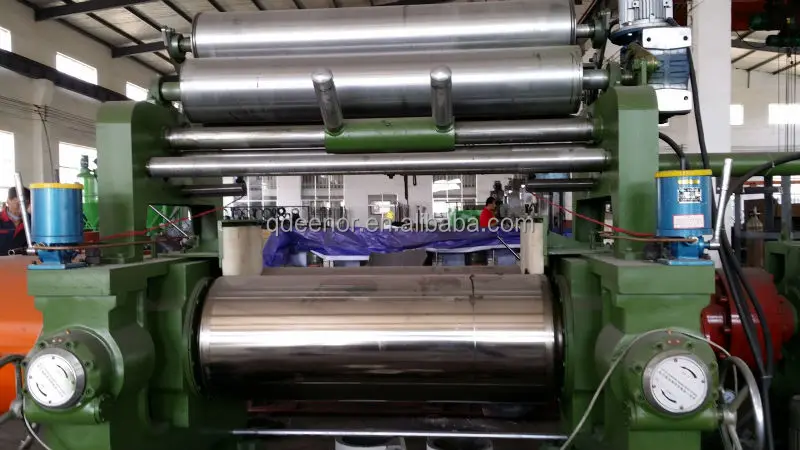

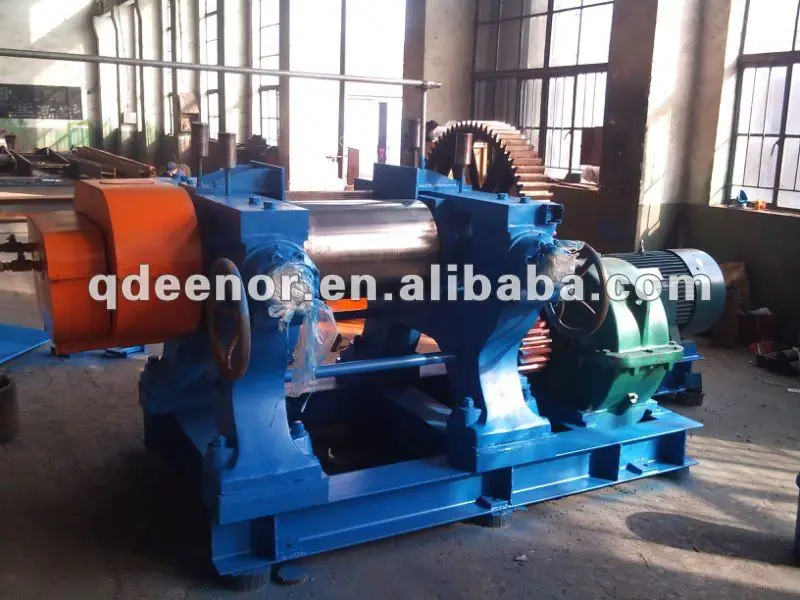

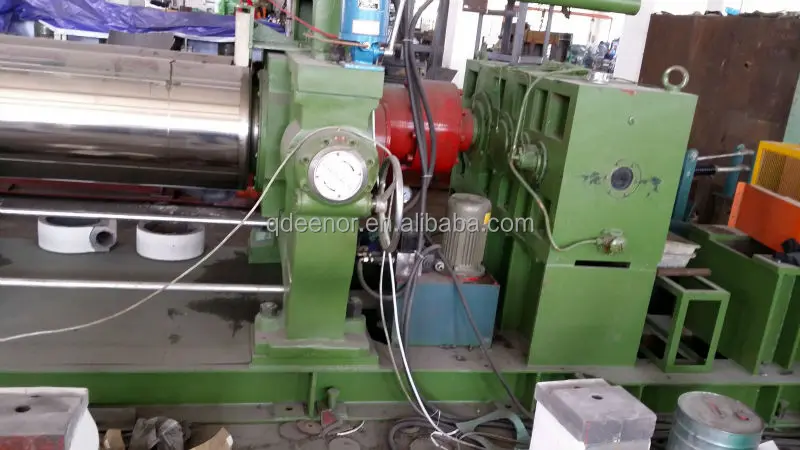

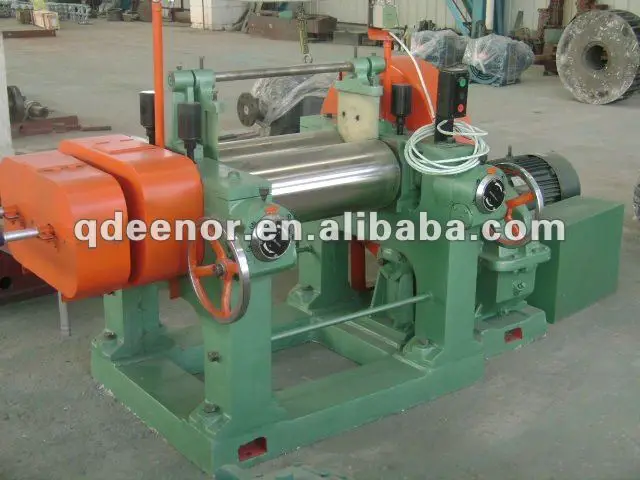

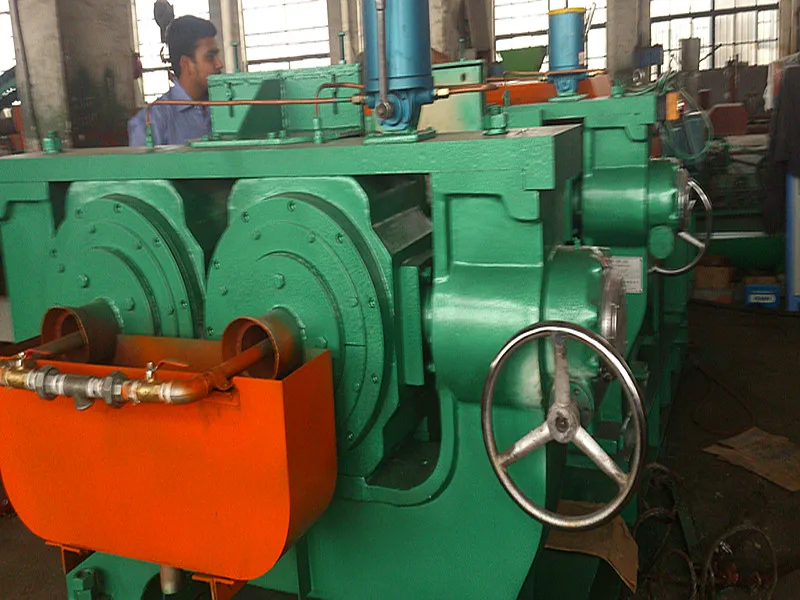

Pictures:

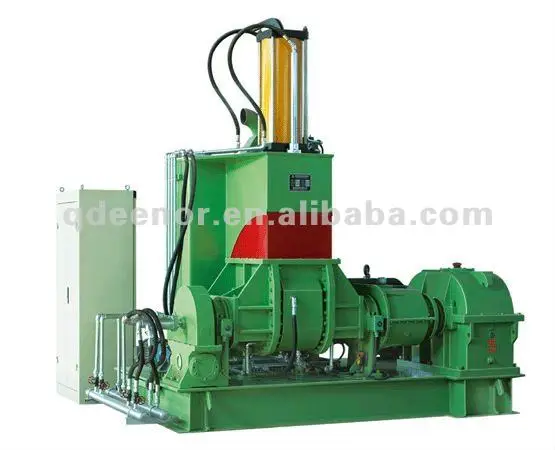

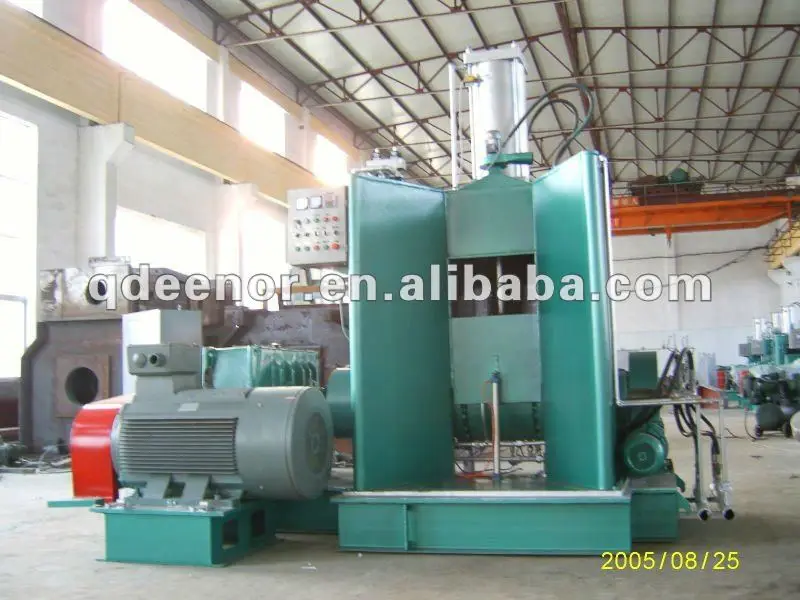

Other production:
We are professional rubber machine manufacturer with 10 years experiences in China. All products have been certified by the State Bureau of Technical Supervision, and have been exported to South Asia, mid East, East Europe, South and North America Africa, Australia and so on.
FAQ:
1.Q:Are you a factory or trading company?
A:We are factory.
2.Q:Where is your factory?How can i visit ?
A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our
facotry to visit.Warm welcome visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines passed CE,BV,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.
Why choose us?
We are ready to give them a turnkey solution, by designing the line according to their space, designing all
electrical Installation, water installation, civil foundation, training their people and proving that they will
get the targets for production according to the design.
The cost of the machinery they are paying is one off but the correct production design and machine
configuration in order to get the production targets is the most important point. Even if somebody got the cheapest machine quotation, at the end of the day, what is count are the production quantity, quality and
the durability of the machines so to cover the investment in the correct time.
A satisfies customer can bring you ten more customers but one disappointed customer can send away one
hundred customers. Reputation in the market is the most important factor for keeping business healthy
and in growing line.
Guarantee & After-sale service:
♥One year guarantee for whole machines
♥24 hours technical support by email
♥Calling or door - to -door service.
♥Provide videos for each machine.
