high quality waste tyre recycling plant machine line
1.Ring cutter
This machine mian to cut the inner dimater of the tyre, and cut the side of the tyre to the next step of segmentation.
Productivity |
Powder |
Adapt Tire |
Dimensions |
Weight |
40-60Piece/h |
3KW |
650-1200mm |
1600*900*1500 |
500kg |
2. Loop machine
steel ring seperator by double cell extrusion, and the two grooved roller speed differential will ring in the mouth than the wire separation, maintaining good physicalproperties of steel wire, rubber can then use it to avoid environmental pollution.
trips cutting machine can cut cycle machine to remove the wire tire sidewall cut into strips, and the width of the adjustable section. Two circular knives for specialmaterials, hard and durable, can be used repeatedly grinding for no more than 1200 steel tires.
3.strip cutter
Productivity |
Powder |
Output Size |
Dimensions |
Weight |
1000kg/h |
7.5KW |
About 3.5mm |
1000*900*1150 |
800kg |
4.block cutter
Cutting machine can cut a tire strip, cut block, tool for the alloy cutting tools, nearly 9-11 tons per day, cutting tools are not sharp and repeated grinding.
Productivity |
Powder |
Blade Roating Speed |
Dimensions |
Weight |
60pcs/h |
11KW |
About 3.5mm |
1500*900*1300 |
1100kg |

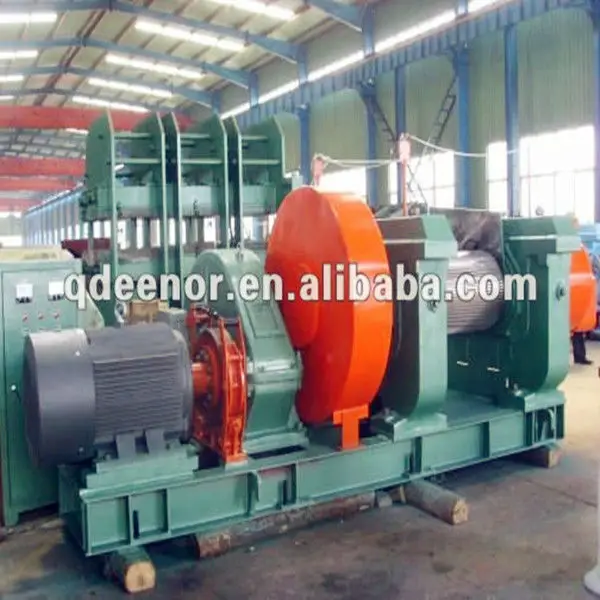

5.Tire Crusher machine:
Type&Specification |
XKP-400 |
XKP-450 |
XKP-560 |
Feeding size |
3.5CM |
3.5CM |
3.5CM |
Discharging size |
10—30 mesh powder |
10--30 mesh powder |
10--30 mesh powder |
Rubber crusher throughput(kg/h) |
260-300kg/h |
350-400kg/h |
400-500kg/h |
Motor power(kw) |
45 |
60 |
75 |
Outside measurement(m) |
4.1×1.8×1.9 |
4.4×1.9×1.9 |
5.5×2.2×2.1 |
Weight(t) |
7.5 |
11 |
19 |

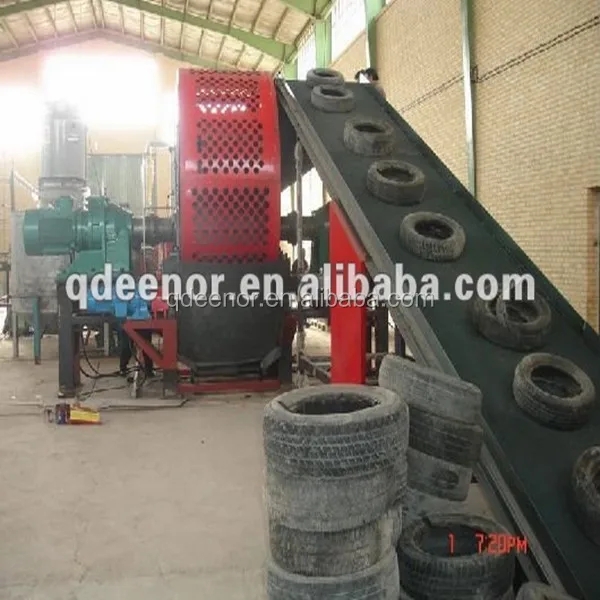

7.Whole Process line showing:
No |
Name |
model |
quantity |
Power |
||
whole tire pre-processing , you will get |
||||||
1 |
Ring cutter |
QQJ-1200 |
1 |
5.5KW |
||
2 |
Loop machine |
YQJ-295 |
1 |
15KW |
||
3 |
Strip cutter |
QTJ-370 |
1 |
5.5 KW |
. |
|
4 |
Block cutter |
QKJ-200 |
1 |
11 KW |
||
|

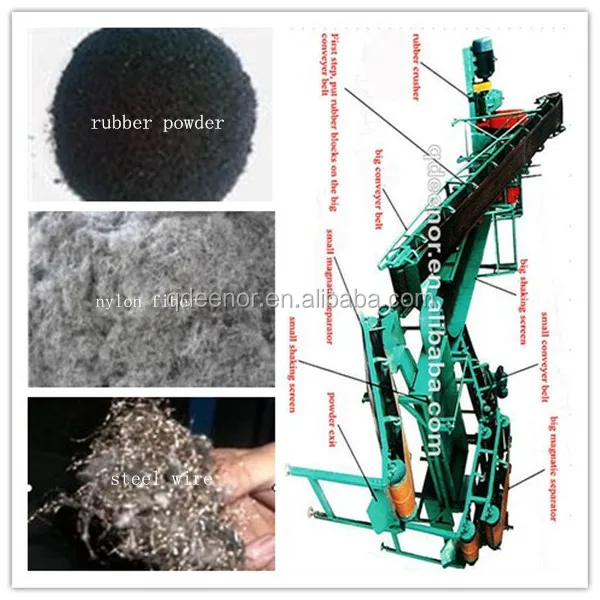

Rubber powder processing: you will get 2030 mesh rubber powder,at the same time, separate the fiber and steel wire | ||||||
5 |
Tyre crusher |
XK560 |
1 |
75 KW |
||
6 |
Big conveyor equipment |
BCL-8 |
1 |
2 KW |
. |
|
7 |
Small conveyor equipment |
BCL-3 |
1 |
1.1 KW |
||
8 |
Big Magnet separator |
BMS22 |
1 |
2.2 KW |
||
9 |
Small Magnet separator |
SMS-1 |
1 |
1.1 KW |
||
10 |
Big Shaking screen |
BSS-8 |
1 |
7.5 KW |
||
11 |
Small Shaking screen |
SSS-3 |
1 |
3 KW |
||
Total |
11 sets |
128.9KW |
||||
8Output analysing:
1).XKP400 rubber crusher:
Output: 4500-6000kg/24 hour for about 20 mesh granule.
2).XKP450 rubber crusher:
Output :7000-12000kg/24 hour for about 20 mesh granule.
3).XKP560 rubber crusher:
Output : 10000-17000kg/24 hour for about 20 mesh granule.
4)XKP560B rubber crusher:
Output: 16000-20000 kg/24 hour for about 20 mesh granule

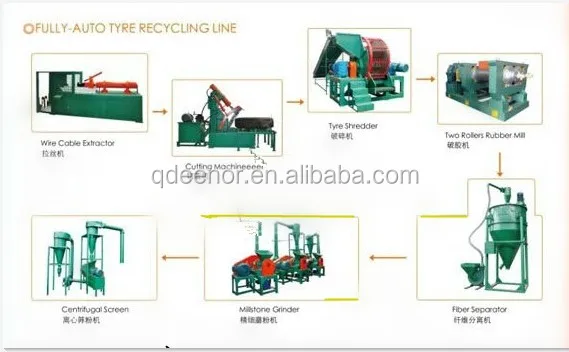

9.Whole processing line(semi-automatic & automatic type:
Model |
TS-900 |
TS-1200 |
Production capacity |
0.8-2ton/h |
1.5-3ton/h |
Size of feeding |
≤900mm whole tyre |
≤1200mm whole tyre |
Specification of the slice |
≤50*50mm |
≤50*50mm |
Motor power |
74kw(37*2) |
150kw(75*2) |
Cutter rotate speed |
16r/min |
31r/min |
Screener rotate speed |
6r/min |
8r/min |

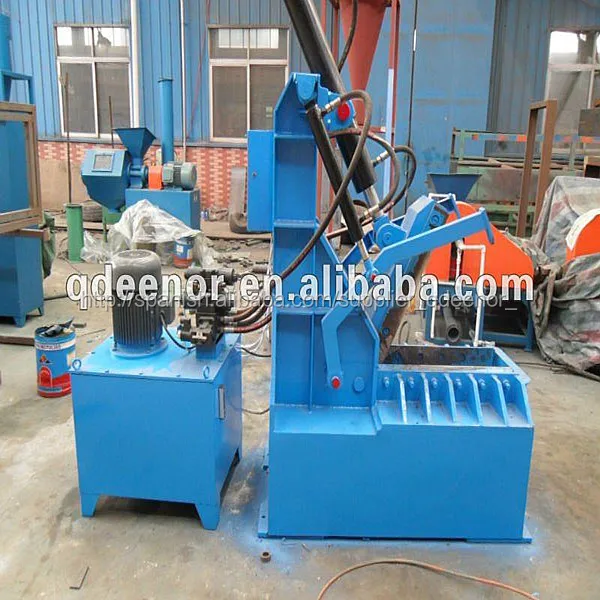

Tyre cutter machine:
10.Different uses of final rubber powder:
5-10 mesh |
runway, the school playground, garden trails, bowling alleys, sidewalks, composite rubber floor tile, anti-static floor tiles, artificial lawns, playgrounds, artificial turf soccer pitches, sports venues and entertainment markets kindergarten tennis and basketball courts.
|
10-20 mesh |
rubber tiles, plastic-rubber runway, lawn quartz sand grain leather cottonseed meal, tennis courts, volleyball courts, golf courses, aircraft, stadium, basketball courts and recreation fields, EPDM safety mats, gym mats, all kinds of stadium floor mattress.
|
30 mesh |
30 mesh: plastic insulation material, waterproof materials, earthquake, gaskets, roof and wall waterproofing membrane, modified bitumen additives, reclaimed rubber, livestock, straw, fender, multi-purpose pad, stables pad. |

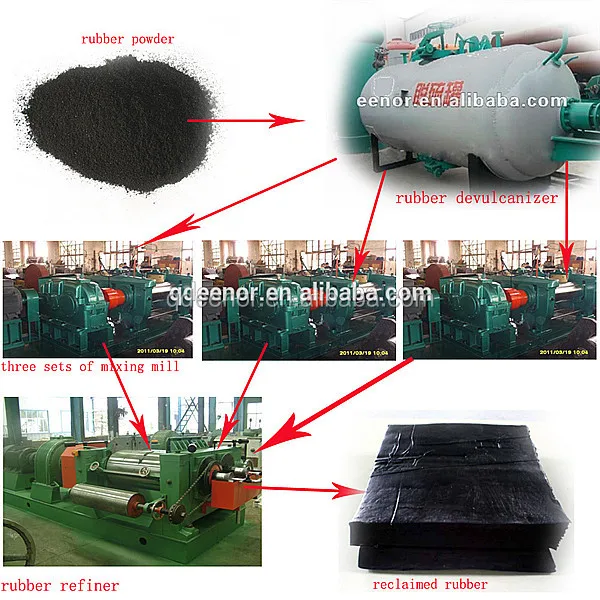

11.Reclaimed rubber line & Rubber tile production line:

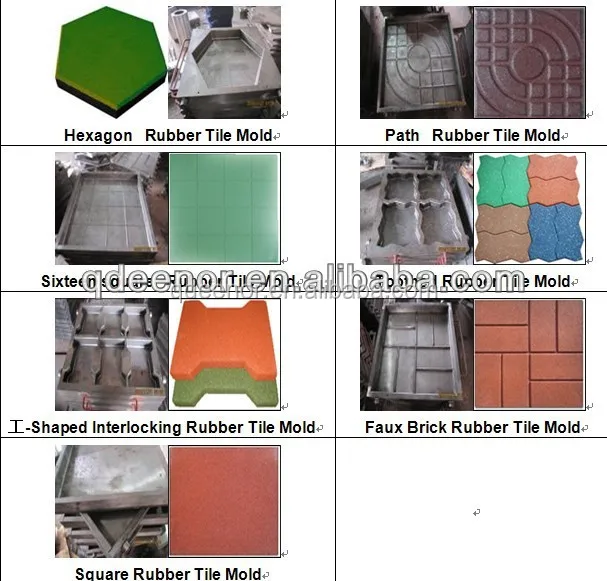

Rubber Tile:

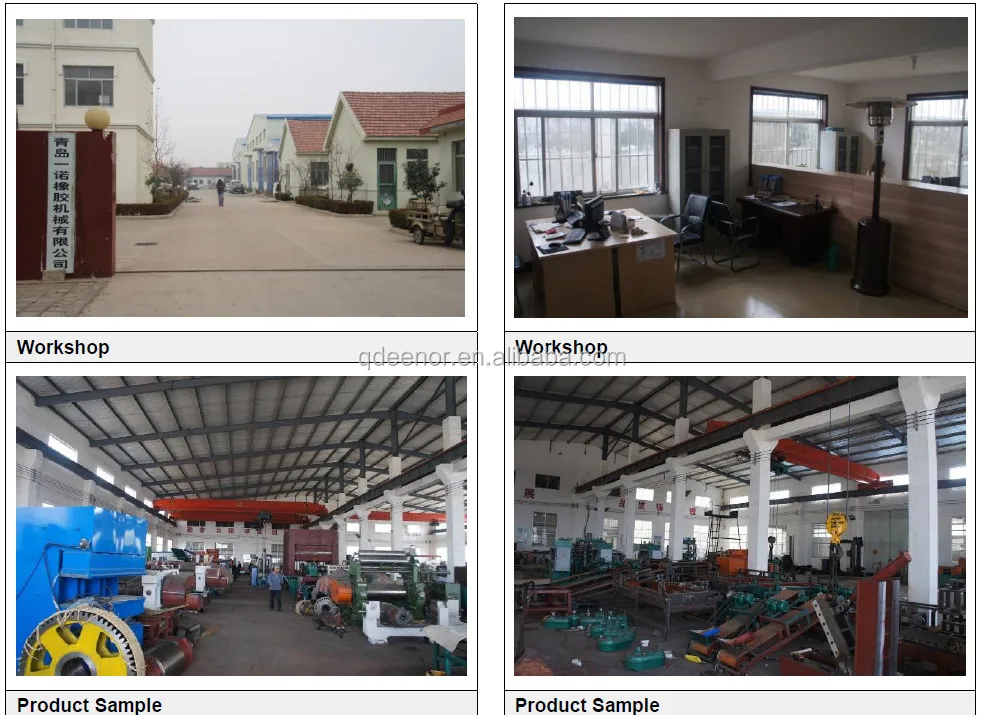

12Our workshop:

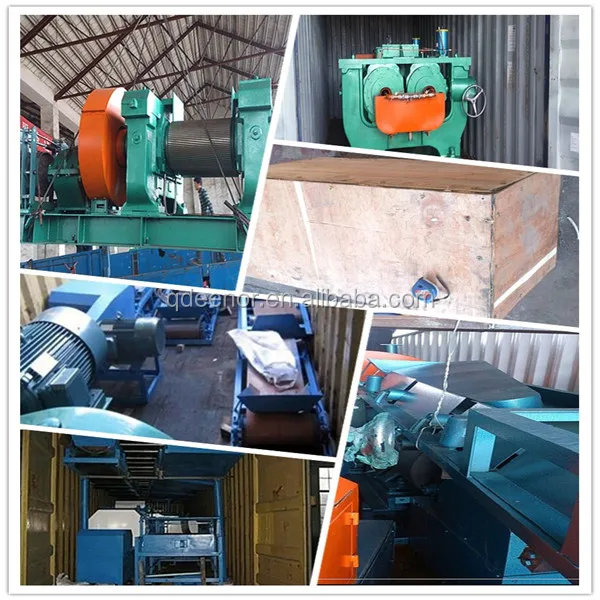

13.Machines load in container:
14.Exhibition & certification:
Guarantee & After-sale service:
♥One year guarantee for whole machines
♥24 hours technical support by email
♥Calling or door - to -door service.
♥Provide videos for each machine.
Our philosophy: The honesty is the root, A promise is a promise.
Welcome to our factory to visit our producs!
