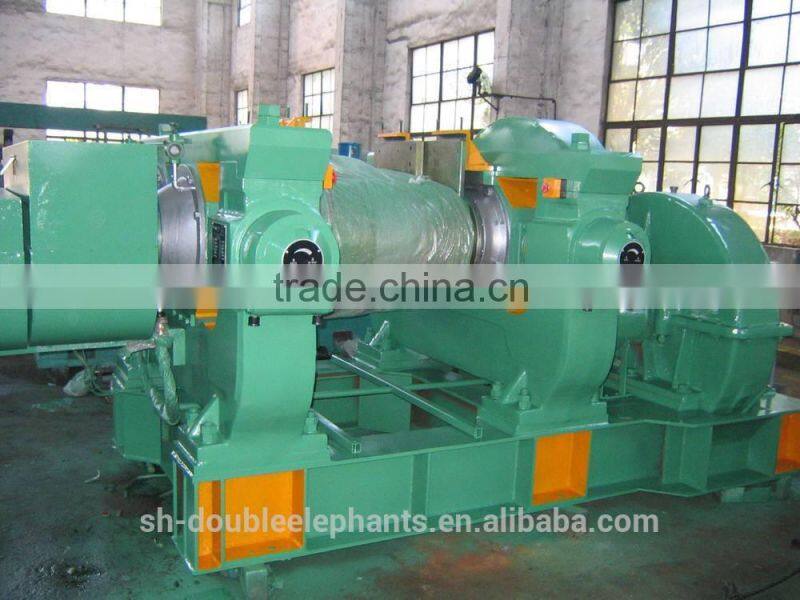

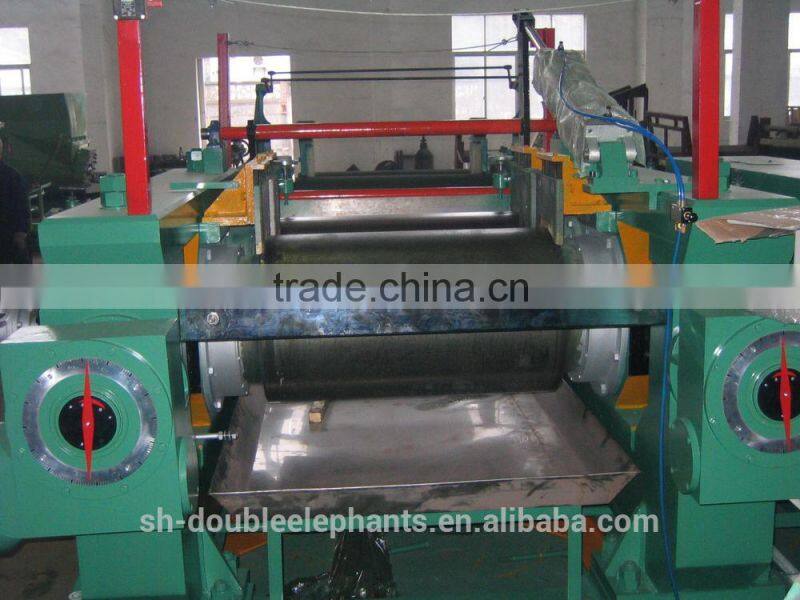

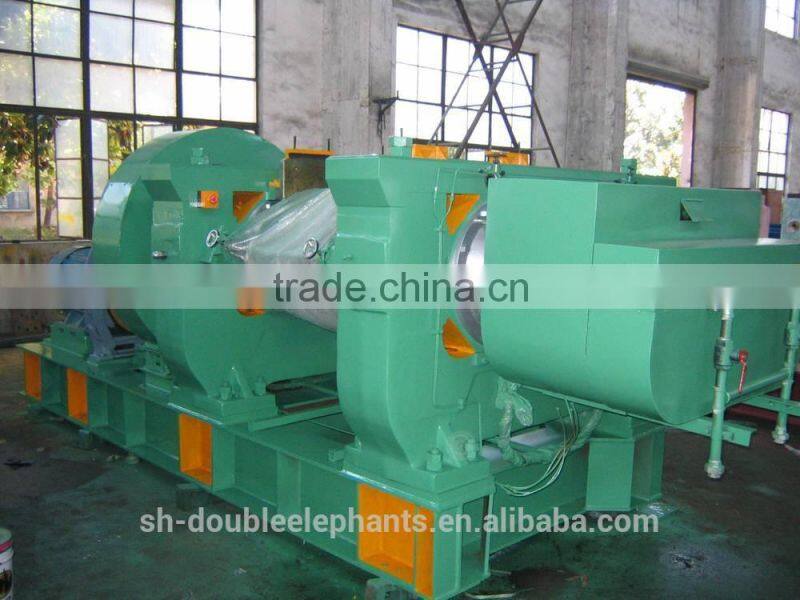

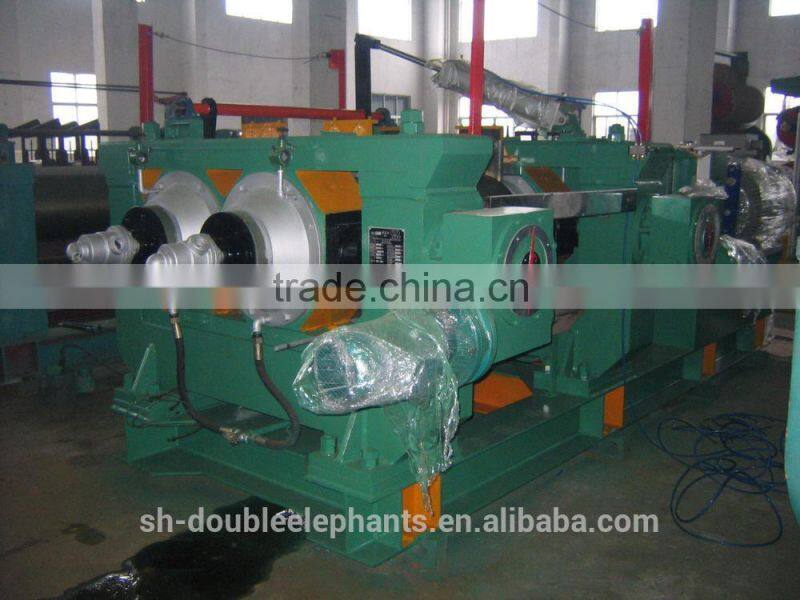

Help CenterRubber Refiner for Reclaimed Rubber Machine
Related Products
Rubber refiner machine,High quality rubber refiner,rubber mixing rolls refining
Use :
It is applicable for breaking scrap rubber and virgin rubber, or breaking scrap radial steel tires.
Features :
1.The roll is made of chilled case iron with vanadium and titanium alloys. The roll face is hard and anti-wear.(Or choose high grade steel with hard alloy welded on the surface.)The back roll is fluted. The internal cavity of the roll is processed to make temperature well proportioned on the roll surface.
2.It is equipped with an overload protection device to prevent the major components from being damaged due to the overloading.
3.It is equipped with an emergency device. When an emergent accident happens, just draw the safety pull-rod, and the machine will stop immediately. It's safe and reliable.
Specification/Type |
Roller dia.xLength |
Front roller liner speed(m/min) |
Speed ratio |
Capacity(kg/h) |
Motor power(KW) |
Overall dimension(LxWxH)(mm) |
Weight(t) |
XKJ400 |
400x500 |
24.5 |
1:1.7 |
200 |
45 |
3520x1710x185 0 |
7.7 |
XKJ450 |
450x600 |
25 |
1:1.7 |
230 |
55 |
4600x1920x1870 |
11 |
XKJ480 |
610/480x800 |
25.6 |
1:1.815 |
75 |
5610x2450x2000 |
19 |
|
XKF480 |
610/480x800 |
25.6 |
1:1.55 |
250 |
75 |
5610x2450x2000 |
19 |
COMPANY INFORMATION
Shanghai double elephants rubber and plastic machinery co., LTD., founded in 1994, specializing in the production and distribution group of companies affiliated factory production of rubber and plastic machinery, PVC film, artificial leather In addition, we also canaccording to user requirements design and manufacture non-standard equipment.We export to more than 40 countries and regions, deeply user high praise.
GUARANTEE & AFTER-SALE SERVICE
--One year guarantee for whole machine except tubes
--24 hours technical support by mail
--service station in your country, quick response
Rubber refiner machine,High quality rubber refiner,rubber mixing rolls refining
