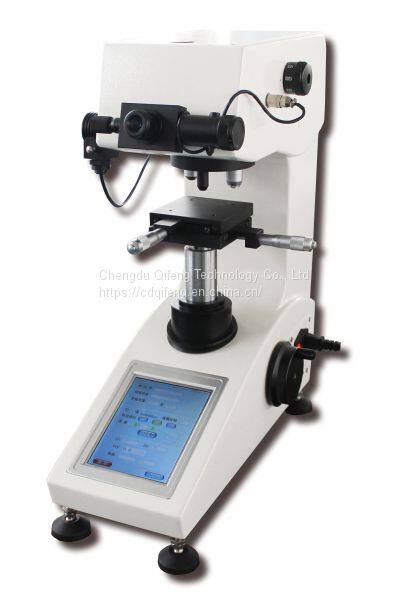

Micro Vickers Hardness Tester THV-1MDX

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Model Number:

THV-1MDX

Chengdu Qifeng Technology Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

chengdu

Delivery Detail:

3 days

Place of Origin China

Model Number THV-1MDX

Micro Vickers Hardness Tester THV-1MDX

Product Features：

(Touch Screen, Digital eyepiece, Built-in Printer, Auto-Turret)

1. The standard 8-speed force, from 10gf (0.098N) - 2kgf (19.6N), users can customize the test force;

2. 50X, 100X, 200X, 400X, 500X magnification optionally two kinds, up to 1000-fold;

3. Each indentation under magnification (any two lens) can be under significant number of measurements;

4. Based on the standard block different forces, the hardness value is automatically corrected;

5. The touch-screen interface, easy to operate, in any language version;

6. Enter, save more test samples and the operator and other information;

7. U disk data is saved directly to EXCEL format for easy editing and processing;

8. Using a modular design, easy maintenance;

9. External camera or upgrade to automatic hardness.

Application fields:

Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.

Technical Specifications：

Model	THV-1MDX
Test force	10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)
Standard Conformed to	GBT4340.1，GBT4340.2，ASTM_E92
Min measuring unit	0.031µm
Conversion Scale	HRA、HRB、HRC、HV、HK、HBW
Hardness measuring range	8~2900HV
method of testing force applied	Automatic (loading,Dwelling , unloading)
Turret Type	Automatic
Test microscope magnification	400X(Measuring)，100X（observation）（Optional 50X、200X 、500X，Maximum 1000X）
Test force dwell time	0~60s
X-Y test sets	Dimension：100100mm Maximum Movement：2525mm
Data output	Touch-screen display, USB disk save
Maximum specimen height	80mm
Distance from the center to the outer wall of the indenter	95mm
Power supply	AC220V+5%，50-60Hz
Dimensions	405290480mm
Net Weight	About 25Kg

Accessories (The Packing List)：

Item	Quantity	Item	Quantity
Axle weight	1	Weight	6
Cross test sets	1	10X eyepiece test	1
Vickers hardness block (high block, low block)	1 each	USB disk	1
Level	1	Plastic dust cover	1
Screwdriver	2	Adjusting screw	4pcs
Power line	1	Spare fuse (2A)	2pcs
Product Manual	1	Product certification	1
