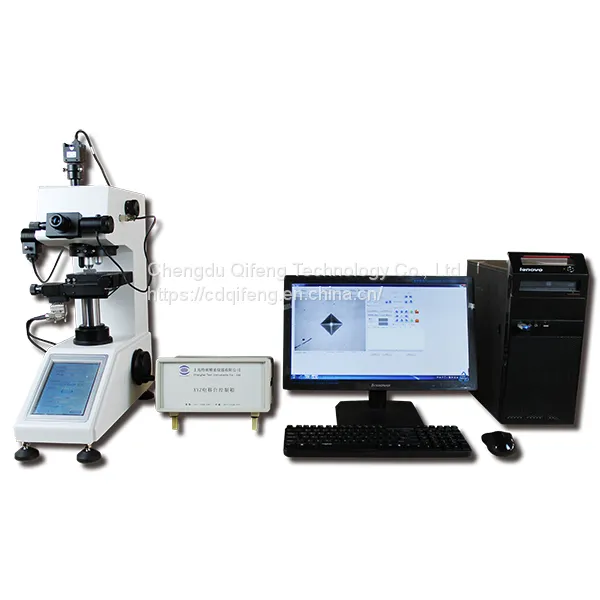

THVS-M-AXYZF Automatic Vickers Hardness Tester
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
THVS-M-AXYZF
Payment & Shipping
Payment Methods:
Port of Shipment:
chengdu
Delivery Detail:
3 days
Related Products
-
THV-1 Micro Vickers Hardness TesterNegotiableMOQ: 1 Piece -
HV-1De Digital Micro Knoop Vickers Hardness TesterUS$ 3000 - 5500MOQ: 1 Piece
-
Micro Vickers Hardness Tester THV-1MDXNegotiableMOQ: 1 Piece
-
THVS-1M-AXY Micro Automatic Vickers Hardness TesterNegotiableMOQ: 1 Piece
-
M-4XC Inverted Metallographic MicroscopeNegotiableMOQ: 1 Piece
Place of Origin
China
Model Number
THVS-M-AXYZF
THVS-M-AXYZF Automatic Vickers Hardness Tester
Product Features：
Basic Structure
Digital Micro Vickers Hardness Tester with Auto Turret THV-1MD
THVS-M-AXYZF Auto Control, Measurement & Data Image Processing System
Main Applications
THVS-1M-AXYZF is mainly used for testing the Micro Vickers hardness of various kinds of ferrous or some of non-ferrous materials, spare parts (machining parts, forging parts, casting parts, steel casting parts), heat-treated parts, as well as effective hardened layer depth, coating or welding parts’ hardness of heat-effected location. It can also be used for observation of metal parts internal metallographic structure, collection, display and output print of images.
It is especially for measuring the hardness gradient distribution curve of work-pieces.
Technical Specifications：
tem |
Automatic Micro Vickers Hardness Measuring Device THVS-M-AXYZF | |
| Micro Vickers Hardness Tester THV-1MD | ||
|
Vickers Hardness Tester |
Model | THV-1MD |
| Test Forces | 10,25,50,100,200,300,500,1000gf | |
| Carriage Control | Automatic Loading/Dwell/Unloading | |
| Focus | Manual | |
| Eyepiece | 10× | |
| Objective | 10×、40× | |
| Max. Measuring Length | 900um (100×), 230um (400×) | |
| Measuring Range | 1HV～2967HV | |
| Min. Graduation Value of Test Drum Wheel | 0.125μm、0.0625μm | |
| Precise Bench Vice | Max. Open Size：50mm | |
| Turret | Auto, Manual Objective—Indenter—Objective Auto Switch Rotation Auto Turret can provide rapid, easy operation array with no need of rotating turret by manual to realize the automatic switch of objective-indenter. The overlap accuracy error for center of objective and indenter is within 1μm, to ensure the accurate positioning of specimen indentation. Also, the center of objective can be adjustable and rotating the turret by manual is allowable. |
|
| Loading Speed | 50m/sec | |
| Dwell Time | 5-99sec | |
| Min. Measuring Unit | 0.01μm （Under 400×, Manual Measurement in the Eyepiece） | |
| Operation Panel Functions | Membrane keyboard with high integrated PC board, LCD screen to clear display all the operation procedures, measuring conditions and measuring data- Operation Start/Reset/Dwell Time/Light Increase-Reduce/Light Source Switch/Conversion Scale/Turret Rotation (Auto)/Data Delete, Display D1/D2 Value/HV-HK Indication/Hardness Value/HRC Conversion Value/Measuring Times etc. | |
| Specimen Stage | 150×150mm Manual X\Y Location with Digital Display Accuracy of 1μm |
|
| Ascending & Descending of Specimen Stage | By Manual | |
| Max. Height of Specimen | 90mm（Auto Stage: 80mm） | |
| Max. Width of Specimen | 110mm | |
| Parameters | HV / HK | |
| Communication Port | RS232C | |
| Data Output & Print | D1、D2、HV-HK Indication、Testing Force、Statistics etc.（Print after measurement or Print with measurement, single record or whole record print, three kinds of print style can be selectable. | |
| Optical Function | Flat field achromatic objective lens to make image more clearly, Field illumination can be adjustable, its illumination grades can be set from 0~9 of10kinds to meet different light requirements under different conditions |
|
| Light Source | 12V50W According to specimen brightness, the light source can be controlled by computer to automatic adjust it to meet the optimal illumination. |
|
| Accuracy Conforms to | JJG260-91、JIS B 7725、JIS B 7734、GB/T3430.2 -99 ASTM E-384、ISO 6507-2、ISO4546 |
|
| Hardness Value Conversion | Conforms to GB1172-99 & ASTM Standard |
|
| Dimensions (W×L×H) | 196 × 450 × 468mm | |
| Weight | Unit: 42kg（Including standard accessories） | |
| Power Supply | Single-phase 220V 50 Hz | |
| Automatic Control, Measurement & Data Image Processing System THVS-1M-AXYZF | ||
| CCD | 1,300,000 pixel | |
| Computer | Brand one with operation system of Windows XP | |
