Home > Products > ultrasonic hardness tester > portable Motorized digital ultrasonic hardness tester SU-300M
portable Motorized digital ultrasonic hardness tester SU-300M
- 50000 Piece / Pieces per Month
- chengdu
- T/T L/C Credit Card PayPal Other
- 3 days
- HST Pen type Portable Leeb rebound Metal Hardness Tester
- HST Pen Leeb Hardness Tester Digital high accuracy
- HS gem hardness tester pen With Wireless Printer Software Accuracy
- HST Portable Pen Type Mini Automatic Identification 7 Impact Device Leeb Hardness Tester with CE certificate
- HST Usb Charging Metal Portable High Precision Testing 180d Pen Richter Hardness Tester with high quality
- HST New design Leeb Pen Type Digital Portable Hardness Tester for wholesales
Product Details
Place of Origin: | China | Model Number: | SU-300M |
Product Description

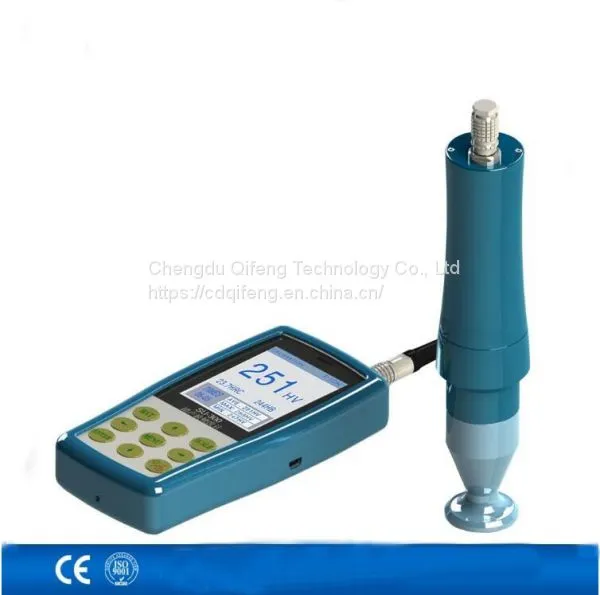

portable Motorized digital ultrasonic hardness tester SU-300M
Product Overview
Ultrasonic Hardness Tester SU-300M: It applies ultrasonic resistance method to do comparison measuring. It not only bears the international mainstream brand ultrasonic features such as: microscopic indentation, quick measurement and perfect accuracy, but also adopts the design of streamlined ergonomics and high-definition color LCD screen as terminal display, which makes the man-machine interface more friendly and more easy for non professional operators. Sinowon as one of the the world's handful of ultrasonic hardness tester manufacturers, has been devoted to making measurement more accurate and uncomplicated.
Instrument Features:
● Perfect Accuracy——±3% HV, ±1.5HR, ±3%HB.
● Microscopic Indentation—— Only high-power microscope can observe the indentation.
● Quick Measurement——Result in 2 seconds.
● Large LCD Display——Directly display measurement result, times count, maximum, minimal, average and deviation.
● Friendly Operation——Operate well after short training.
● Promised Warranty——2-Year warranty for main unit (Excludes Probe).
● Mass Storage——Save 1000 groups measurement data.
● Simple Calibration——Save 20 groups calibration data for invoking, improve calibration efficiency
Technical Specifications
Product Name | Ultrasonic Hardness Tester | ||||
Model | SU-300M | ||||
Code# | 882-141M | ||||
Optional Probe | Manual Probe:10N、20N、49N、98N?;Motorized Probe:3N、5N、8N、10N | ||||
Measuring Range (DIN) | HBS:100-500; HV:100-1500; HRC:20-68; HRB:55-100; HRA:37-85; Mpa: 255-2180N/Mm | ||||
Measuring Accuracy(%) | |||||
Scales | ﹤250HV | 250~500HV | 500~800Hv | ﹥800HV | |
HV0.1 | 6 | 7 | 8 | 9 | |
HV0.3 | 6 | 7 | 8 | 9 | |
HV0.8 | 5 | 5 | 6 | 7 | |
HV1 | 5 | 5 | 6 | 7 | |
HV5 | 5 | 5 | 5 | 5 | |
HV10 | 5 | 5 | 5 | 5 | |
Hardness Scales | Vickers(HV);Rockwell C(HRC); Rockwell A(HRA); RockwellB(HRB);Brinell(HB) | ||||
LCD | Color Screen | ||||
Data Display | LCD Backlight, Adjustable | ||||
Language | Chinese, English, German, Portugese, Turkish | ||||
Data Output | RS232 Hyper Terminal/Bluetooth Printer | ||||
Bluetooth | |||||
Data Storage | To Save 1000-Groups Of Measuring Data And 20-Groups Of Calibration Data | ||||
Word Input | Letters And Numerals | ||||
Working Environment | Temperature: -10°C To 50°C; Humidity :30%-80% R.H. | ||||
Battery Voltage | Rechargeable Lithium Battery; Voltage :4.2V, 4800mAh | ||||
Recharger Voltage | AC220V/50Hz,110V/60Hz | ||||
Main Unit Dimension And Weight | Main Unit Dimension :160 X 80 X 30mm (L X W X H);Manual Probe:Φ22×153mm; Weight(No Probe):0.5Kg | ||||
Packing Dimension And Weight | Packing Dimension 320 X 430 X 155mm (L X W X H); Packing Weight (Standard Delivery)4.3Kg |
Standard Delivery:
Product Name | Code # | Product Name | Code # | Product Name | Code # |
Instrument Main Body | 882-141M | 10N?Motorized Probe | 882-251 | Anti Vibration Case | 882-901 |
Standard Rockwell?Block | 882-641 | Probe Cable | 882-801 | Screw | 882-951 |
USB Recharger | 882-851 | COM Cable | 882-810 | Operation Manual | SU-300M |
Qualification Certificate | SU-300M | Packing List | SU-300M | Warranty Card | SU-300M |
