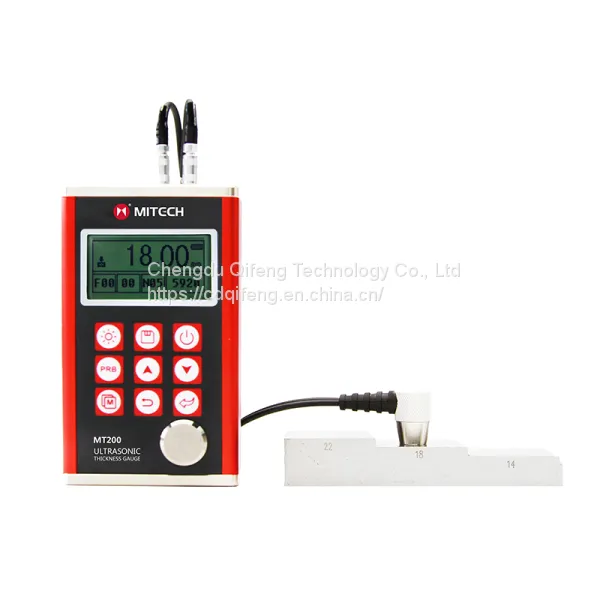

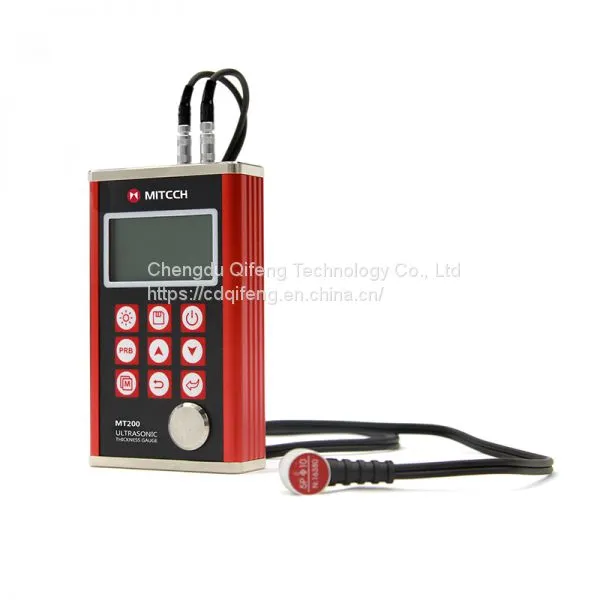

MT200 Digital Ultrasonic Thickness gauge
Product Overview
The model MT200 is a digital ultrasonic thickness gauge. Based on the ultrasonic principle , the instrument is capable of measuring the thickness of various materials, such as metal, plastics, ceramic, glass and many other good ultrasonic conductors. It can also measure the velocity of all kinds of materials. Compared with the traditional measurement methods, the advantages of ultrasonic thickness gauge is exposed to one side of the workpiece to complete the measurement. Its unique non-destructive testing performance provide the perfect solution for the thickness testing of closed pipes, containers, etc. It is widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields because of monitoring corrosion thinning degree of various pipes and pressure vessels.It can also be used for precise measurement of sheet metal and machined parts.
| Measuring Range | 0.75-300mm (Depends on probes) |
| Working Frequency | (2.5-7）MHZ |
| Probe Diameter | Standard N05 is10MM、Probe N07 is 6MM、Probe HT5 is12MM、Probe N02 is12MM |
| Min. Pipe Diameter | Φ15mm×2.0mm |
| Resolution | 0.1/0.01/0.001mm |
| Accuracy | ±（0.5%Thickness+0.04）mm,depends on probes |
| Display | 128×64 dot matrix LCD with EL backlight |
| Single /Scan Mode | Four measurements readings per second for single point measurement, and ten per second for Scan Mode |
| Probe Calibration | Zero Calibration, Two-Point Calibration |
| Velocity Range | 1000-9999m/s |
| Unit | Metric/Imperial unit selectable |
| Language | English |
| Memory | 100 files (up to 99 values for each file) of stored values |
| Communication Port | USB2.0 |
| Data Printing | Yes |
| Power supply | Two “AA” size, 1.5 Volt alkaline batteries |
| Lower Power Comsumption | Yes |
| Working Hours | 100h (EL backlight off). |
| Operating Temperature | -20℃-+60℃ |
| Relative Huminity | ≤90％ |
| Appearance | Extruded aluminum body |
| Outline | 132mm X 76mmX 32 mm |
| Gross Weight | 2.0KG |
| PC Datapro Software | Yes |
| Speech Function | No |
