Car Warning Mylar Outdoor Speaker Driver With RoHS

Car Warning Mylar Outdoor Speaker Driver With RoHS thumbnail-1
Car Warning Mylar Outdoor Speaker Driver With RoHS photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Kingwei
Place of Origin:
China
Model Number:
KW7015SA80410AL70C
Contact Supplier Request Quote Chat Now
Kingwei Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Kingwei
Place of Origin China
Model Number KW7015SA80410AL70C
Type Speaker

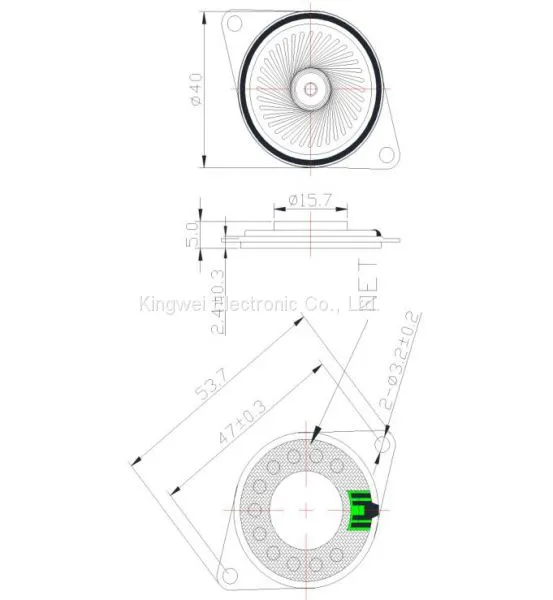

1. General

Out-Diameter 40mm
Height 5.0mm
Weight 10gr
Operating Temperature Range -30~+85ºC without loss of function
Store Temperature Range -30~+85ºC without loss of function



2. Electrical and Acoustic Characteristics


No

ITEM

SPECIFICATION

TEST CONDITION

1

Impedance

8Ω±15%

AT 2kHz

2

Resonance Frequency

500Hz±20%

AT Fo, 1.0V

3

Output Power

92±3dB

AT 0.8K,1K, 1.2K, 1.5K (Hz)

4

Freq Respones

Fo- 4.5KHz±20%

OUTRUTS.P.L±10dB

5

Input Power (NOM.)

1.0w (White noise with JIS filter) 1 minute, 10times at intervals of 2 minutes

6

Input Power (MAX.)

1.5w (White noise with JIS filter) 1 minute, 10times at intervals of 2 minutes

7

Audible Noise

Must be free audible noise (buzzes and rattles) (100Hz~5000 Hz frequency range, input level up to 2.83Vrms)

8

Magnet

Rare earth permanent (Nd-Fe-B) magnet φ12.5*1.5mm

9

Voice Coil

Diameter 13.4mm

10

Distoriton

10%Max

0.1W at 1KHz



3. Product Overview



4. FAQ

1）Is your parts new and original ?

Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .



2）What is your lead time ?

Answer: For in-stock product, we will send out after we receive your payment.



3) Can you provide samples?

Answer：Yes,we can provide 5 pcs free sample but you would bear the freight.



4) Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.
