10*3mm Helmet Small Mylar Speaker Unit With Internal Magnetic

10*3mm Helmet Small Mylar Speaker Unit With Internal Magnetic thumbnail-1
10*3mm Helmet Small Mylar Speaker Unit With Internal Magnetic photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Kingwei
Place of Origin:
China
Model Number:
KW1030SP1805AL10
Contact Supplier Request Quote Chat Now
Kingwei Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Kingwei
Place of Origin China
Model Number KW1030SP1805AL10
Type Speaker

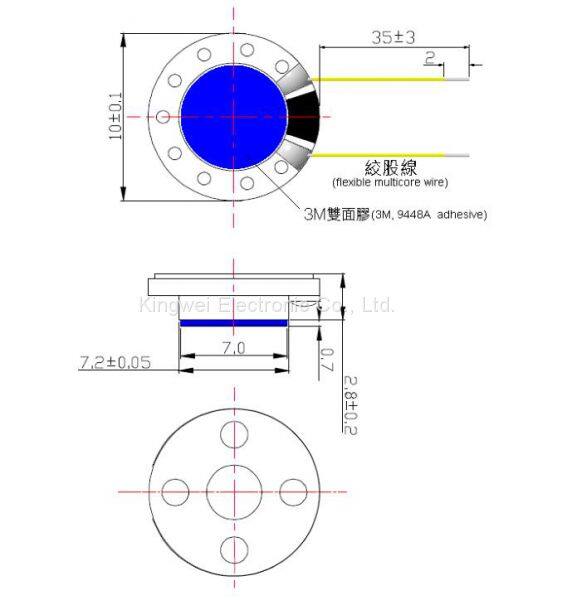

1. General

Out-Diameter 10mm
Height 3.0mm
Weight 1.8gr
Operating Temperature Range -20~+60ºC without loss of function
Store Temperature Range -30~+70ºC without loss of function



2.Electrical and Acoustic Characteristics
Test condition: 15~35ºC,25%~85%RH,860~1060mbar

No. ITEM SPECIFICATION TEST CONDITION
1 Voice Coil IMP 8Ω±15% AT 1KHz
2 V.C.Size φ5055mm
3 Output Power 124±3db AT 1KHz
4 Input Power Pated Power Input 0.5W Max Power Input 0.8W
5 Freq Respones Fo-1000Hz Outruts.P.L±10db
6 Frequency Rang 100-10KHz
7 Operation Must be normal Program/Sour 0.126v
8 Buzzes & Rattles Must be normal Sin Wav 0.126v
9 High Temp Test Must be normal 55ºC±2ºC 48 HOURS
10 Low Temp Test Must be normal -25ºC±2ºC 48 HOURS
11 Load Test Must be normal 0.25White Noise 48Hours
12 Humidit Test Must be normal 40ºC±2ºC 90~95%R.H 48 Hours
13 Distorition 10% Max 0.1W at 1KHz
14 FL.U.Densityst Gass
15 Magnef φ5*h0.8mm NdFeB

3. Product Overview


4. FAQ

1）Is your parts new and original ?

Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .



2）What is your lead time ?

Answer: For in-stock product, we will send out after we receive your payment.



3) Can you provide samples?

Answer：Yes,we can provide 5 pcs free sample but you would bear the freight.



4) Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.
