Home > Construction & Decoration > Acoustic Materials > Acoustic Wall Panel > Power Saving 14mm*7.5mm Self-drive Piezo Buzzer With 12VDC

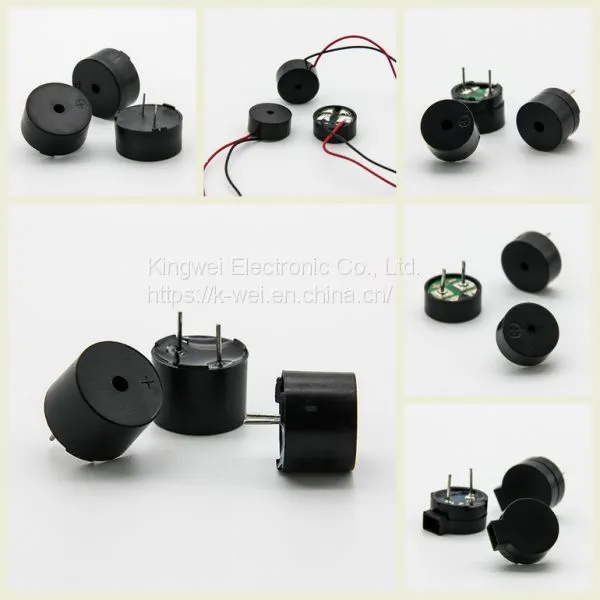

Power Saving 14mm*7.5mm Self-drive Piezo Buzzer With 12VDC
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Kingwei
Place of Origin:
China
Model Number:
KWI-1480
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
23mm 24v Buzzer 90dB 3500Hz Piezo Buzzer for Home ApplianceNegotiableMOQ: 100 Pieces -
RoHS Piezo Active Buzzer With Line for pc Printer Siren Electric ToyNegotiableMOQ: 100 Pieces
-
Passive 14mm 5V Buzzer 85dB 4000Hz Piezo Buzzer as Acoustic ComponentNegotiableMOQ: 100 Pieces
-
17mm External Drive Buzzer Mini Piezoelectric BuzzerNegotiableMOQ: 100 Pieces
-
Piezo Buzzer Manufacturer 3v 5v 9v 12v Piezo Electronic BuzzerNegotiableMOQ: 100 Pieces
Brand Name
Kingwei
Place of Origin
China
Model Number
KWI-1480
Type
Buzzer
1、General
| Out-Diameter | 14mm |
| Height | 7.5mm |
| Weight | 2.0g |
| Operating Temperature Range | -20~+125ºC without loss of function |
| Store Temperature Range | -30~+135ºC without loss of function |
2、Electrical and Acoustic Characteristics
Test condition: 15~35ºC, 25%~85% RH, 860~1060 mbar
| Items | Specification |
| Rated Voltage | 12VDC |
| Max. Allowable Voltage | 6~30VDC |
| Rated Current (Max) | 4mA at 4.0KHz/12VDC |
| Tone Nature | Continuous |
| Resonant Frequency | 4.0±0.5KHz |
| Min. Sound Pressure Level | 80db/12VDC/10cm |
| Case Material/Color | LCP(PPS)/Black |
3、Product Overview
4、FAQ
1）Is your parts new and original ?
Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .
2） What is your lead time ?
Answer: For in-stock product, we will send out after we receive your payment.
