36mm 8ohm 90dB Tablet PC Case Micro Mylar Speaker

Name: 36mm 8ohm 90dB Tablet PC Case Micro Mylar Speaker
Brand: Kingwei
Price: Negotiable

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Product Details

Brand Name:	Kingwei	Place of Origin:	China	Model Number:	KW3650SP83205A
Type:	Speaker

1. General

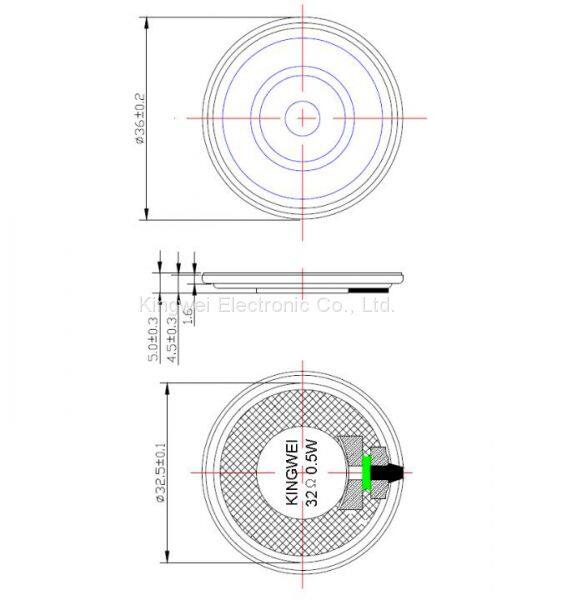

Out-Diameter	φ36.0mm
Height	5.0mm
Weight	7.3gr
Operating Temperature Range	-20~+60ºC without loss of function
Store Temperature Range	-30~+70ºC without loss of tunction

2. Electrical and Acoustic Characteristics
Test condition: 15~35ºC,25%~85%RH,860~1060mbar

No.	Item	Specification	Test Condition
1	Impedance	32Ω±15%	AT 1KHz, 1Vrms
2	DC Resistance	300Ω±15%
3	Output Power	90±3db	AT 1KHz/890mV
4	Freq Response	Fo- 500HZ±20%	OUTRUTS.P.L±10db
5	Input Power(Nom.)	0.5W(White noise with JIS filter) 1 minute, 10 times at intervals of 2 minutes
6	Input Power(Max.)	0.8W(White noise with JIS filter) 1 minute, 10 times at intervals of 2 minutes
7	Audible Noise	Must be free audible noise(buzzes and rattles) (100Hz~3000Hz frequency range, input level up to 2.83Vrms)
8	Distorition	10%Max
9	Weight	7.3g

3. Product Overview

4. FAQ

1）Is your parts new and original ?

Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .

2）What is your lead time ?

Answer: For in-stock product, we will send out after we receive your payment.

3) Can you provide samples?

Answer：Yes,we can provide 5 pcs free sample but you would bear the freight.

4) Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.
