Hot Sale Good Quality Mini Speaker Computer Speaker With Wire

Hot Sale Good Quality Mini Speaker Computer Speaker With Wire thumbnail-1
Hot Sale Good Quality Mini Speaker Computer Speaker With Wire photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Kingwei
Place of Origin:
China
Model Number:
KW1420SA805BLC
Contact Supplier Request Quote Chat Now
Kingwei Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Kingwei
Place of Origin China
Model Number KW1420SA805BLC
Type Speaker

1. General

Out-Diameter 14*30mm
Height 4.7mm
Weight 1.5gr
Operating Temperature Range -30~+70ºC without loss of function
Store Temperature Range -40~+85ºC without loss of tunction



2. Electrical and Acoustic Characteristics
Test condition: 15~35ºC,25%~85%RH,860~1060mbar

No

ITEM

SPECIFICATION

TEST CONDITION

1

Impedance

8Ω±15%

AT 2.0KHz,1v

2

Output Power

90±3db

AT 0.5W

3

Freq Respones

Fo -800HZ±20%

OUTRUTS.P.L±10db

4

Voice Coil

Diameter 8.4mm

5

Magnet

Rare earth permanent(Nd-Fe-B))Magnet φ7.5*1.0mm

6

Input Power(NOM.)

0.5W(White noise with JIS filter) 1 minute, 10 times at intervals of 2 minutes

7

Input Power(MAX.)

1.0W (White noise with JIS filter) 1 minute, 10 times at intervals of 2 minutes

8

Audible Noise

Must be free audible noise (buzzes and rattles)

(800Hz~12000Hz frequency range, input level up to 2.0Vrms)

9

Distoriton

Less than 5% at 1000Hz 0.5W

10

Buzz Rattle

Must be normal at since wave 2.0V

In 1cc closed box

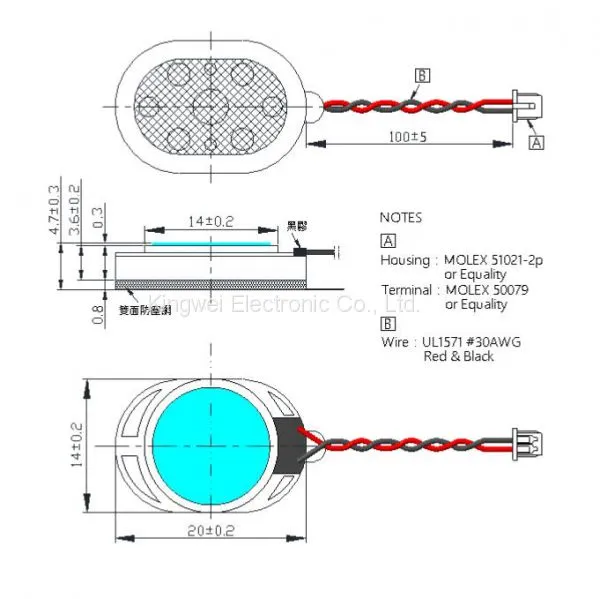

3. Product Overview


4. FAQ

1）Is your parts new and original ?

Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .



2）What is your lead time ?

Answer: For in-stock product, we will send out after we receive your payment.



3) Can you provide samples?

Answer：Yes,we can provide 5 pcs free sample but you would bear the freight.



4) Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.
