23mm Mylar Speaker for Toys Intercom/Doorbell

23mm Mylar Speaker for Toys Intercom/Doorbell thumbnail-1
23mm Mylar Speaker for Toys Intercom/Doorbell photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Kingwei
Place of Origin:
China
Model Number:
KW2847SA810A
Contact Supplier Request Quote Chat Now
Kingwei Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Kingwei
Place of Origin China
Model Number KW2847SA810A
Type Speaker

1. General

Out-Diameter φ23mm
Height 5.0mm
Weight 5.0gr
Operating Temperature Range -20~+60ºC without loss of function
Store Temperature Range -30~+70ºC without loss of tunction



2. Electrical and Acoustic Characteristics
Test condition: 15~35ºC,25%~85%RH,860~1060mbar

No

ITEM

SPECIFICATION

TEST CONDITION

1

Impedance

8Ω±15%

AT 1kHz

2

Output Power

95±3db

At AVE 1.0K, 2.0K, 3.0K, 5.0K (Hz)

3

Resonance Frequency

650Hz±20%

At Fo, 1V

4

Freq Respones

Fo- 5KHz±20%

OUTRUTS.P.L±10db

5

Input Power(NOM.)

1.0 W(White noise with JIS filter) 1 minute, 10 times at intervals of 2 minutes

6

Input Power(MAX.)

1.5W (White noise with JIS filter) 1 minute, 10 times at intervals of 2 minutes

7

Audible Noise

Must be free audible noise (buzzes and rattles)

(100Hz~3000Hz frequency range, input level up to 2.0Vrms)

8

Magnet

Rare earth permanent (Nd-Fe-B) magnet φ12.5*1.5mm

9

Voice Coil

Diameter 13.28mm

10

Distoriton

10%Max

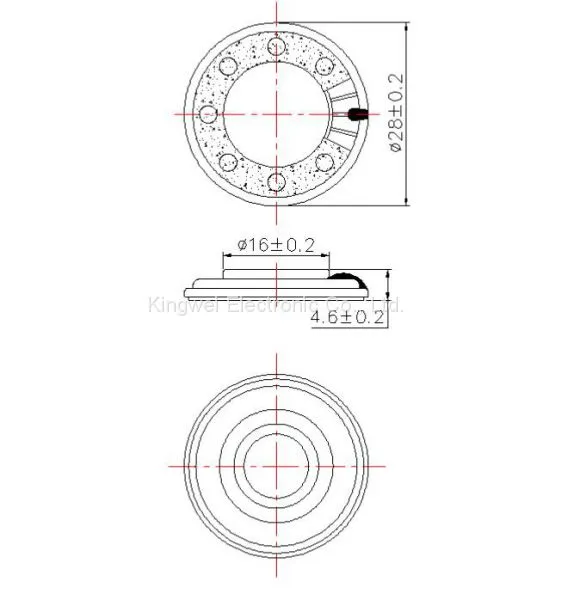

3. Product Overview


4. FAQ

1）Is your parts new and original ?

Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .



2）What is your lead time ?

Answer: For in-stock product, we will send out after we receive your payment.



3) Can you provide samples?

Answer：Yes,we can provide 5 pcs free sample but you would bear the freight.



4) Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.


Product Tags: Mylar Speaker , Toys Speaker , Doorbell Speaker
