Round Frame Common Speaker Mini Mylar Waterproof Speaker

Round Frame Common Speaker Mini Mylar Waterproof Speaker thumbnail-1
Round Frame Common Speaker Mini Mylar Waterproof Speaker photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Kingwei
Place of Origin:
China
Model Number:
KW5080SA820A-K8075
Contact Supplier Request Quote Chat Now
Kingwei Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Kingwei
Place of Origin China
Model Number KW5080SA820A-K8075
Type Speaker

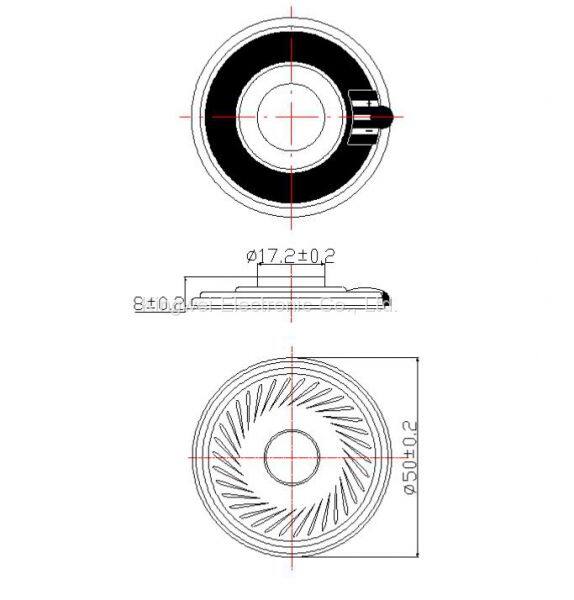

1. General

Out-Diameter 50mm
Height 8mm
Weight 12gr
Operating Temperature Range -20~+70ºC without loss of function
Store Temperature Range -30~+84ºC without loss of function



2. Electrical and Acoustic Characteristics

No

ITEM

SPECIFICATION

TEST CONDITION

1

Impedance

8Ω±15%

AT 2kHz

2

Output Power

95±3db

At 0.8K, 1K, 1.2K， 1.5K (Hz)

3

Resonance Frequency

300Hz±20%

At Fo, 1V

4

Freq Respones

Fo-10KHZ±20%

OUTRUTS.P.L±10db

5

Input Power(NOM.)

2.0 W(White noise with JIS filter) 1 minute, 10 times at intervals of 2 minutes

6

Input Power(MAX.)

2.5W (White noise with JIS filter) 1 minute, 10 times at intervals of 2 minutes

7

Audible Noise

Must be free audible noise (buzzes and rattles)

(100Hz~3000Hz frequency range, input level up to 2.0Vrms)

8

Magnet

Rare earth permanent (Nd-Fe-B) magnet φ12.5*1.5mm

9

Voice Coil

Diameter 13.28mm

10

Distoriton

10%Max

0.5W at 1KHz

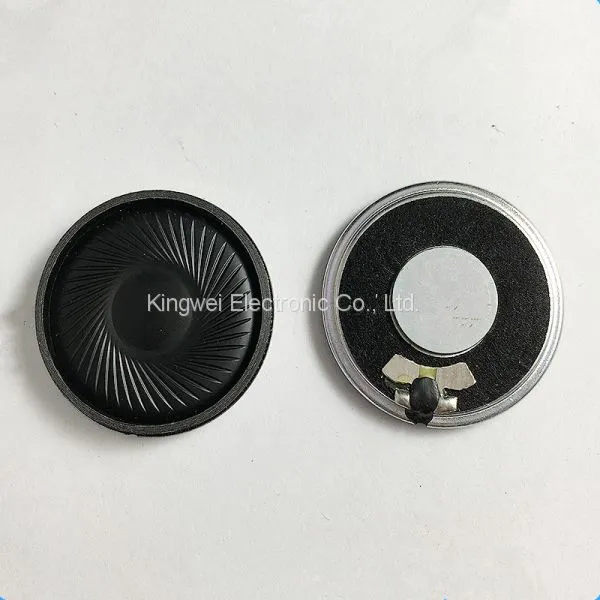

3. Product Overview


4. FAQ

1）Is your parts new and original ?

Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .



2）What is your lead time ?

Answer: For in-stock product, we will send out after we receive your payment.



3) Can you provide samples?

Answer：Yes,we can provide 5 pcs free sample but you would bear the freight.



4) Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.


Product Tags: Waterproof Speaker , Mylar Speaker , Common Speaker
