Kingwei Voice Transducer Piezo Ceramic Element
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Kingwei
Place of Origin:
China
Model Number:
KW20T60A06L40C
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Piezo Element Copper Piezo Element Ceramic Piezo ElementNegotiableMOQ: 100 Pieces -
35mm Piezo Ceramic Element 3.2kHz Piezoelectric DiaphragmNegotiableMOQ: 100 Pieces
-
Good Quality Balanced Voice Piezo Element Slice With Copper SheetNegotiableMOQ: 100 Pieces
-
High Quality Piezoelectric Material, Piezo Electric Transducer, Piezo Element Ceramic MaterialNegotiableMOQ: 100 Pieces
-
10*3mm Helmet Small Mylar Speaker Unit With Internal MagneticNegotiableMOQ: 100 Pieces
Brand Name
Kingwei
Place of Origin
China
Model Number
KW20T60A06L40C
Type
Buzzer

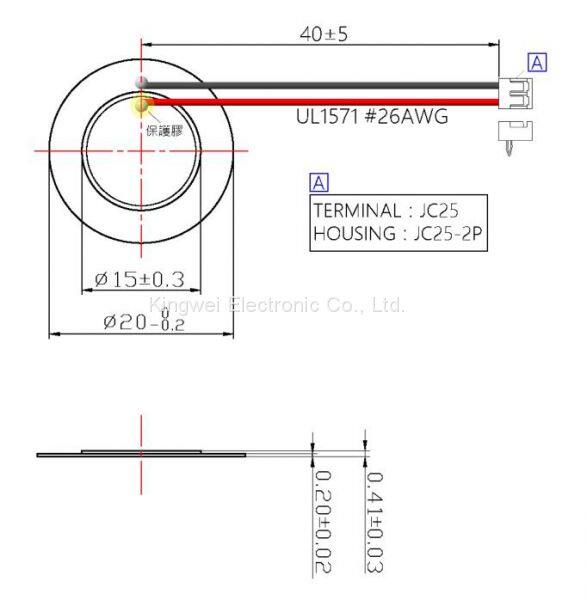

1. General
| Out-Diameter | φ20mm |
| Height | 0.41mm |
| Weight | 0.1g |
| Operating Temperature Range | -20~+70℃ without loss of function |
| Store Temperature Range | -30~+80℃ without loss of function |
2. Electrical and Acoustic Characteristics
Test condition: 15~35℃，25%~85%RH，860~1060mbar
| Items | Specifications | |
| 1 | Rated Voltage | 12Vp-p Square Wave |
| 2 | Operating Voltage | 30Vp-p Square Wave |
| 3 | Resonant Impedance | 500Ω/Max |
| 4 | Resonant Frequency | 6.0±0.5KHz |
| 5 | Capacitance at 100Hz | 15000pF±30% |
| 6 | Dielectric Loss | ≤5% |
| 7 | Insulation Resistance | ≥100（at 25V DC） |
3. Product Overview
4. FAQ
1）Is your parts new and original ?
Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .
2）What is your lead time ?
Answer: For in-stock product, we will send out after we receive your payment.
3) Can you provide samples?
Answer：Yes,we can provide 5 pcs free sample but you would bear the freight.
4) Do you support OEM and ODM services?
Yes, we can customize products according to the drawing.
