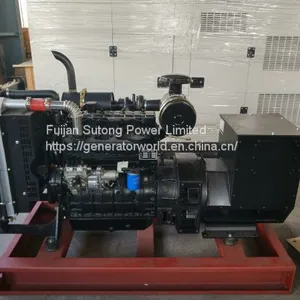

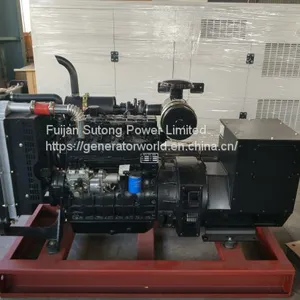

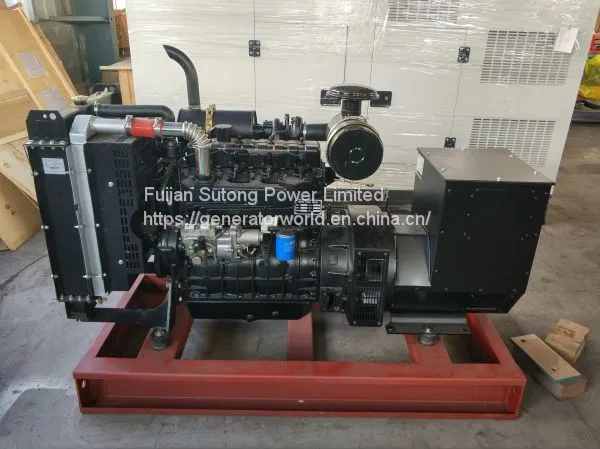

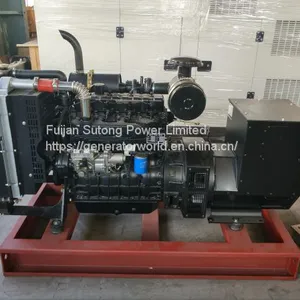

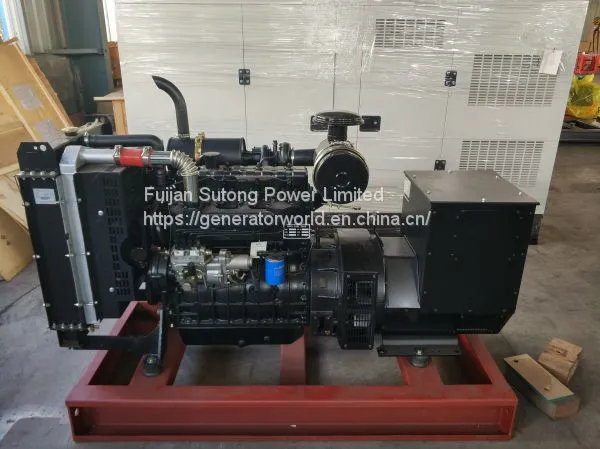

KOFO Diesel Generator 60kVA

Name: KOFO Diesel Generator 60kVA
Brand: Sutong Power
SKU: 158707682
Availability: InStock

US$ 2500 - 4000 MOQ: 1 Set

Key Specifications

Brand Name:

Sutong Power

Place of Origin:

China

Model Number:

ST-KF66

Fuijan Sutong Power Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou Port

Delivery Detail:

15 days

Brand Name Sutong Power

Place of Origin China

Model Number ST-KF66

Rated Current 95.6A

Output Type AC Three Phase

Speed 1500rpm

Frequency 50Hz

Rated Voltage 230/400V

Rated Power 60kVA/48kW

KOFO Diesel Generator 60kVA

Diesel Generator Set

Model				ST-KF66
Standby Output (50Hz)				66kVA / 53kW
Prime Ouptut (50Hz)				60kVA / 48kW

STANDARD FEATURES
Supply Scope
1. Engine with KOFO brand model N4105ZLDS
2. Alternator with Sutong Power brand model S224G50
3. Automatic Start / Stop control panel
4. Dry type air fillter, fuel filter, oil filter
5. 12/24V D.C automatic battery charger.
6. Max. 50 degree celsius radiator
7. Batteries, rack and cable
8. Ripple flex exhaust pipe, flange and muffler
9. Circuit breaker
10. Based Fuel tank
11. Complete users' manual
DIESEL GENERATOR RATINGS
Voltage (V)	Frequency (Hz)	Phase	Standby Amps. (A)	Standby Output		Prime Output
				kVA	kW	kVA	kW
240/415	50	3	92.2	66	53	60	48
230/400	50	3	95.6	66	53	60	48
220/380	50	3	100.7	66	53	60	48
Prime Output: Prime output is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528); a 10% overload capability is avaiable for a period of 1 hour with a 12-hours period of operation.
Standby Output: The standby output is applicable for supplying emergency power for duration of a utility power interruption. No overlad, utility parallel or negotiated outage operation capability is available at this rating.

SALE PROMISES
1. Sutong Power provides a full line of brand new and high quality products. Every unit is strictly factory tested.
2. Warranty is according to our standard conditions: 12 months or 1,000 running hours, subject to which comes first.
3. Service and parts are avaiable from Sutong Power or distributors in your location.

Diesel Generator Set

ENGINE SPECIFICATION
Manufacturer		Shandong Kofopower Co.,Ltd.
Engine Model		N4105ZLDS
Engine Type		4-Cylinder Diesel
Aspiration		Turbocharged & Aftercooled
Cooling Method		Water Cooling
Governor		Mechanic
Compression Ratio		16:01
Engine max Output at rate 1500R.P.M.	kWm	66
	BHP	88
Displacement	Liters	6.49
Engine Speed	R.P.M.	1500
Bore x Stroke	mm	105 x 125
Fuel Comsunption at 100% load	Liters / H	16
Oil Pan Capacity	Liters	13
Intake Air Flow at rate output	Liter / S	N.A
Exhaust Gas Temp. at rate output	°C	N.A
Exhaust Gas Flow at rate output	Liter / S	N.A

ALTERNATOR SPECIFICATION
Manufacturer		Sutong Power
Model		S224G50
Rate Output	kAV	60
Rate Speed	R.P.M.	1500
Rate Frequency	Hz	50
Altitude	M	≤1000
Alternator Type		Single bearing, brushless type
Connection Type		3 phase, 4 wire
Protection Grade		IP23
Insulation Class		H
Voltage Regulation		AVR
Standards		Compliance with GB755, BS5000, NEMA MG1-22, IEC-34, CSA C22-100 and AS1259 Standards.

Diesel Generator Set
Diesel Generator Set
CONTROL PANEL
Control supervision and protection panel is mounted on
the genset base frame.

The control panel is equipped as follows:
Control panel:
-- Manual、Automatic、Stop
-- Static with auto. battery charger
-- Emergency stop push button
-- Alarming


a) Generator set controller model HGM6110 features:			c) Alarms:
-- The module is used to monitor the generator set			-- Over and Under Speed
start & stop.			-- Low and High Battery Voltage.
-- Micro-processor based design			-- Start and Stop Failure
-- Monitors engine performance and AC power output			-- Charge Fail
-- LED alarm indication and Sound alarm.			-- Over Current
			-- Under / Over Generator Voltage
b) Metering via LED display:			-- Low Oil Pressure
-- Mains voltage: Uab, Ubc, Uca			-- Emergency Stop
-- Generator voltage: Uab, Ubc, Uca			-- High Engine Temperature
-- Generator current: Ua, Ub, Uc			-- Over Load
-- Generator temp.: ℃/℉ both display
-- Generator frequency: Hz			d) LED Indications
-- Generator active power: kW			Four configurable LED's like:
-- Generator starts count: 999999 times (Max)			-- Generator available
-- Generator pressure: kPa/Psi/Bar both display			-- Generator on load

OPTIONAL EQUIPMENTS
-- Daily Fuel Tank	-- Parallel Panel	-- Remote Control Panel		-- Soundproof Type
-- Engine Heater	-- Permanent Magnet	-- Auto. Transfer Switch		-- Trailer Type
-- Water Heater	Generator (PMG)	-- Switch Box		-- Spare Parts

Diesel Generator Set
Diesel Generator Set
DIMENSION AND WEIGHT

OPEN TYPE DESIGN










--The complete generator set is mounted as whole on a heavy-duty fabricated, steel base frame.
-- Antivibration pads are fixes between the engine / alternator feet and base frame.
-- Base frame design incorporates an integral fuel tank (Up to 750kVA)
-- The generating set can be lifted or carefully pushed / pulled by the base frame.
DIMENSIONS OF DIESEL GENERATOR SET
Open-type Dimension (mm)	L1950 x W760 x H1200	Open-type Weight	1100kg
Soundproof Dimemsion (mm)	-	Soundproof type Weight	-

SOUNDPROOF CANOPY DESIGN
