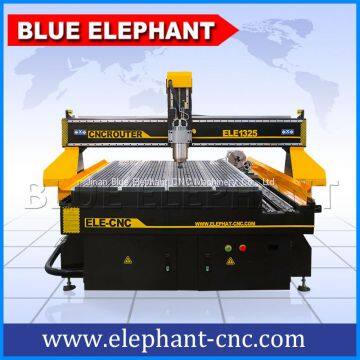

Help Center1325 4 Axis 3D Engraving Machine
Related Products
-
ELE1530-4 5x10ft Cnc Wooden MachineUS$ 4000 - 7000MOQ: 1 Set -
1836 High Z Travel 4 Axis CNC MachineUS$ 5000 - 8000MOQ: 1 Set
-
1325 Spindle Swing 4 Axis CNC Engraving MachineUS$ 4500 - 7000MOQ: 1 Set
-
1530 Pneumatic System 3 Spindles CNC Router With Rotary DeviceUS$ 4000 - 7000MOQ: 1 Set
-
1224 High Z Axis CNC Machinery With Rotary DeviceUS$ 4000 - 8000MOQ: 1 Set
Features:
Heavy duty thicker and bigger welded steel tube frame – more stronger.
4.5KW water cooling spindle -low noise.

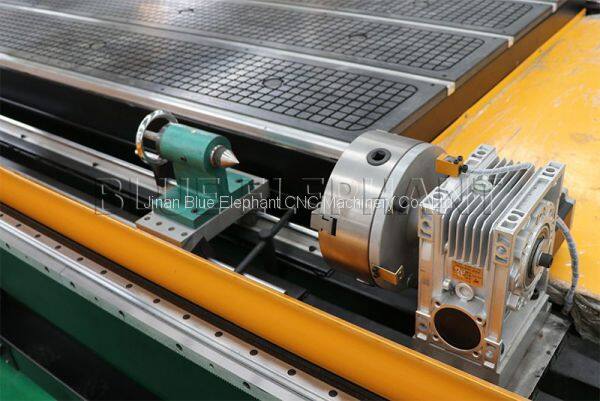

One 200mm rotary on one side of machine, it can engrave the materials from different views.

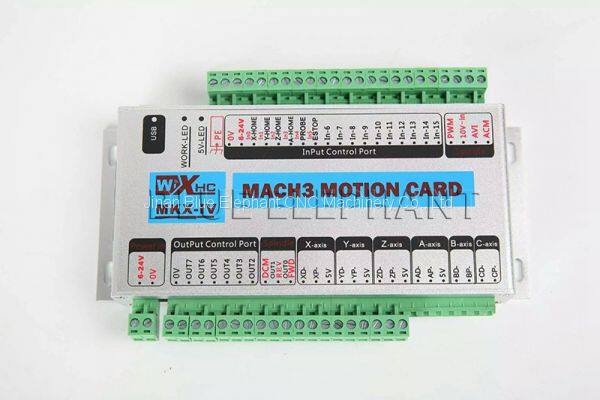

Mach3 control system can connect with computer, it is convenient to opertaion.
Vacuum & T-slot working table, match one vacuum pump, can fix the material more stable.
Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 1300x2500x200mm |
| Table Surface | Vacuum and T-slot working table,4 zones |
| Frame | New style heavy duty Welded Structure |

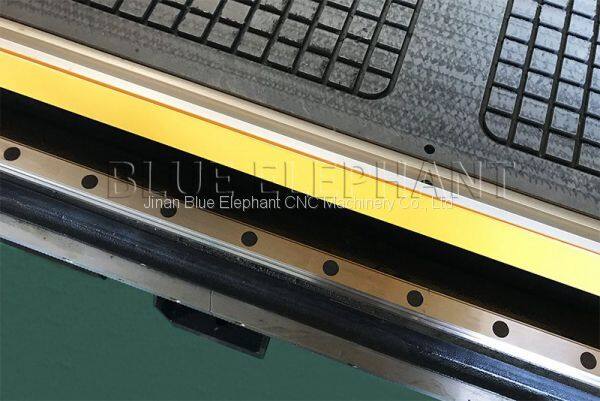

| X, Y Structure | Rack and Pinion Drive, #20 ABBA Rail Linear Bearings |

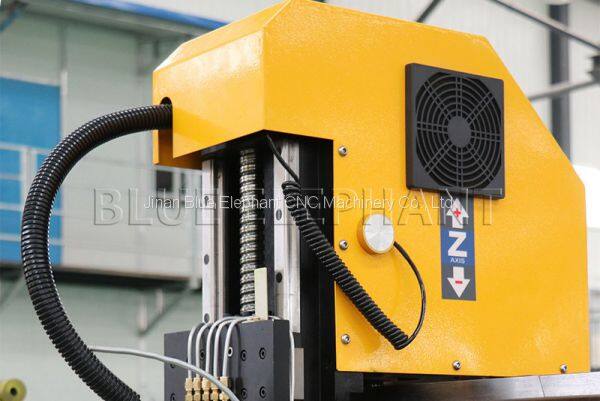

| Z Structure | Taiwan TBI ball screw |
| Spindle Power | 4.5kw Changsheng Water Cooling Spindle |
| Spindle Speed | 0-24000RPM |
| Inverter | 5.5KW Fuling Inverter |
| Drive Motors | Stepper FL118 |
| Working Voltage | 380v, 3 phase, 50/60HZ(Option: AC220V/50/60Hz,3PH) |
| Command Language | G Code |
| Operating System | Mach3 4 axis control system |
| Computer Interface | USB |
| Rotary device | 200mm diameter*2000mm length |
| Collet | ER25 |
| X,Y Resolution | |
| Software Compatibility | Artcam software 2012 |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
PS:All the working area and specifications can be customized according to your requests.
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
