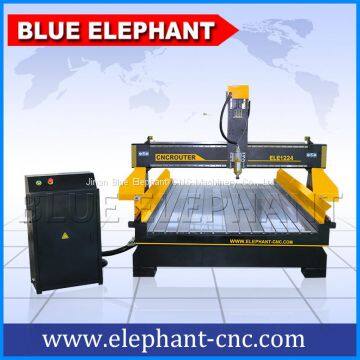

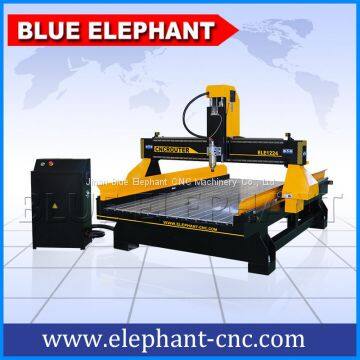

Help Center1224 High Z Axis CNC Machinery With Rotary Device
Related Products
-
1325 4 Axis 3D Engraving MachineUS$ 3500 - 7000MOQ: 1 Set -
ELE1530-4 5x10ft Cnc Wooden MachineUS$ 4000 - 7000MOQ: 1 Set
-
1836 High Z Travel 4 Axis CNC MachineUS$ 5000 - 8000MOQ: 1 Set
-
1325 Spindle Swing 4 Axis CNC Engraving MachineUS$ 4500 - 7000MOQ: 1 Set
-
1530 Pneumatic System 3 Spindles CNC Router With Rotary DeviceUS$ 4000 - 7000MOQ: 1 Set
Features:
Low cost: economic price high z axis travel professional cnc foam cutting machine
Popular design: Industrial class square tube strong machine bed and gantry

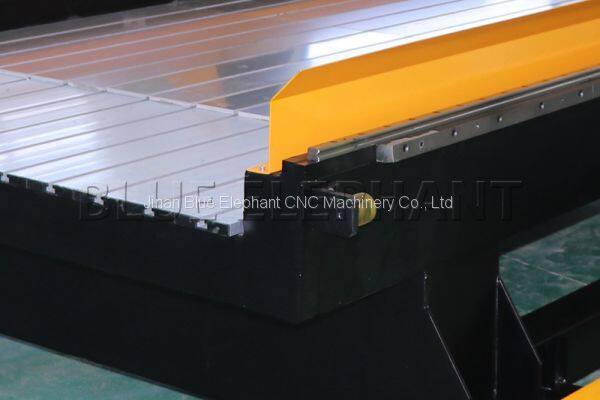

Durable table: t-slot working table with hard pvc protection, especially for foam and styrofoam, pu foam cutting
Multi-use: with removable rotary device attached on table, which is mainly used for wood and foam materials cylinder objects
Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 1200x2400x400mm |
| Table Surface | T-slot working table with hard pvc protection |
| Structure | Industrial class square tube strong structure |
| X, Y Structure | 20#Taiwan ABBA Linear guide and helical rack |
| Z Structure | Taiwan TBI Ball screw |

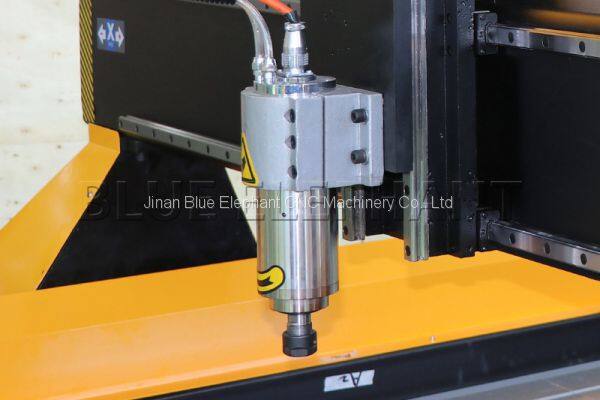

| Spindle Power | 2.2KW Changsheng water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | FL118 stepper motor and YAKO2811 drive |
| Inverter | 2.2kw Fuling Inverter |
| Control System | Mach3 controller |
| Lubrication | Manual Lubrication system |
| Tool sensor | Manual tool sensor calibration |
| Control box | Single Control box |
| Option | Removable Rotary device 200*2000mm |
| Limit switch | Japan OMRON limit switch for X, Y, Z axis |
| Command Language | G Code |
| Computer Interface | USB |
| Collet | ER20 |
| Software Compatibility | ARTCAM 2012 software |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
PS:All the working area and specifications can be customized according to your requests.
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine
