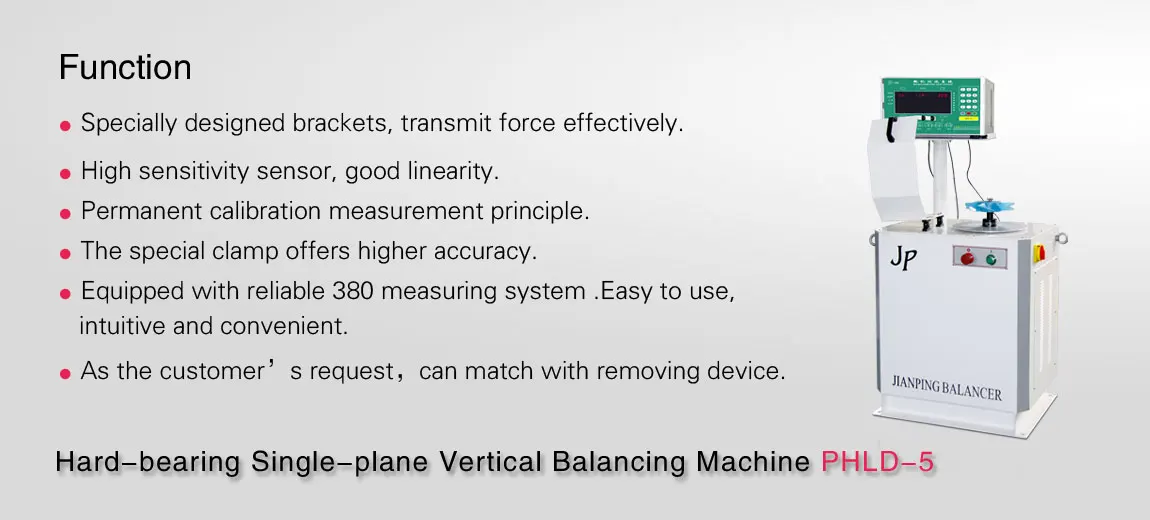

2018 High-precise Fly wheel Single-plane vertical balancing machine
Production Description
• Specially designed,solid brackets can effectively transmit mechanical force
• Durable and reliable sensor possesses high sensitivity and good linearity
• Permanent calibration brings high accuracy

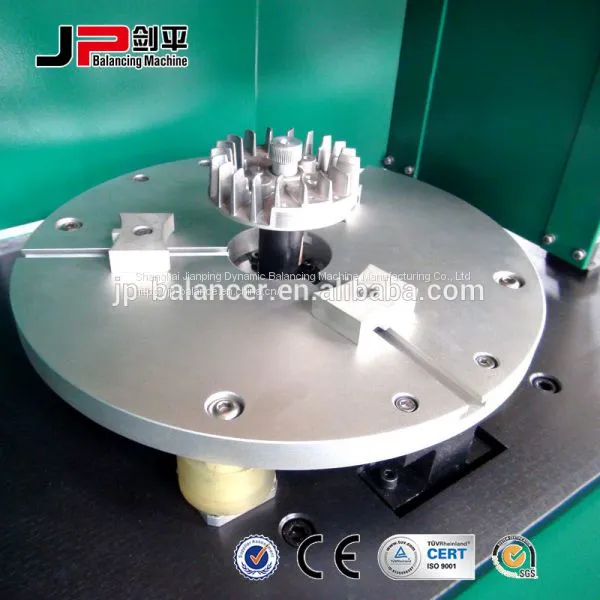

• Special clamp offers higher accuracy and easier operation
• Advanced electrical measuring system and friendly man-machine interface
• As the customer's request,the de-weighting system can be equiped
Range of Application

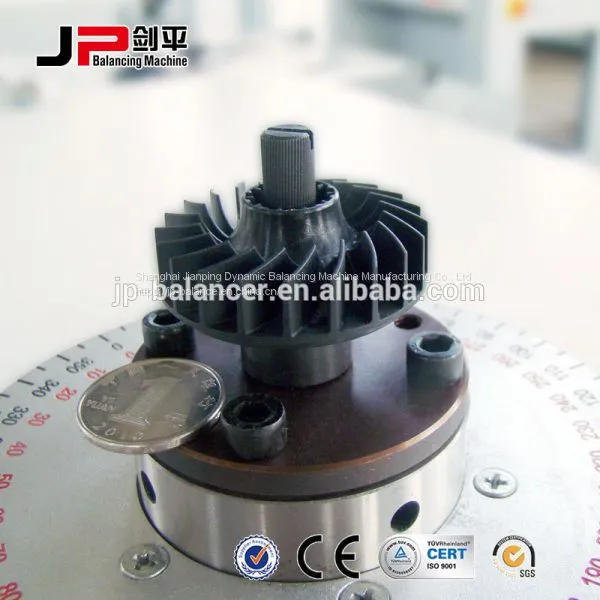

Mainly used in balancing fan impeller, pump impeller, range hood fan, flywheel, grinding wheel, chuck, clutch, brake disc , saw blade, brake, tool, torque converter , belt pulley etc.
It can be equipped weight-removing equipment for customer if demanded.
Electrical Measuring System (Option)
Production Parameters
Technical data at a glance |
PHLD-5 |
Weight of Workpiece (kg) |
5 |
Max. Outer Diameter of Workpiece (mm) |
350 |
Height of Workpiece (mm) |
120 |
Rotating Speed of Main Shaft (r/min ) |
900 |
Motor Power (KW) |
0.18 |
Min Achievable Residual Unbalance Amount. (e mar ) |
2g· mm/kg |
After Sale Service
| Professional engineer and application specialists respond to your requests efficiently | |
| Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer | |
| Follow up the case, record the entire process. Solution will be provide with 24 hours | |
| Meanwhile,the problem complaint will be reported to QC department | |
| QC will find defect from which department ,who is in charge to identify responsibility | |
| Collecting and record customer respond,suggestion,requirement |
About Us
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co.,Ltd. is a professional manufacturer of dynamic balancing machine,which is high-tech technology enterprises of Optical-electro-mechanical Integration ,
There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV,CE Certificate of Ente Certificazione Macchine
Warranty period
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.

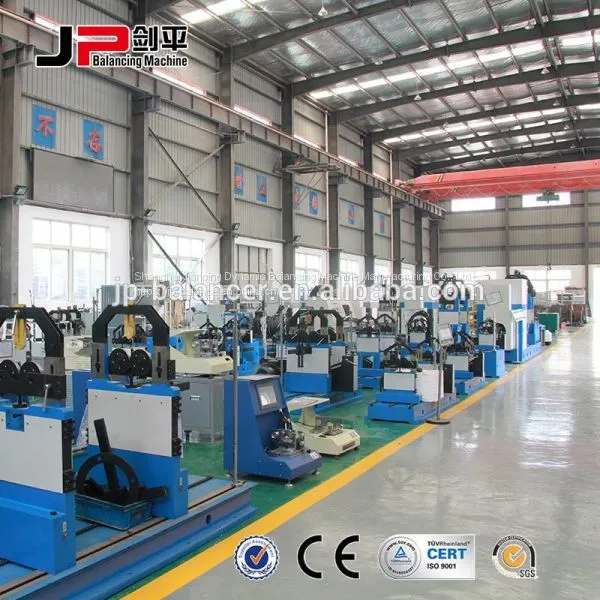

Factory Outlook
Certificates
Material inspection
Production Process-Measuring system
easuring system
Production Process-Mechanical parts
Workshop debugging
Delivery inspection
Package and transport
