• Durable and reliable sensor possesses high sensitivity and good linearity

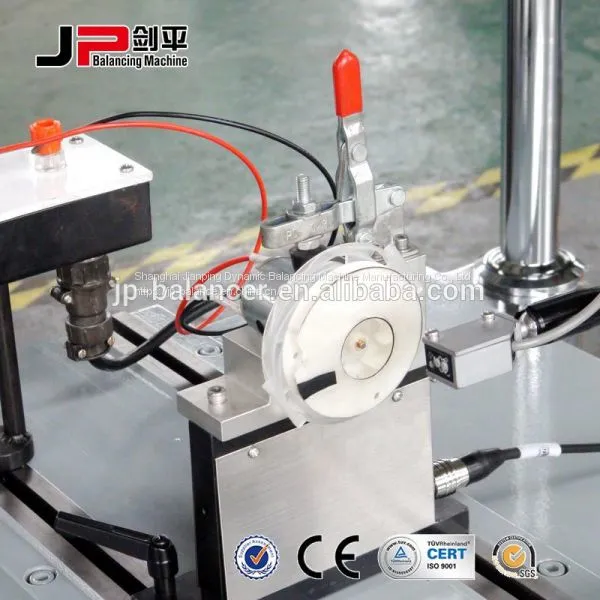

• Specially designed clamp offers higher precision and easier operation
• Realistic imitation of the working station minimizes inaccuracy for global balancing
• Advanced electrical measuring system and friendly man-machine interface
• Modular design offers a wide range of ft-bearing
Global balancing is a newly-developed conceptation in recent years. It is widely adopted in the balancing process of the machine tool spindles, motor assembly, coil fan, cooling fans, external rotor motors, air-conditioner fans, fan heaters, range hood fan, Hard-Disk Drive of computers. .Take full consideration of overall component's accuracy.to eliminate the unbalance amount caused by the bearings.other parts and assembly errors so that improve products'quality
Design
Well-designed mechanical module helps to do quick and precise balancing.Give more choices,Equip your optimal balancing device with less expense.
Special Features

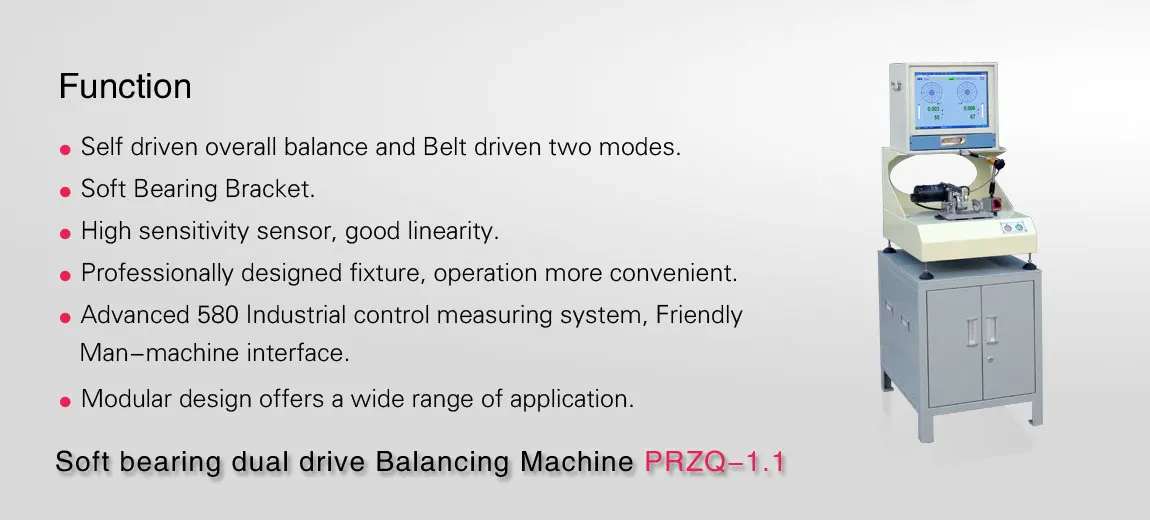

It adopted soft bearing supporting frames system,with advantage of high precision,efficiency, customized special clamps can use quick chuck fastening, perfectly applied to the global balancing,
Electrical Measuring System (Option)
Production Parameters
| Technical data at a glance | PRZQ-0.3 | PRZQ-1.1 |
| Mass Scope of Workpiece(kg) | 0.3 | 1.1 |
| Maximum diameter of Workpiece (mm) | 40 | 130 |
| Distance between two bearing pedestals (mm) |
Φ7~44 Front install Φ6~130Behind install |
Φ8~110 |
| Diameter scope of Two Support Bearings (mm) | Φ1.5~10 | Φ2~12 |
| Diameter Scope of Driving Belt (mm) | Max 70 | Max 70 |
| Rotational Speed when Driving Diameter is 40mm(r/min) | -3670 | |
| Motor Power (w) | 50 | 50 |
| Min Achievable Residual Unbalance Amount (emar) | 0.1g· mm/kg | 0.1g· mm/kg |
After Sale Service
| Professional engineer and application specialists respond to your requests efficiently | |
| Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer | |
| Follow up the case, record the entire process. Solution will be provide with 24 hours | |
| Meanwhile,the problem complaint will be reported to QC department | |
| QC will find defect from which department ,who is in charge to identify responsibility | |
| Collecting and record customer respond,suggestion,requirement |
About Us
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co.,Ltd. is a professional manufacturer of dynamic balancing machine,which is high-tech technology enterprises of Optical-electro-mechanical Integration ,
There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV,CE Certificate of Ente Certificazione Macchine
Warranty period
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
Factory Outlook
Certificates
Material inspection
Production Process-Measuring system
easuring system
Production Process-Mechanical parts
Workshop debugging
Delivery inspection
Package and transport
