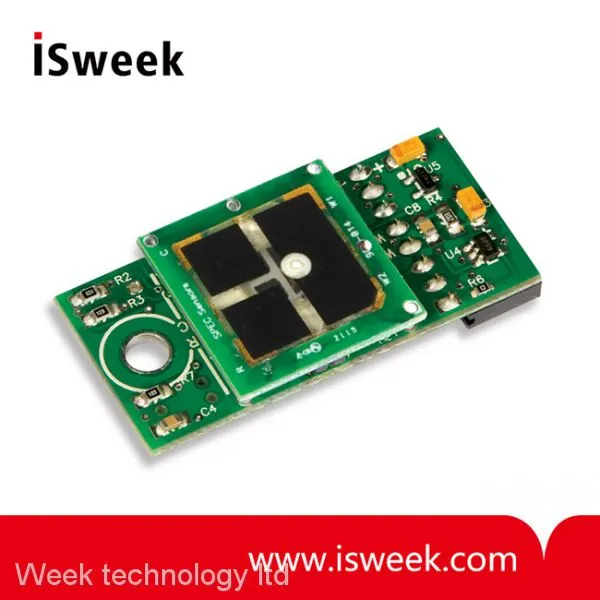

DGS-NO2 968-037 Digital NO2 Sensor Module DESCRIPTION
Easily add NO2 sensing to your IoT application with our Nitrogen dioxide digital gas sensor module that provides a calibrated and temperature compensated output.
0 to 10 ppm NO2 sensor with digital output.
DGS-NO2 968-037 Digital NO2 Sensor Module BENEFITS
• Low Power – 1 mW @ 1 minute sampling
• Calibrated & Temp. Compensated Output
• Fast Response • Simple Digital UART Interface
• Integrated T & RH Sensors
• Robust 10-year Estimated Lifetime
• ROHS Compliant
• Small form Factor
• UART to USB adapter provided
• Lightweight (
DGS-NO2 968-037 Digital NO2 Sensor Module APPLICATIONS
• Air Purification Control
• Air Quality Monitoring
• Industrial Safety Sensing
DGS-NO2 968-037 Digital NO2 Sensor Module MEASUREMENT PERFORMANCE CHARACTERISTICS
Based on Standard Conditions 25 ºC, 50% RH and 1 atm
| Measurement Range |
0 to 10 ppm |
| Resolution |
20 ppb |
| Measurement Accuracy |
15% of reading |
| Measurement Repeatability |
|
| T90 Response Time (100 ppm step) |
|
| Power Consumption |
1 mW for 1 minute triggered samples 12 mW for continuous sampling 5, 10 30, 60 second intervals |
| Expected Operating Life |
> 5 years (10 years @ 25± 10C; 60 ± 30% RH) |
| Operating Temperature Range |
-20 to 40 °C (-30 to 55 °C intermittent) |
| Operating Humidity Range |
15 to 95% (0 to 100% non-condensing intermittent) |
| Mechanical Dimensions |
1.75 x 0.82 x 0.35 in. (44.5 x 20.8 x 8.9 mm) |
| Weight |
