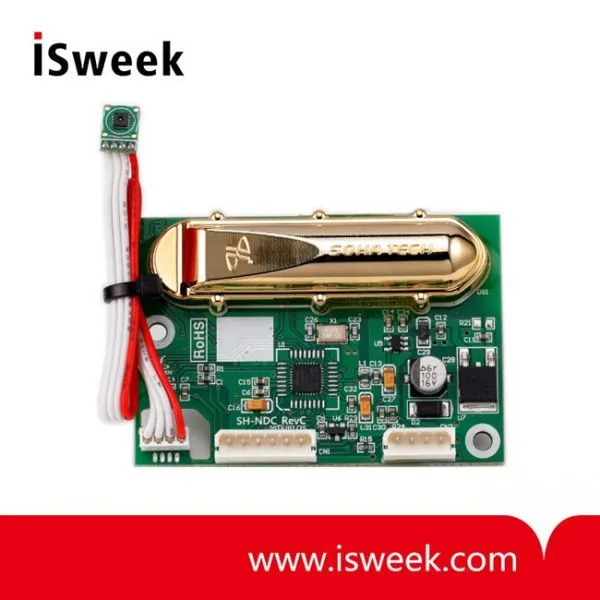

Help CenterSH-300-NDTH NDIR Carbon Dioxide Sensor CO2 Sensor Module
Related Products
-
XEN-TCG3880 Thermal Conductivity SensorNegotiableMOQ: 1 Piece -
TF-LP01 Laser Particle SensorNegotiableMOQ: 1 Piece
-
Prime2 Voltage Output Infrared Carbon Dioxide (CO2) Gas SensorNegotiableMOQ: 1 Piece
-
CH-A3 Combustible Gas PellistorNegotiableMOQ: 1 Piece
-
IRC-A1 Infrared Carbon Dioxide (CO2) Sensor Pyroelectric DetectorUS$ 80 - 120MOQ: 1 Piece
SH-300-NDTH NDIR Carbon Dioxide Sensor Module Features
• Best Extremely Precise Sensor
• Quick Response Time
• Long Time Use, Stable performance at High & Low Temperature
• Waterproof Filter for anti static filters fine dust and humidity in the air
• One-way air indraft for represent average value when momentary CO2 Value change in the air
• Low Current consumption
• Output support: UART, 0~3V Analog
SH-300-NDTH NDIR Carbon Dioxide Sensor Module Application
• CO2 Control for IAQ
• Building, Hospital, School
• Air cleaner, Air conditioner
• Mushroom control, Boiler control
SH-300-NDTH NDIR Carbon Dioxide Sensor Module Technical Specification
CO2 Sensor
| Measuring Type | Non-Dispersive Infrared (NDIR) |
| Measuring Range | 0 ~ 3,000 / 5,000 / 10,000 ppm |
| Accuracy | FS ±2%, measured value±3% @ 0 ~ 50°C |
| Response Time | Every 2.0 Seconds |
| Warm-Up Time @25°C | |
| Operating Condition | 0 ~ 50°C, 0 ~ 95%RH (Non Condensing) |
| Output | Analog : 0~3VDC (0~3000, 5000, 10000ppm) [CN2] |
| UART: 9600bps [CN1] / TTL Level 3.3V | |
| Power Input | DC7V ~ 12V Input |
| Fixed(Other Made): 5 VDC Regulated (±4%) | |
| Consumption Current | Normal 38mA, Peak point 80mA |
| Interface | 4PIN Header[CN2], 6PIN Header[CN1] |
| Molex 5267 included. | |
| With 2.54mm spacing | |
| Size | (W)65 mm x (H)45 mm x (D)17.6 mm (±0.5 mm) |
| Weight |
22 g |
Temperature Sensor
| Range |
-25 ~ 80°C |
| Accuracy |
±0.3°C |
| Response Time |
5 ~ 30 Sec |
Humidity sensor
Range
0 ~ 100 %RH
Accuracy
±2 %RH Max. ±3 %RH
Response Time
8 Sec
