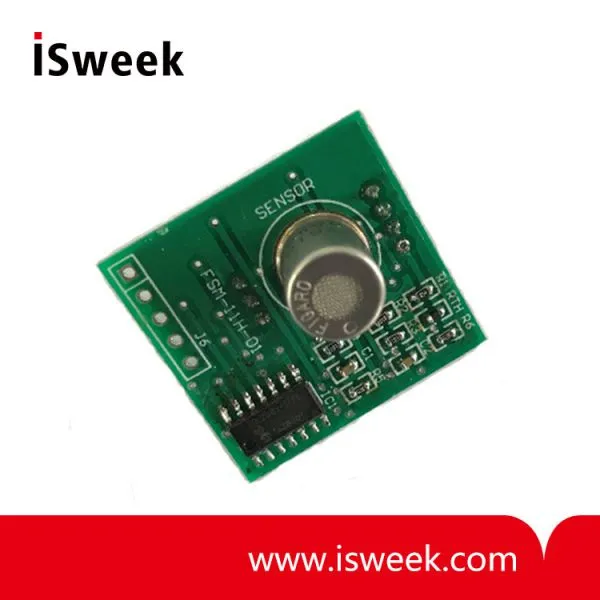

FSM-10H-01 Pre-calibrated Module for LPG Gas
FSM-10H-01 is Pre-calibrated Module for LPG gas alarm which applies TGS2610-D00 sensor together, it features durability and stability. The module outputs PWM signal which is proportional to LPG gas concentration (The module has a memory which is stored with factory calibration data), also is capable of detecting sensor wire breakage and short. The module can operate at wide temperature from -10~70°C.
Furthermore, the unit is less sensitivity to VOCs gas, it immunes poison by silicon compounds, it suits to work at rugged environment.
FSM-10H-01 Combustible Gas Sensor Module Features
• PWM, USART digital output proportional to gas concentration
• Maintain Free
• Compact size, low cost
• Meets RoHS requirement
FSM-10H-01 Combustible Gas Sensor Module Applications
• Detect flammable gas leakage
• Flammable gas leakage Detector
• Industrial detector
FSM-10H-01 Combustible Gas Sensor Module Specification
| Product name |
Combustible gas sensor module |
|
| Model No. |
FSM-10H-01 |
|
| Gas sensor |
TGS2610-D00(Semiconductor) |
|
| Detection range |
0 ~ 4,000ppm H2 (also can detect methane, iso-butane, and propane) |
|
| Error |
± 300ppm |
|
| Output voltage (Vconc) |
PWM(2KHz) |
|
| Trouble |
Trouble:H, Normal:L |
|
| Response time (T90) |
≤30S |
|
| Operating conditions |
-10°C ~+70°C, 20~95%RH(No condensing) |
|
| Storage conditions |
-10°C ~+80°C, 20~95%RH |
|
| Input voltage (VIN) |
5.0±0.2V DC |
|
| Power consumption |
≤1.5W |
|
| Weight |
15g or less |
|
| Dimensions |
26*27mm |
|
| Standard test conditions |
Ambient conditions |
20±2°C, 65±5%RH |
| Circuit conditions |
5.0±0.2V |
|
| Conditioning period prior to test |
≥10 minutes | |
