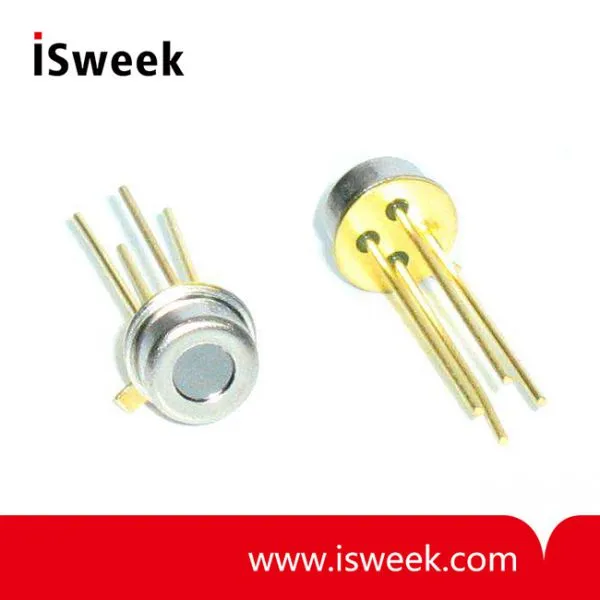

TS418-1N426 Thermopile Infrared Sensor for NDIR CO2 Gas Detection
- 1000 Piece / Pieces per Month
- HK
- T/T PayPal
- 7 days
- SMTIR9902SIL Thermopiles Infrared Temperature Sensor with Silicon Lens
- IoLine-TrisB IoLine Tris Compatible pH Electrodes
- WQ201 Rugged Water pH Sensor
- CM1106 Single Beam Infrared Carbon Dioxide Sensor NDIR CO2 Sensor Module
- LS-7 OEM Refrigerant Gas Sensor for Leak Detection & Measurement
- NTU Nephelometric Turbidity & Temperature Sensor
Product Details
Brand Name: | TE | Place of Origin: | United States | Model Number: | TS418-1N426 |
Usage: | Temperature Sensor | Theory: | Other, Infrared Sensor |
Product Description
TS418-1N426 Thermopile Infrared Sensor SPECIFICATIONS
• Thermopile IR-Sensor
• Filter for NDIR CO2 Gas Detection
• Single Element
• Very High Signal
• Flat Filter
• Small Package
• Accurate Reference Sensor
TS418-1N426 Thermopile Infrared Sensor DESCRIPTION
Thermopiles are mainly used for contactless temperature or non-dispersive infrared measurement in many applications. Their function is to transfer the heat radiation emitted from the objects or other infrared sources into a voltage output.
TS418-1N426 Thermopile Infrared Sensor FEATURES
• Very High Signal
• Accurate Reference Sensor
• 4.26µm Narrow Band Pass
• Small TO-18 package
TS418-1N426 Thermopile Infrared Sensor APPLICATIONS
• NDIR CO2 Gas Detection
TS418-1N426 Thermopile Infrared Sensor ABSOLUTE MAXIMUM RATINGS
Parameter | Symbol | Min | Typical | Max | Unit | Description |
Storage Temperature | Ts | -20 | +20 | +85 | °C | permanent |
Storage Temperature | Ts | -20 | +20 | +100 | °C | non permanent |
TS418-1N426 Thermopile Infrared Sensor PERFORMANCE SPECS
Parameter | Symbol | Value | Unit | Condition |
Operating Ambient Temperature | TAmb | -20 to +85 | °C | permanent |
Operating Ambient Temperature | TAmb | -20 to +100 | °C | non permanent |
Package | TO-18 | |||
Absorber Area | A | 1.4 x 1.4 | mm2 | |
Thermopile Resistance | RTP | 180 ± 60 | kΩ | TAmb = +25°C |
Temperature Coefficient of Thermopile Resistance | TCRTP | -0.06 ± 0.04 | %/K | TAmb = +25°C to +75°C |
Voltage Response | VTP | depends on light source | mV | TAmb = +25°C, TObj = +100°C, DC, totally filled field of vie |
Temperature Coefficient of Voltage Response | TCVTP | -0.45 ± 0.08 | %/K | TAmb = +25°C to +75°C |
Noise Equivalent Voltage | NEV | 130 | nV/Hz½ | TAmb = +25°C |
Rise Time | t63 | 22 ± 5 | ms | |
Ambient Temperature Sensor | Ni-RTD | |||
Ambient Temperature Sensor Resistance | RNi-RTD | 1000 ± 4 | Ω | TAmb = 0°C |
Temperature Coefficient of Ni-RTD | TCNi-RTD | 6178 ±150 | ppm/K | TAmb = 0°C to +100°C |
