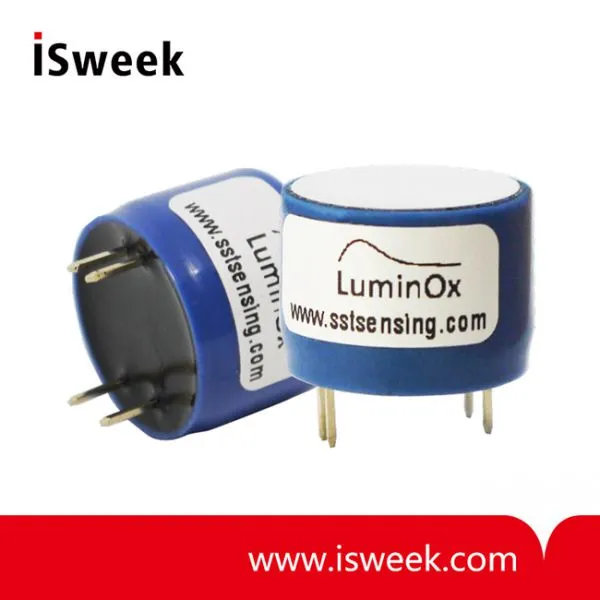

LOX-02-S LuminOx Sealed Optical Oxygen Sensor General Description
The LuminOx Sealed Optical Oxygen Sensor Range Offers Users With Application Requirements To Only Measure Sample Gas At The Front Face Of The Sensor.
The LuminOx Sealed Optical Oxygen Sensor is developed and manufactured by SST, it is part of the LuminOx family, which is a range of factory calibrated oxygen sensors which measure ambient oxygen levels using the principle of luminescence quenching.
The LuminOx Sealed Optical Oxygen Sensor (LOX-02-S) is an extension to the standard range of LuminOx oxygen sensors. It is a similar diffusion type sensor like the original LOX-02 sensor. However, the LOX-02-S has a sealed base that is gas-tight, meaning only the face of the sensor with the protective membrane needs to be in the sample gas environment, externally leaving easy access to the pins of the sensor.
LOX-02-S LuminOx Sealed Optical Oxygen Sensor Features
• Luminescence-based optical technology, NOT electrochemical
• Contains no hazardous materials; RoHS & REACH compliant
• Connects directly to a microcontroller without any additional circuitry
• Factory calibrated
• High accuracy
• Maintenance free
LOX-02-S LuminOx Sealed Optical Oxygen Sensor Benefits
• Compact, diffusion-type housing with sealed base
• Low power, long life due to non-depleting sensing principle
• Low cost
LOX-02-S LuminOx Sealed Optical Oxygen Sensor Technical Specifications
| Supply voltage (Vs) |
4.5-5.5V DC |
| Supply current (ls) |
|
| Output Type |
3.3V TTL level USART |
| Temperature |
|
| Operating: | -30°C to +60°C |
| Storage: | -30°C to +60°C |
| Humidity |
0 - 99% Rh (non-condensing) |
| Barometric pressure range |
500 - 1200mbar |
LOX-02-S LuminOx Sealed Optical Oxygen Sensor Output Values
| Oxygen range |
0 - 25% O2 |
| Oxygen pressure range |
0 - 300mbar ppO2 |
| Response time |
T90 |
| Accuracy |
|
| ppO2 | |
| Temperature | Indication only |
| Pressure | ±5mbar |
| O2 | Determined by ppO2 & pressure accuracy |
| Resolution |
|
| ppO2 | 0.1mbar |
| Temperature |
0.1°C |
| Pressure |
1mbar |
| O2 |
0.01% |
| Lifetime |
> 5 years |
