TF-LP01 Laser Particle Sensor
- 1000 Piece / Pieces per Month
- T/T PayPal
- 7 days
Product Details
Brand Name: | Figaro | Model Number: | TF-LP01 | Usage: | Gas Sensor |
Theory: | Other, Laser Particle Sensor |
Product Description

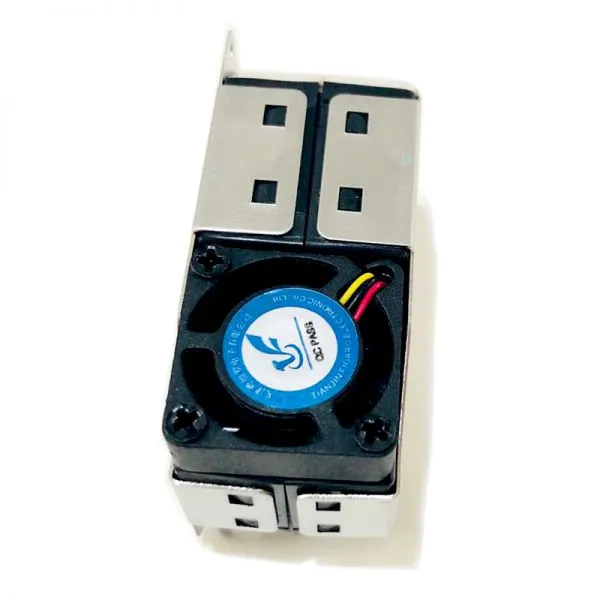

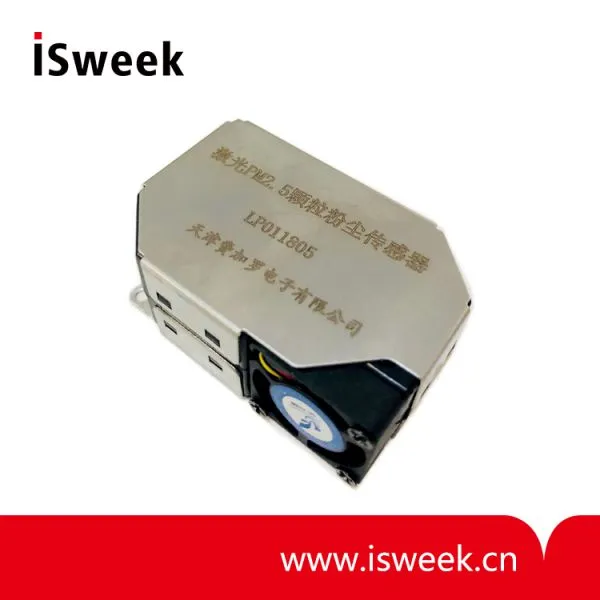

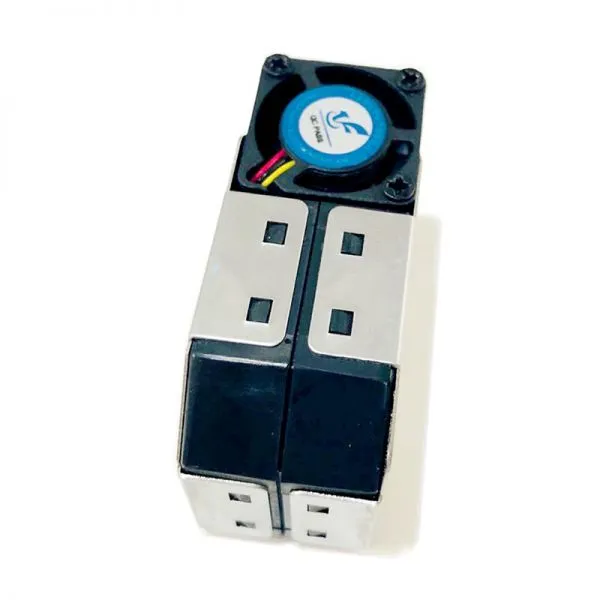

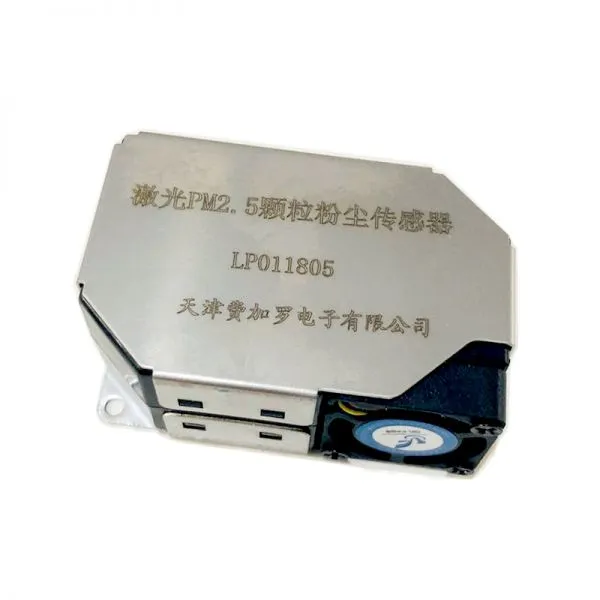

TF-LP01 Laser Particle Sensor Description
TF-LP01 type laser particle sensor is a small module for detection of particles in the air with scattering principle. It features compact size, high accuracy, repeatablity and consistency, and strong resistance against interference. It adopts ultra-silent fan, and is able to response in real-time and collect data continuously. The sensors are 100% tested and calibrated in factory.
TF-LP01 Laser Particle Sensor Features
• High accuracy
• Fast response
• Compact in size
TF-LP01 Laser Particle Sensor Applications
• Air purifier, portable air quality detector, smart home, etc.
TF-LP01 Laser Particle Sensor Technical index
Distinguishable particle | PM1.0, PM2.5, PM10 |
Interface type | USART (3.3V TTL level), PWM (customized) |
Measurement range | 0~999 ug/m³ |
Measurement accuracy | ±10 ug/m³ @ 0~99 ug/m³; ±10% @ 100~999 ug/m³ |
Mass concentration resolution | 1 ug/m³ |
Response time | <10S |
Operating voltage | DC5.0V (±0.1V) |
Operating current | <100mA |
Operating temperature | -10°C~50°C |
Operating humidity | ≤95%RH (non-condensation) |
Storage temperature | -30°C~70°C |
Overall dimensions | 51 x 33 x 22mm |
