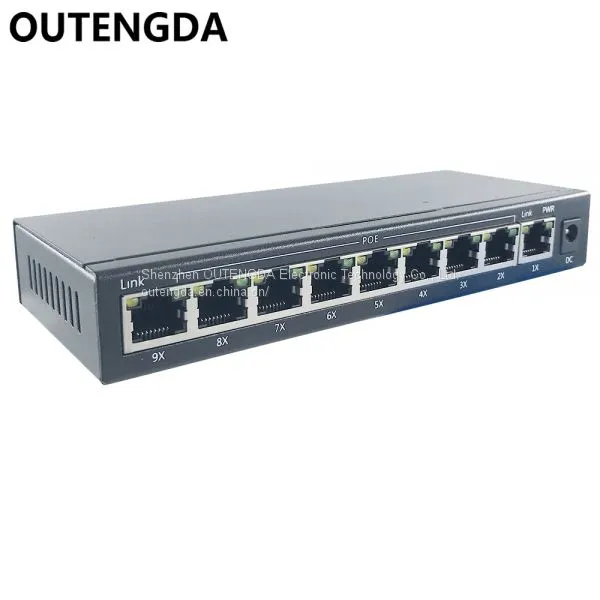

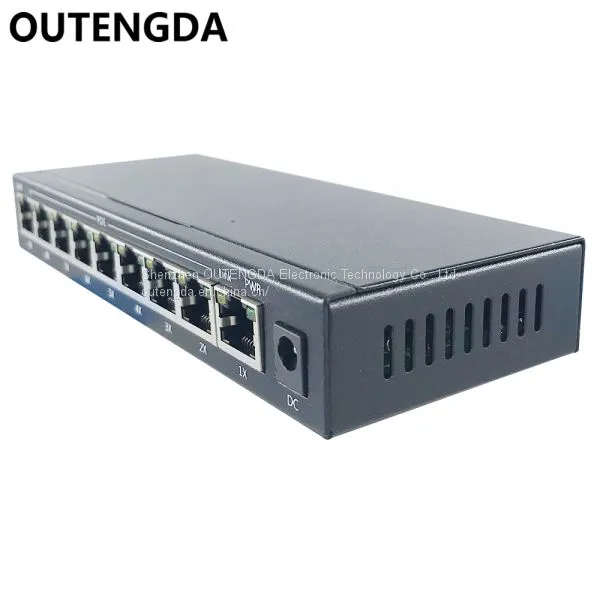

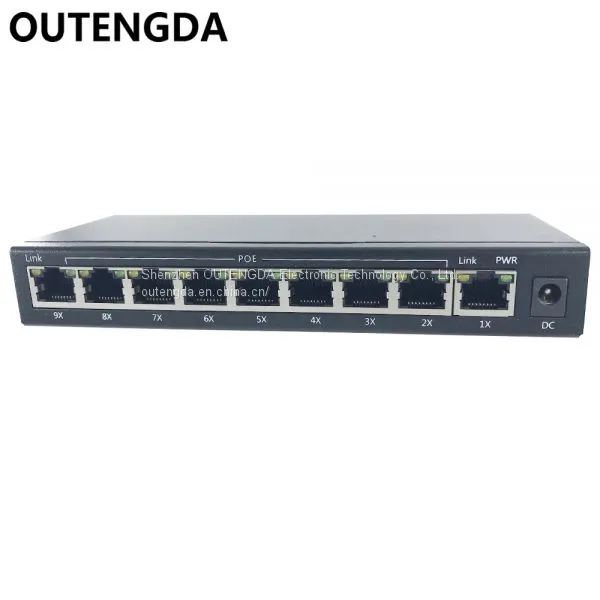

8+1 ports 10/100M POE Switch 12~15~24V poe network switch with 8 poe ports 1 uplink for Wireless AP, IP cameras etc
USD $35 - $95
/ Piece
1 Piece(Min.Order)
- 9999 Piece / Pieces per Month
- Shenzhen
- T/T L/C PayPal Other
- 3 days
You May Like
-
S5720-36C-EI-28S Combination Configuration (28 Gigabit SFPs, 4 multiplexed Gigabit 10/100/1000Base-T Ethernet ports Combo, 4 Gigabit SFP+, single daughter card slot, including 1 150W AC power supply)
-
Huawei S5720-28X-SI-24S-AC (24 Gigabit SFPs, 8 multiplexed Gigabit 10/100/1000Base-T Ethernet ports Combo, 4 Gigabit SFP+, AC powered, front maintenance)
-
S5731-S24P4X 24 10/100/1000BASE-T Ethernet ports, 4 10 Gigabit SFP+, PoE+
-
S5720-56C-EI (48 10/100/1000Base-T Ethernet ports, 4 10 Gigabit SFP+, single daughter card slot, including 1 150W AC power supply)
-
S5735-L48T4X-A1 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power)
-
S5735-L32ST4X-A1 24*GE SFP ports, 8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power, front access
Product Details
| Brand Name: | OUTENGDA | Place of Origin: | China | Model Number: | OTD09PM01 |
| Certification: | CE | Function: | POE | Products Status: | Stock |
| Transmission Rate: | 10/100Mbps | Switch Capacity: | 1.6G | Communication Mode: | Full-Duplex & Half-Duplex |
| Ports: | ≤ 8 |
Product Description
Product Model: OTD09PM01
Used for wireless AP, ip camera, IP telephone, wireless bridge, IP print server
(your device must support passive poe)
This is a professional plug-n-play 12V/15V/24V 9 port poe switch. 1 uplink with 8 poe ports. POE output voltage 12v/15V/24V. Power pin 4/5+,7/8-. It's greatly help low the cost for wiring. Only need a cat5 cable. Then power&data will be transport.
Features and Benefits
l Complies with IEEE 802.3 IEEE 802.3u standards
l 8 POE Ethernet power supply port, Single poe port output max 12v/15v/24v. Cable power supply distance max 100M.
l 9 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
l UTP port support automatic negotiation function, automatic adjustment transmission mode and transmission rate
l compatible with Ethernet application, Internet system, reduce the cost of network
l Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port
l Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput
l Support MAC address auto-learning and auto-aging
l LED indicators for monitoring power, link/activity
l Steel case
Specifications
Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3x flow control |
protocol | CSMA/CD |
Transmission Rate | Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port Fast Ethernet 100Mbps (half duplex),200Mbps (full duplex); 100BASE-TX :148800pps/port |
Topology | Star |
Network Medium | 10Base-T:Cat 3 or above Cat.3 UTP(≤100m) 100Base-TX:Cat 5 UTP(≤100m) |
Support VLAN | yes |
Number of Ports | 9 10/100M RJ45 ports |
POE Ports | 8 POE Ports |
UPLINK | 1 UP-Link port |
Transmits Method | Store-and-Forward |
Over Voltage/Current/Short Protection | The output can be shorted permanently without damage |
Temperature | Operating Temperature 0 C~40 C (32 F~104 F) Storage Temperature -40 C~70 C (-40 F~158 F) |
Humidity | Operating Humidity 10%~90% non-condensing Storage humidity 5%~95% non-condensing |
Switch capacity | 1.6G |
LED Indications | 1* power LED(Power: Green) 8* port LEDs(Link/Act: Green) |
| DC Input | 12V/15V/24V |
Dimension(W x H x D) | 162*95*28mm |
Case Material | Steel case |

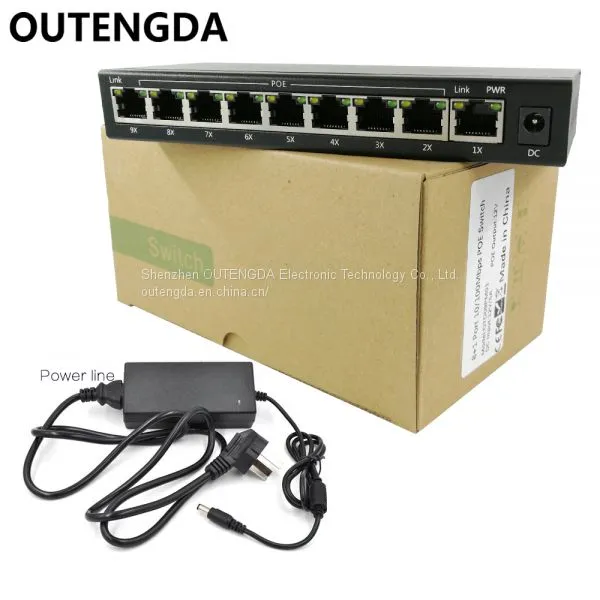

Packing list:
1 POE Switch
1 POE Supply Power
1 Power Line
1 User manual
