Standard 802.3af 48V PoE in Wall Wireless AP Router WiFi High Power Access Point With USB Charging Function
US$ 15 - 35
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OUTENGDA
Place of Origin:
China
Model Number:
M305
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
3 days
Related Products
-
300M 120 IN-Wall Wireless AP for Hotel Domitory Office Rooms USB Charge Interface Access Point Socket WiFi Extender RouUS$ 18 - 30MOQ: 1 Piece -
300Mbps 118 Type Wall Mount Wireless AP Access Point Socket WiFi Repeater Extender Router for Hotel Domitory Office RoomUS$ 15 - 26MOQ: 1 Piece
-
300Mbps in Wall WiFi Access Point Wireless Socket AP for Hotel WiFi Project Support AC Management RJ45 RJ11 WPS EncryptionUS$ 12 - 19MOQ: 1 Piece
-
300Mbps Best Reliable Design POE 100v/220v in Wall AP WiFi Access Point for Hotel Wifi Hotspot WISP WPS Wireless AP Router for HotelUS$ 15 - 20MOQ: 1 Piece
-
300Mbps in Wall WiFi Access Point Wireless Socket AP for Hotel WiFi Project Support AC Management RJ45 RJ11 WPS EncryptionUS$ 15 - 20MOQ: 1 Piece
Brand Name
OUTENGDA
Place of Origin
China
Model Number
M305
Type
Wireless
Function
Firewall
Products Status
Stock
Application
Soho
WAN Ports
1
LAN Ports
Other, 1
Standard 802.3af 48V PoE in Wall Wireless AP Router WiFi High Power Access Point
Product No.: M305
Power supply: 802.3af 48V POE
- European 86 type wall outlet compatibility Design
- Complies with IEEE 802.11n wireless LAN speed up to 300Mbps

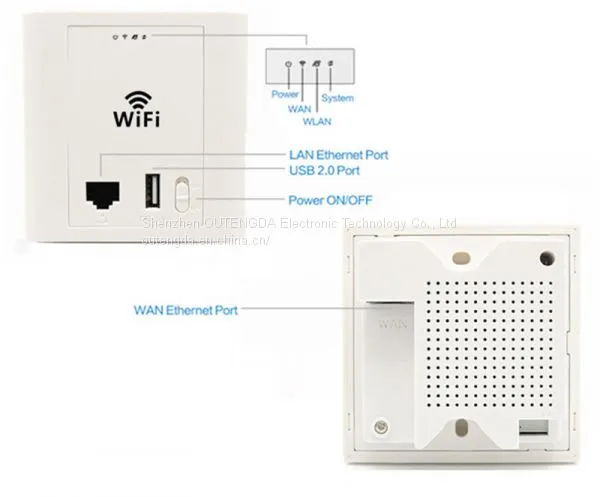

- 2 x RJ45 LAN/WAN Ports, 1 x USB2.0 Port
- 2T2R MIMO technology for enhanced throughput and coverage
- Easy deployment with standard 48V PoE support

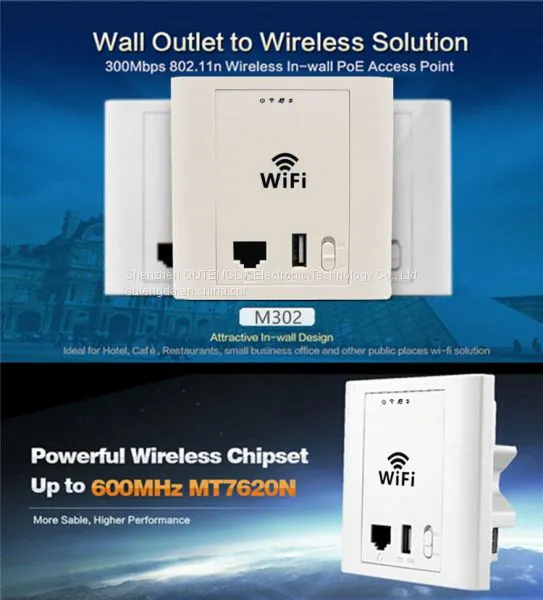

- 600MHz MTK7620N 2T2R Chipset, 64MB SDRAM Chip
- 48V Power over Ethernet for 70 meters flexible deployment
- Gateway/AP/Repeater Mode supported

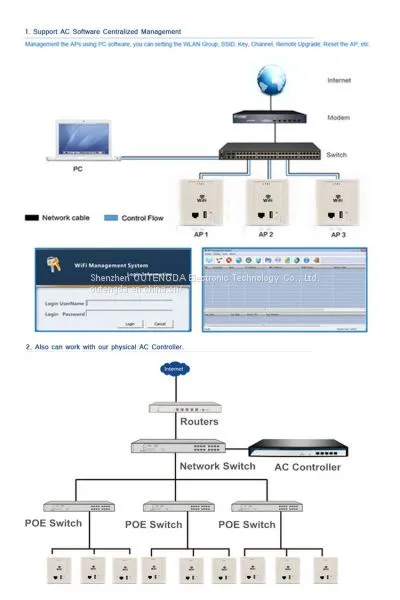

- Support both AC software and hardware for Centralized management
Specificatons
Hardware | |
MCU Chipset |
MTK7620N |
RF |
2T2R MIMO 802.11N |
SDRAM |
64MB |
Flash |
8MB |
Interface |
2 x RJ-45 for 10/100 Mbps(WAN/LAN, WAN support 48V PoE)
1 x USB2.0 Port
1 x Reset button(Reset & Factory Defaults)
1 x Power ON/OFF Switch
|
Power |
48V IEEE802.3af |
Antenna |
Internal 2dBi Omni ANT |
Product Dimensions |
86x86x35mm |
Product Weight |
0.2kg |
Wireless | |
Standard |
IEEE 802.11g, IEEE 802.11b, IEEE 802.11n |
Speed |
11b:1/2/5.5/11Mbps |
11g:6/9/12/18/24/36/48/54Mbps | |
11n:Up 300Mbps | |
Frequency |
2.4~2.4835GHz
U.S., Europe and Japan product covering 2.400 to 2.4835 GHz, programmable for different country regulations
|
Security |
WPA-PSK/WPA2-PSK,WPA/WPA2,64/128/152 WEP |
Channel |
1 ~ 13 |
Out Power |
802.11n:15dBm for OFDM mode
802.11g: 17dBm for OFDM mode
802.11b: 20dBm fro CCK mode
|
Modulation |
OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
|
Sensitivity |
11n : -70dBm@10% PER
11g : -70dBm@10% PER
11b : -85dBm@8% PER
|
Software | |
Work Mode |
Access Point / Repeater /Gateway |
Wireless Function |
Auto-Channel selection
Distance Control (802.1x Ack timeout)
Multiple SSID (4 SSID)
WDS AP / WDS Bridge
BSSID
|
Security |
WEP Encryption-64/128/152 bit
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
Hide SSID
MAC/IP Address &URL filtering
Wireless STA (Client) connected list
|
DHCP |
DHCP Server, DHCP Client |
Network |
Port Mapping, DMZ Host, Statics Routing, DDNS,UPNP |
Firewall |
IP Address/Port/MAC/URL Filter, ANI-DoS, |
Management |
Firmware Upgrade and backup, factory Reset, Restart, WEB management, log management, the PING tool |
OS Support |
Windows XP/XP64/Vista/Vista64, Windows 7/Windows7 x64, MAC OS, Linux |
Package contents
1x M305 wireless ap
2x Screws
1x User Guide
1x Warranty Card
