OUTENGDA 24 Port 10/100m Poe Switch 12~15v With 23 POE Ports for Wifi ap Router, IP Camera Etc
US$ 80 - 130
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OUTENGDA
Place of Origin:
China
Model Number:
M1012D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
3 days
Related Products
-
24 10/100Mbps POE Switch Standard 802.3af/at 48V Switch With 2 1000Mbps UPlink and 2 Gigabit SFP for IP Camera, WirelessUS$ 188 - 388MOQ: 1 Piece -
8+1 Ports 10/100M POE Switch 12~15~24V Poe Network Switch With 8 Poe Ports 1 Uplink for Wireless AP, IP Cameras EtcUS$ 35 - 95MOQ: 1 Piece
-
Dual Band IEEE 802.11ac 2.4GHz/5GHz In-wall Wireless Wi-Fi Access Point Socket Wifi AP RouterUS$ 25 - 45MOQ: 1 Piece
-
Standard 802.3af 48V PoE in Wall Wireless AP Router WiFi High Power Access Point With USB Charging FunctionUS$ 15 - 35MOQ: 1 Piece
-
300M 120 IN-Wall Wireless AP for Hotel Domitory Office Rooms USB Charge Interface Access Point Socket WiFi Extender RouUS$ 18 - 30MOQ: 1 Piece
Brand Name
OUTENGDA
Place of Origin
China
Model Number
M1012D
Certification
CE
Function
POE
Products Status
Stock
Transmission Rate
10/100Mbps
Switch Capacity
1.8G
Communication Mode
Full-Duplex & Half-Duplex
Ports
24
2017 Direct Selling Rushed Stock 24 port 10/100m Poe Switch 12~15v with 23 POE Ports for Wifi ap rouer, IP camera etc
Product Model: M1012D

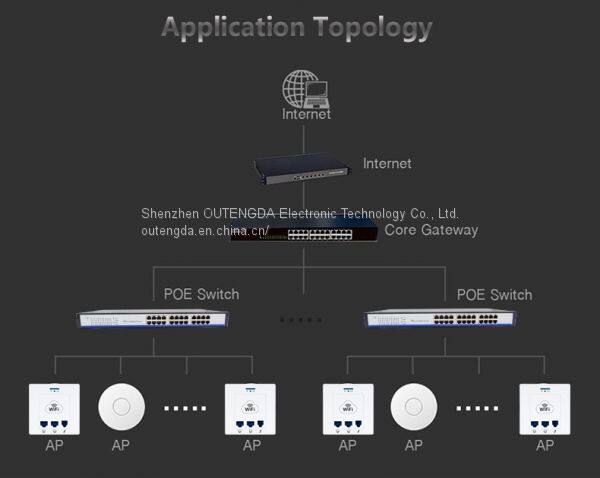

Used for wireless AP, ip camera, IP telephone, wireless bridge, IP print server
(your device must support passive poe)
Descriptions
This is a professional 12~15V 24 port poe switch. 1 uplink with 23 poe ports. POE output voltage 12v. Power pin 4/5+,7/8-. It greatly helps low the cost for wiring. Only need a cat5 cable. Then power&data will be transport.
Features
1. Complies with IEEE 802.3 IEEE 802.3u standards
2. 23 POE Ethernet power supply port, each port can provide 5W power
3. UTP port support automatic negotiation function, automatic adjustment transmission mode and transmission rate
4. compatible with Ethernet application, Internet system, reduce the cost of network
5. Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port
6. Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput
7. Support MAC address auto-learning and auto-aging
8. LED indicators for monitoring power, link/activity
9. Steel case
Specifications
Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3x flow control |
protocol | CSMA/CD |
Transmission Rate | Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port Fast Ethernet 100Mbps (half duplex),200Mbps (full duplex); 100BASE-TX :148800pps/port |
Topology | Star |
Network Medium | 10Base-T:Cat 3 or above Cat.3 UTP(≤100m) 100Base-TX:Cat 5 UTP(≤100m) |
Support VLAN | No |
Number of Ports | 24 10/100M RJ45 ports |
POE Ports | 23 POE Ports |
UPLINK | 1 UP-Link port |
Transmits Method | Store-and-Forward |
Over Voltage/Current/Short Protection | The output can be shorted permanently without damage |
Temperature | Operating Temperature 0 C~40 C (32 F~104 F) Storage Temperature -40 C~70 C (-40 F~158 F) |
Humidity | Operating Humidity 10%~90% non-condensing Storage humidity 5%~95% non-condensing |
Switch capacity | 4.8G |
LED Indications | 1* power LED(Power: Green) 24* port LEDs(Link/Act: Green) |
POE Supply Power | 12~15V |
Dimension(W x H x D) | 440*180*44mm |
Case Material | Steel case |
Packing list:
POE Switch*1
Power Line*1
Setting accessary*1
User manual*1
