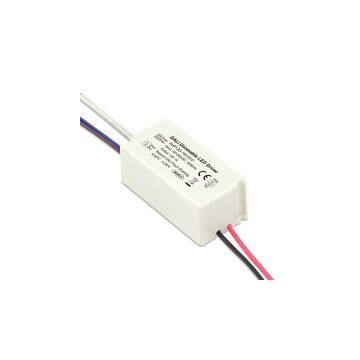

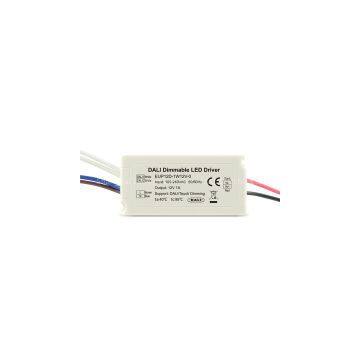

100-240VAC 12W 12VDC 1A 1channel Constant Voltage Dali Dimmable Led Driver EUP12D-1W12V-0
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
EUCHIPS / OEM / ODM
Place of Origin:
China
Model Number:
EUP12D-1W12V-0
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
12-48VDC 350mA 1 Channel Dimmable Constant Current Dali DecoderNegotiableMOQ: 5 Pieces -
200-240VAC 75W 12VDC Constant Voltage Dimmable Led Driver EUP75D-1H12V-0NegotiableMOQ: 1 Piece
-
100-240VAC 135W 12VDC DALI Constant Voltage Led Dimmable DriverNegotiableMOQ: 1 Piece
-
100-240VAC 150W 24VDC 6.25A 1 Channel Constant Voltage Dali Led DriverNegotiableMOQ: 1 Piece
-
100-240VAC 250mA 1 Channel Dali Bus Power SupplyNegotiableMOQ: 1 Piece
Brand Name
EUCHIPS / OEM / ODM
Place of Origin
China
Model Number
EUP12D-1W12V-0
Feature
1. Single channel constant voltage 12VDC output
2. Meet DALI Protocol IEC62386
3. Support Touch DIM function and can be dimmed manually
4. Wide range voltage Input 100‐240VAC
5. High efficiency: up to 80%
6. Dimming effect smooth, no flicker
7. Over load protection , over voltage protection
Techncial Parameter
Input Voltage: 100-240VAC
Input Frequency: 47-63HZ
Efficiency: ≧80%
Power Factor(Type): ≧0.5 (@220V)
Leakage Current:<1mA @240VAC
Inrush current: 12A@230VAC
Output Voltage: 12VDC
Output Current: 1A
Output Power: 12W
Voltage Tolerance: ±3%
R & N(max): 120mVp-p
Channels: 1 channel
More information at www.euchips.com
