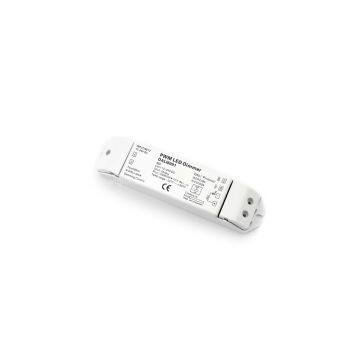

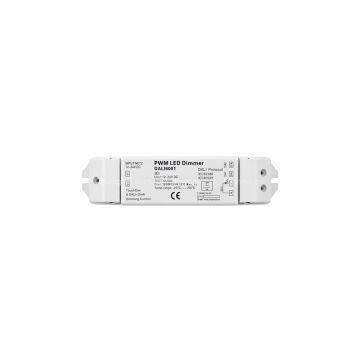

12-24VAC 10A 1 Channel Constant Voltage DALI Decoder DALI6001
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
EUCHIPS / OEM / ODM
Place of Origin:
China
Model Number:
DALI6001
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
5VDC 250mA DALI Master Controller DALI-100NegotiableMOQ: 1 Piece -
100-240VAC 12W 12VDC 1A 1channel Constant Voltage Dali Dimmable Led Driver EUP12D-1W12V-0NegotiableMOQ: 1 Piece
-
12-48VDC 350mA 1 Channel Dimmable Constant Current Dali DecoderNegotiableMOQ: 5 Pieces
-
200-240VAC 75W 12VDC Constant Voltage Dimmable Led Driver EUP75D-1H12V-0NegotiableMOQ: 1 Piece
-
100-240VAC 135W 12VDC DALI Constant Voltage Led Dimmable DriverNegotiableMOQ: 1 Piece
Brand Name
EUCHIPS / OEM / ODM
Place of Origin
China
Model Number
DALI6001
12-24VAC 10A 1 channel constant voltage DALI decoder DALI6001
Feature
1. PWM output current: MAX 5A/CH
2. DALI Digital control input, Dimming control LED module
3. Addressing output channel
4. Support Touch DIM function, and can be dimmed manually
5. Dimming range is from 0-100% (LED Will start from 1% )
6. Used for DC Power supply
7. Over-temperature protection
8. Security level: 2
9. Single channel 12-24VDC constant voltage output
Technical Parameter
Input voltage range: 12-24VDC
Touch DIM AC input voltage range: 5-290VAC
Touch DIM AC input voltage frequency range: 45-65HZ
12-24 V DC Input current: 5A/CH
Output power: 1 x60-120W
Output voltage: 12-24VDC
Output current: 5A/CH
Peak current: 6A/CH
More information at
