Home > Products > DMX Series > 6VDC DMX512 2 channel dmx touch panel controller DMX-P06

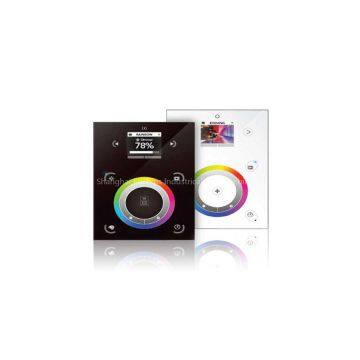

6VDC DMX512 2 channel dmx touch panel controller DMX-P06
- 100000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
25W 350/500/700mA 1 channel 1-10v constant current dimmable led driver EUP25A-1WMC-1
-
30W 350/500/700/1050mA 1 channel triac constant voltage led dimmable driver EUP30T-MC-0
-
100-240VAC 3.75A 3 channel 12VDC 135W dimmable constant current dmx decoder EUP135M-3W12V-0
-
12-48VDC 350mA 1 channel dimmable constant current dali decoder
-
12-24VDC 216-432W 6A 3 channel constant voltage dimmable dmx decoder
-
12-24VDC 120-240W 0-10V constant voltage led dimmer
Product Details
| Brand Name | EUCHIPS / OEM / ODM | Place of Origin | China | |
| Model Number | DMX-P06 |
Product Description
Feature
1. DMX512 Stand Alone Controller with a glass face
2. 512*2 DMX channels in stand alone or PC mode
3. Stand alone mode with 10 areas and 50 scenes per area.
4. Touch sentitive buttons and graphical color LCD display.
5. USB and Ethernet Connection, program by PC software
6. Clock & calendar triggering function
7. Micro SD card memory for stand alone use
8. Ready to use（pre-loaded with 8 scenes）
9. 8 dry contact trigger
10.Compatible with any DMX fixture or DMX LED driver.
11. Wall mountable.
Technical Parameter
Input Voltage: 6VDC
Power Consumption: <4W
USB Connection: USB for PC software
DMX Output #1: First universe, 512 channels
DMX Output #2: Second universe, 512 channels
Ethernet: Advanced networking features
Memory: Micro SD card memory
Output channels: 512*2 channels
Dry contact trigger ports: 8
Transmission signal: DMX512(1990)
More information at www.euchips.com & www.euchips.net
