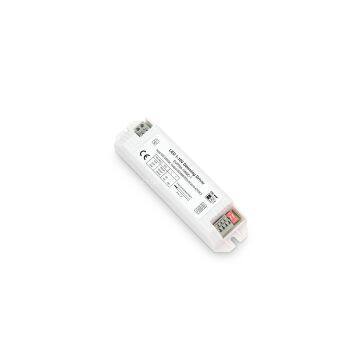

20W 300/500/700mA 1 channel 1-10V constant current dimmable led driver EUP20A-1WMC-1
Feature
1. Single channel output, output current level selectable by DIP S.W.
2. Support 1-10V analog dimming signal, Passive or active signal.
3. Wide range of input voltage 100VAC ~ 240VAC
4. High efficiency up to 83%
5. Built-in active PFC function
6. 100% output when no dimming signal input, can be used as normal power supply
7. Dimming effect smooth, no flicker
8. Protections: Short circuit.
9. Suitable for indoor LED lighting application
Technical Parameter
Product Name: 20W 300/500/700mA 1 channel 1-10V constant current dimmable led driver
Item: EUP20A-1WMC-1
Output Current: 300/500/700mA
Output Power: 20W
Current Accuracy ±5%
R & N (Max) 75mAp-p
Channels : 1 channel
Voltage Range: 100VAC – 240VAC
Frequency Range: 47 – 63Hz
Efficiency(Typ): 83%
Power Factor(Typ): ≧0.9
AC Current(Typ): 0.11A@230VAC
Leakage Current:<5mA/240VAC
Inrush current(Typ):<1A at 230VAC
Current consumption of 1-10V signal: ≤0.25mA
More information at www.euchips.com
