Home > Lights & Lighting > Lighting Fixtures > Dimmer > 30W 350/500/700/1050mA 1 Channel Triac Constant Voltage Led Dimmable Driver EUP30T-MC-0

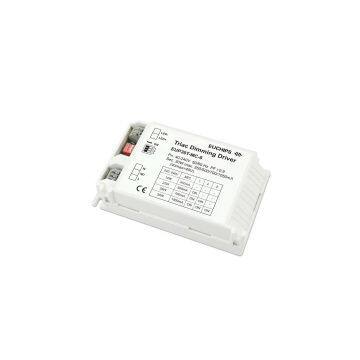

30W 350/500/700/1050mA 1 Channel Triac Constant Voltage Led Dimmable Driver EUP30T-MC-0
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
EUCHIPS / OEM / ODM
Place of Origin:
China
Model Number:
EUP30T-MC-0
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
40-240VAC 75W 12VDC Constant Voltage Triac Led Dimmable Driver EUP75T-1H12V-0NegotiableMOQ: 1 Piece -
200-240VAC 75W 24VDC Waterproof Constant Voltage Led Dimmable DriverNegotiableMOQ: 1 Piece
-
40-240VAC 12W 12VDC 1A 1 Channel Triac Dimmable Constant Voltage LED DriverNegotiableMOQ: 1 Piece
-
40-240VAC 24VDC 75W Triac Constant Coltage Dimmable Led DriverNegotiableMOQ: 1 Piece
-
12-24VDC 15A 1 Channel Triac Constant Voltage Dimmer DIM105US$ 34.2 - 34.2MOQ: 5 Pieces
Brand Name
EUCHIPS / OEM / ODM
Place of Origin
China
Model Number
EUP30T-MC-0
Features
1. Multi-current driver supplied with Dip-switch for the selection of the out current
2. Support Leading edge(Triac) and Trailing edge(ELV) Dimmer
3. Active Power Factor Corrector, PF:>0.9
4. High efficiency: up to 81%
5. Output short-circuit with auto-reset
6. IP20 independent driver, for indoor use
Technical Paramter
Product Name: 30W 350/500/700/1050mA 1 channel triac constant voltage led dimmable driver
Item: EUP30T-MC-0
Output channel: 1 channel
Input voltage: 220-240 VAC
Input current: 160~180mA
Input frequency： 50/60Hz
Dimming voltage range： 40-240 VAC
Output current：350/500/700/1050mA
Output power: 30W
RF: >0.90
Efficiency: 81%
More information at &
