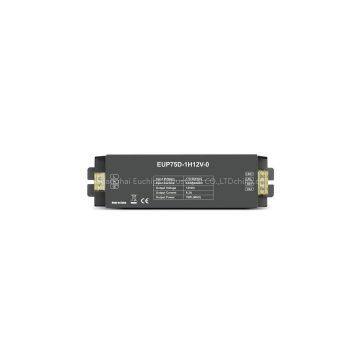

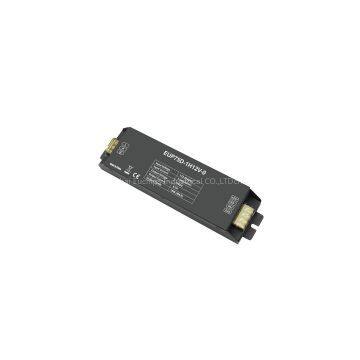

200-240VAC 75W 12VDC Constant Voltage Dimmable Led Driver EUP75D-1H12V-0

200-240VAC 75W 12VDC Constant Voltage Dimmable Led Driver EUP75D-1H12V-0 thumbnail-1
200-240VAC 75W 12VDC Constant Voltage Dimmable Led Driver EUP75D-1H12V-0 thumbnail-2
200-240VAC 75W 12VDC Constant Voltage Dimmable Led Driver EUP75D-1H12V-0 thumbnail-3
200-240VAC 75W 12VDC Constant Voltage Dimmable Led Driver EUP75D-1H12V-0 photo-1
200-240VAC 75W 12VDC Constant Voltage Dimmable Led Driver EUP75D-1H12V-0 photo-2
200-240VAC 75W 12VDC Constant Voltage Dimmable Led Driver EUP75D-1H12V-0 photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
EUCHIPS / OEM / ODM
Place of Origin:
China
Model Number:
EUP75D-1H12V-0
Contact Supplier Request Quote Chat Now
Shanghai Euchips Industrical CO.,LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name EUCHIPS / OEM / ODM
Place of Origin China
Model Number EUP75D-1H12V-0

200-240VAC 75W 12VDC constant voltage dimmable led driver EUP75D-1H12V-0
Feature
1. Single channel constant voltage, 12VDC output
2. Meet DALI Protocol IEC62386
3. Support Touch DIM function
4. Wide range voltage Input 175-264VAC
5. High efficiency: up to 86%
6. Output short circuit protection, over current protection, over voltage protection
Technical Parameter
Product Name：200-240VAC 75W 12VDC constant voltage dimmable led driver
Item: EUP75D-1H12V-0
Output Voltage: 12VDC
Output Current: 6.2A
Output Power: 75W
Voltage Tolerance: ±3%
R & N(max): 120mVp-p
Input Voltage； 200-240VAC
Frequency Range: 47–63Hz
Efficiency(Type): ≧86%
Power Factor(Type): ≧0.5 (@220V)
Input Current: 0.9A@230VAC
Leakage Current:<2mA @240VAC
More information at www.euchips.com & www.euchips.net
