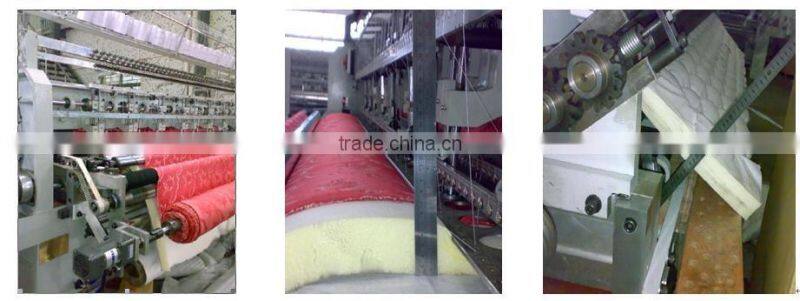

Shuttle Multi Needle Quilting Machine

Specifications

Product Description
CSDB110"-2 digital control quilting machine
1. D: Digital control model; B: Big shuttle (HQ10)
2.110": 110inch width (2794mm)
3.2: Two needle row
4. Overall dimensions: 5300*1100*1650mm (SGS& CE& ISO9001)
5: Weight: 3700kg
6: Running speed: 200-500r/m
7: Needle distance: 25.4mm
8. Rating power: 3.5kw
9.Thickness and pattern size:

10.Thickness of the filling can be quilted 200-600g/m2

4-5cm foam (density 1-26) quilting effect is good(180-360degrees pattern )Pattern size :2inch to 6inch

3cm-1cm foam (density 1-26 )quilting effect good (180-360degrees)

Pattern size :1inch to 6inch

Main features:This quilting machine Adopting digital control program.
*Saddles and rollers driven by Panasonic servo devices.
*The revolution of the spindle controlled by Panasonic frequency conversion control devices.
*Large number of built-in quilting patterns for your choice.
*Easy and quick make new designs.
*360 degrees quilting
*Tack and jump function included
*stitches between 2mm-6mm adjustable.
*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.
*Simulation display of quilting.
*Automatic needle raising and location brake system.
