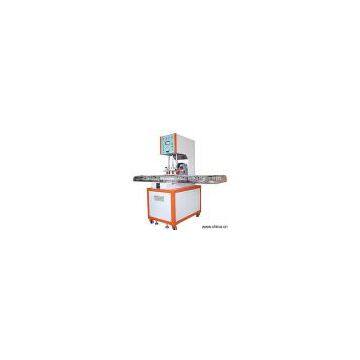

Sell High Frequency Plastic Welder

Model No.:WS-8000S
Product Origin:China
Brand Name:RIJIN
Price Terms:
Payment Terms:T/T
Certification:
Description:Features: 1) NL-5557 anti-spark vacuum tube protection device 2) With double sides skates, accurate position and flexible action 3) It is suitable for single and double-side plastic packing, printing and leather printing 4) Model: WS-4000S / WS-5000S / WS-8000S / WS-10000S / WS-15000SD 5) Power Output: 4,000W/ 5,000W/ 8,000W/ 10,000W /15,000W 6) Voltage 50 / 60Hz, AC 380V, 3P 7) Power input: 7kVA / 9kVA /15kVA / 18kVA / 25kVA 8) Rectifier: silicon rectifier 9) Oscillation tube 7T84RB / 7T85RB / E3185 / 7T69RB / E3069 8T85RB / E3130 10) Anti-spark thyratron tube: NL5557 11) Pressure way: air pressure 12) Gap of electrodes: 250mm / 150mm / 150mm 13) Dimensions of upper board: 200 x 350 / 200 x 350 / 400 x 600 / 600 x 800 / 700 x 900mm 14) Dimensions of lower board: 400 x 600 / 400 x 600 / 600 x 800 / 800 x 1,000 / 800 x 1,000mm 15) Overall dimensions: 660 x 1,350 x 1,730 / 660 x 1,350 x 1,730 / 1,000 x 1,800 x 2,500 / 1,000 x 1,800 x 2,500 / 1,000 x 1,800 x 2,500mm 16) N.W: 400kg / 400kg / 500kg / 700kg / 900kg
