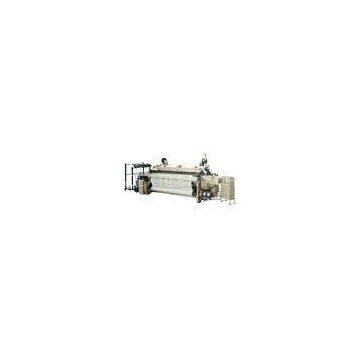

Full Electronic Rapier Loom, High Speed flexible Weaving Loom Machine automatic loom HYRL-1726
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Speed Rapier Loom With Electronic Jacquard shuttless loom
-
High Efficiency Glass Fiber Flexible Rapier Loom For Weaving Plain Cloth Twills textile machinery
-
Flexible Low Speed Rapier Looms , Weaving Loom Machine For Crude Fibre
-
Automatic Shuttleless Looms Machine, Flexible Rapier Loom Equipment weaving loom
-
Five-angle Roller Mechanic Jacquard Flexible Rapier Loom With Leno Device with tuck in weaving machi
-
Automatic Flexible Weaving Rapier Loom Machine, Shuttleless Looms With Tappet loom
Product Details
| Brand Name | Wiltoptex | Place of Origin | China | |
| Model Number | HYRL-1726 |
Product Description
Full Electronic Rapier Loom, High Speed flexible Weaving Loom Machine
HYRL-1726 Rapier Loom is designed and manufactured to meet the requirements of the weaving industry on the basis of the HYRL-1724 . It is more flexible and applicable .
This loom adopts rotary electronic dobby , continuous let-off and take-up system , suspension guide hook . Perfect electronic control, menu-type program, and practical memory card. During the weaving it allows to have as many as 8 weft densities,and accordingly 8 settings of tension. For the special loom and necktie jacquard loom it is possible even to set a warping-stop function,so this loom is much more versatile and flexible in use.
Main specification:
|
Reed width |
190cm |
210cm |
230cm |
280cm |
360cm |
|
Max. weft insertion rate (m/min) |
530-685 |
588-714 |
644-782 |
650-875 |
750-1008 |
|
Speed (rpm) |
280-360 |
280-340 |
280-340 |
232-312 |
208-280 |
|
Yarn range |
Cotton6NE—80NE,wool 10Nm—135Nm,chemical fiber 900D—70D |
||||
|
Shedding |
Mechanical dobby or electronical dobby |
||||
|
Weft insertion form |
Separate reeds positively driven by conjugate cams at both ends |
||||
|
Beating-up motion |
Separate slay bars positively driven by close conjugate cams at both ends |
||||
|
Let-off motion |
Continous let-out of warp by compound regulating system |
||||
|
Take-up |
Positive continuous take-up motion with weft density regulators |
||||
|
Weft selection |
Electrical color choosing device; max.8 weft colors. |
||||
|
Diameter of warp beam |
600mm |
||||
|
Warp stop |
6 rows electric warp stop |
||||
|
Weft stop |
With piezoelectric sensor control weft stop |
||||
|
Power consumption |
4.8KW |
We can manufacture according to customer\'s requirements.
