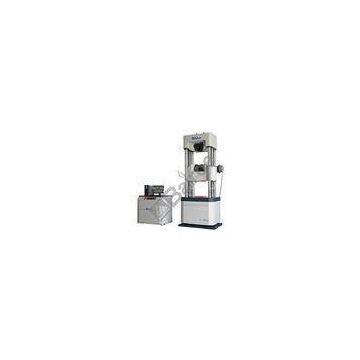

HUT-1000B Hydraulic Servo Universal Testing Machines, High Accuracy, Worm and Gear

Delivery Time:A month
Certification:ISO 9001, CE

HUT-1000B Hydraulic Servo Universal Testing Machines, Computerized Tensile Testing machine

Applicable to tension on metal bar, plate and threaded iron, or high speed wire rod, steel strand (related accessories required), tension on high strength, high hardness metals and compression on metals or concrete. This series is also capable of both static tensile, compression tests and quasi-dynamic tests including low-cycle fatigue tests. The HUT-2000B series of microchip controlled Electro-hydraulic servo universal testing machines is mainly designed for tension, compression, bend, shear on metal, and non-metal materials. This product series features a bottom-mounted hydraulic cylinder; electrically adjusted test space, hydraulically powered automatic grip, adjustable four-column mainframe. It is competent to fulfill the requirements of application fields such as road, bridge construction, construction materials, quality control department, science and research department, iron forging, higher education, etc. This product features a firm structure as well as steady loads, precise controls and is intuitive to operate. It adopts the leading high-performance AEC-1000 Controller, which is usually equipped on high-end material testing machines. The mechanical components collaborate with the pioneered modular Test Live computer testing software to ensure the stability, precision and reliability of the whole system. The hydraulic system is upgraded with a speed withdraw unit to promote testing efficiency. This product complies with the standards and requirements of GB/T 228-2002, GB/T 7314-2005 etc.

Technical Specifications:

Model	HUT-1000B

Capacity

1000kN

Load measurement range

1%～100%

Load measurement accuracy

±0.5% / ±1%

Load resolution

±1/500000 of Max capacity, no stepping, no change in full scale

Extensometer

Standard 25mm, 50mm, Optional 100mm, extension scale up to 50%

Deformation measurement range

1%～100%F.S.

Deformation measurement accuracy

±0.5%

Deformation resolution

±1/500000 of Max capacity, no stepping, no change in full scale

Crosshead displacement measurement accuracy

±0.5%

Crosshead speed adjustment Range

0.1～90mm/min

Crosshead speed accuracy

±0.5% / ±1%

Deformation speed adjustment range

0.005%～1.6%F.S./s

Deformation speed accuracy

±0.5%/±1%

Loading speed adjustment Range

0.01%～3%F.S./s

Loading speed accuracy

±1%(speed<0.1%F.S./s), ±0.5%(speed≥0.1%F.S./s)

Number of columns

6

Piston quick fall speed

800 mm/min

Compression Platens

φ175 mm

Round Sample Diameter

φ20~φ40

Φ40~φ60 (mm)

Flat Sample Thickness

0~40 (mm)

Grip distance

710mm

Compression space

700mm

Power supply

4kW/AC380V/50Hz

Main frame dimensions

(850×640×2450)mm3

Hydraulic power un
