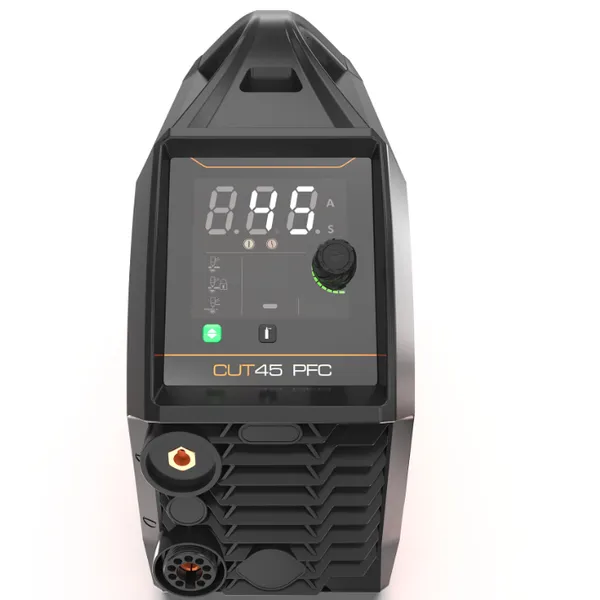

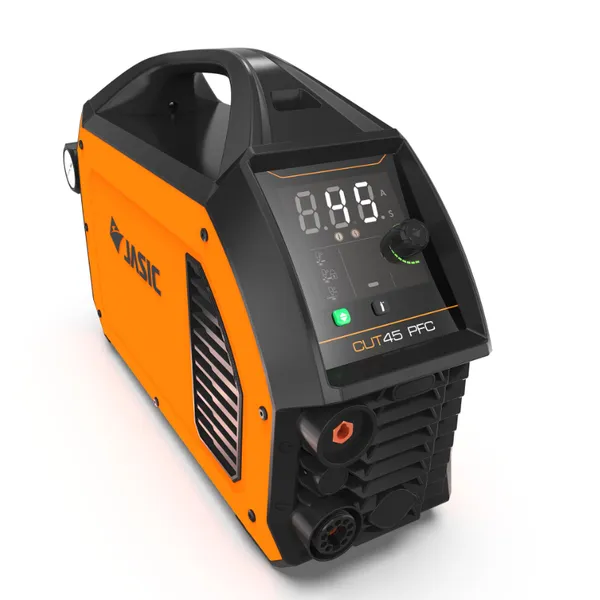

EVO20 CUT 45 PFC L2S42
JASIC EVO20 CUT 45 PFC offers professional cutting performance.
· Quality cut up to 14mm and 25 mm severance
· HD digital panel with ClearVision tech
· SurePlasma technology for consistent arc ignition performance with different torch lengths
· Mesh cutting for perforated metal
· Non HF arc ignition and pilot arc
· Improve overall energy efficiency with power factor correction (PFC)
| CUT45 PFC L2S42 | |||
| Input power | AC95～265 V, 50/60 Hz | ||
| 115 V | 230 V | ||
| Open circuit voltage | 300 V | ||
| Rated input current | 31A | 23 A | |
| Rated input power capacity | 3.6 kVA | 5.3 kVA | |
| Output current range | 20～30 A | 20～45 A | |
| Arc starting | NHF | ||
| Rated duty cycle | 25% | ||
| Good cutting (carbon steel)/@400mm/min | 5 mm | 14 mm | |
| Severance (carbon steel) | 12 mm | 25 mm | |
| Efficiency | 86% | ||
| Power factor | 0.99 | ||
| Idle state power | ＜50 W | ||
| Protection class | IP23S | ||
| Insulation class | H | ||
| Dimensions L×W×H | 546×166×341 mm | ||
| Net weight | 10 kg | ||
