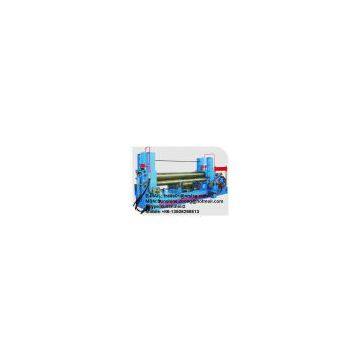

HDLW11S-TOP ROLLER ALL DIRECTIONAL ADJUSTABLE PLATE ROLLING MACHINE
The movement of each roller of HDLW11S
Top roller can make vertical movement (move up to down) as well as level movement (move from left to right). The vertical movement is driven by hydraulic oil cylinder while the level movement is driven by worm gear, worm, nut and lead screw (screw rod).
The lower roller makes rotation movement, which driven by reducer
HDLW11S-UPPER ROLLER UNIVERSAL PLATE ROLLING MACHINE
The features of HDLW11S:
1. high precision end pre-bending
2. NC control, high productivity
3. integral structure, simple foundation and easy to move
4. high safety
5. abundant bending shape
Advantages:
1. The rolled working piece (the rolled shell) is in high straightness accuracy. The top roller is drum-shape, matching up with support roller adjusting, which can roll both thick and thin steel plate in to cylinder in high straightness accuracy. The high straightness accuracy is very important to assure of making welding work easier.
2. Use the rear bending process and eliminate the front relief angle, which make the rolled cylinder in good roundness.
3. Pre-bending the plate end through direct pressure-adding, which can control the left flat end very effectively.
|
Item |
Content |
||
|
Bearing |
Type |
Double-row self-aligning roller bearing |
|
|
Manufacturing |
wafangdian |
||
|
Working roller |
Material |
42CrMo/45# |
|
|
rigidity |
HB260-300/HB215-260 |
||
|
manufacturer |
Nangang forging |
||
|
Chassis and frame |
Frame material |
Q245 |
|
|
Processing way |
welding structural parts, annealed treated and processed by CNC boring and milling machine |
||
|
manufacturing |
Our own workshop |
||
|
reducer |
type |
reducer |
|
|
manufacturer |
Our own company |
||
|
Electric system |
Zhengtai |
||
|
Hydraulic system |
Oil pump station |
type |
Gear pump |
|
manufacturer |
Changyuan hefei |
||
|
valve |
manufacturer |
YUKEN |
|
|
Main oil cylinder
|
Oil cylinder and piston |
45#,tempering and quenching at HB217-260. |
|
|
manufacturer |
Our own facotry |
||
|
Main sealment |
AILATE |
||
|
manufacturer |
AILATE(German-funded) |
||
|
CNC system (cost-efficient ) |
Programmable display |
DELTA(taiwan) |
|
|
PLC Programmable controlled |
DELTA(taiwan) |
||
|
Displacement sensor |
Xinhe guangzhou |
