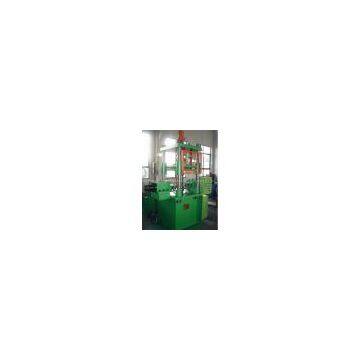

1. This equipment is of compact structure, and space efficient as well as easy installation. The main structure is gear coupling transmission, and spinning it from center to edge. It compose of gear coupling transmission, adjusting device, location device and module, spinning system including spinning wheel, forming wheel, clamping device and reducer parts.
This equipment is cost-efficient for processing and the advanced composite die is adopted in this machine, so a lot of dies are not necessary when manufacturing and it can save many funds as well as the materials resource for die making.
It solves the problem of too-heavy for dies, difficult to change tire, high cost for processing and so on. And the parts been processed is of good clean, no deformation, no oval-shape.
It is of stable performance, small investment, extensive range of application, high-productivity, one-time forming and other advantages, which is the pretty good choice for draught fan enterprises.
1. Center height of main axle 400mm
2. Distance between top points 1200mm
3. Main driving power) 18.5kw
4. Spinning speed step less adjusting 1500
5. Spinning wheel horizontal stroke 380 mm
6. Horizontal force for spinning wheel 80KN
7. Vertical stroke of spinning wheel 1000mm
8. Vertical force of spinning wheel 80KN
9. Max feeding speed longitudinal 4000mm/min
10. Max feeding speed latitude 6000mm/min
11. Tailstock stroke 400mm
12. Tail jack force 30KN
13. Ejection device trip 220mm
14. Ejection force 50KN
15. Blank opposite press device stroke 350mm
16. Hydraulic motor power (KW) 5KW
4. The features of machine
4-1 The machine has the functions of normal spinning, power spinning, necking spinning, expending spinning, side rolling, and side turning and scraping, which belongs to general type and multi-purpose machine.
4-2 It has the functions of working data’s input, calculate and edit. Also it can judge, correct and modify the out side sensor’s data.
4-3 It can draw movement curves and record them in the computer to have standard programmed.
4-4 It can show and record the movement of the spinning rollers, which also can directly control the machine tool to work. More it has the editing, modification, planning and saving functions.
4-5 the operator can input the working parameter and spinning number by keyboard and operating table, which is convenient to edit, save and use.
4-6 The traveling track of the spinning roller can be straight line,arc, multi circular arc connection line and their combination curves.
4-7 It has the mandrel shape’s “copy” protection function. It means that when the working process is adjusting and back showing, the spinning roller won’t touch the mandrel.
4-8 the machining condition of spinning workpiece is alternate. The chassis of the spinning roller frame could be installed any place of machine’s side surface.
4-9 when spinning there is functions for emergency break or suspending. There also adopts safe travel limit protection in control system by software and hardware limit protection. The fault detection and warning system are equipped.
