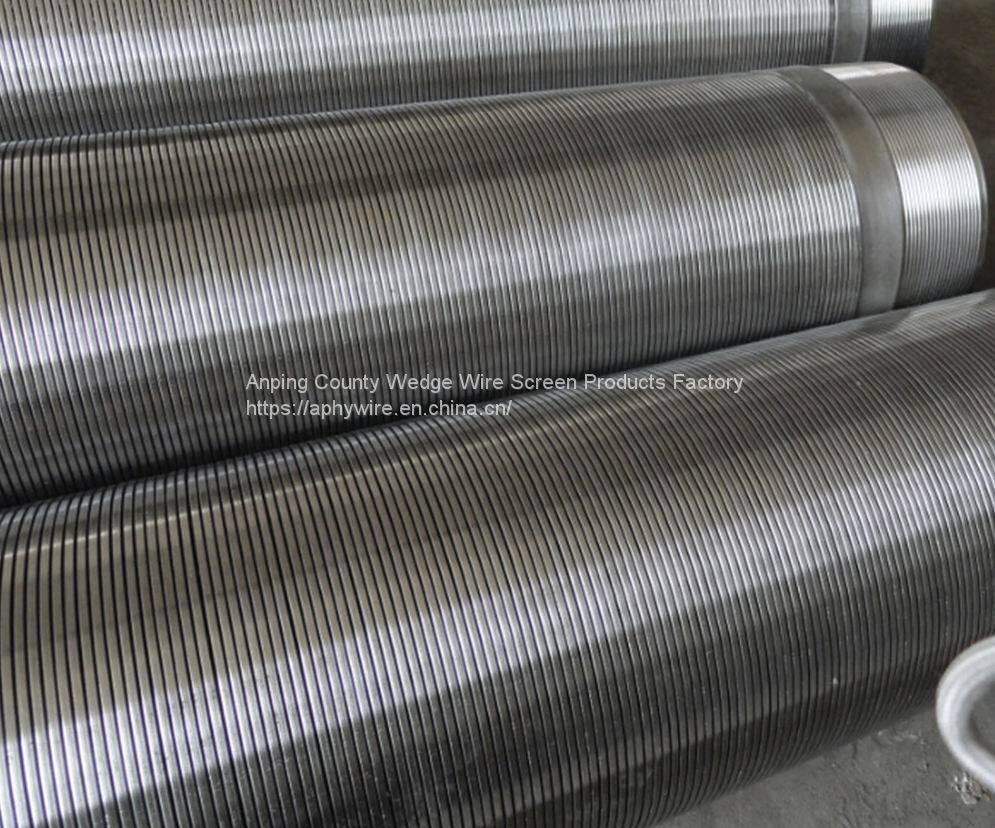

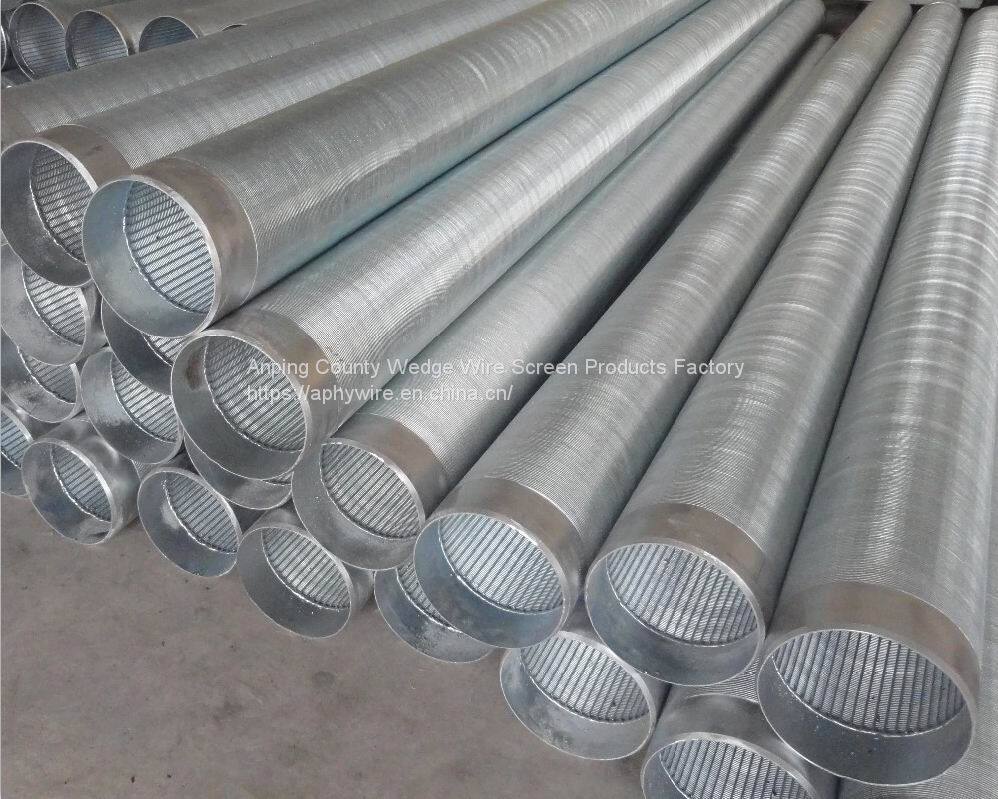

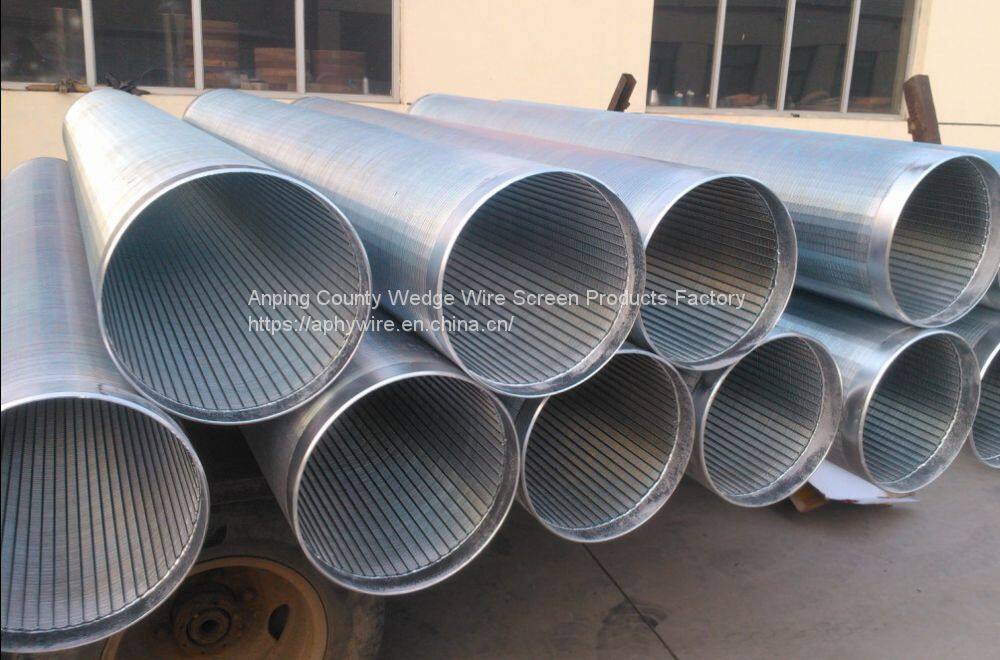

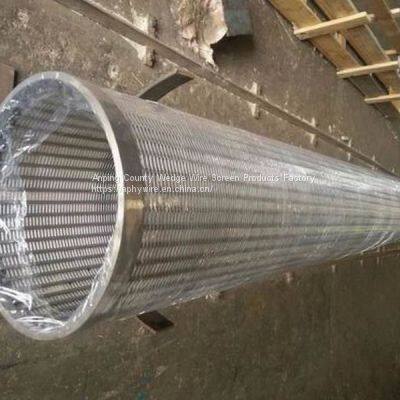

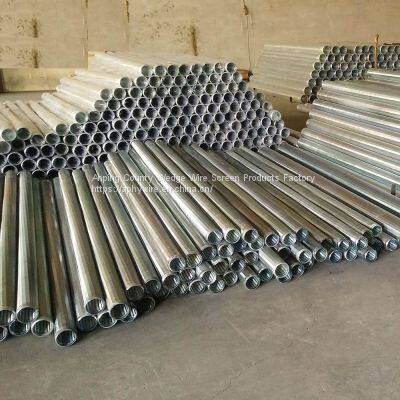

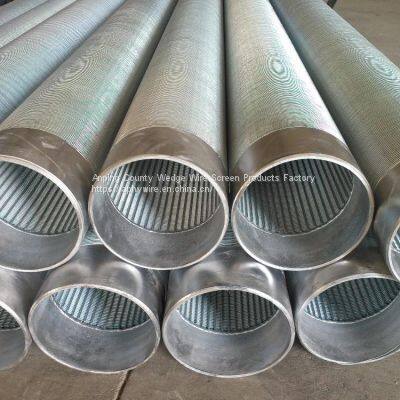

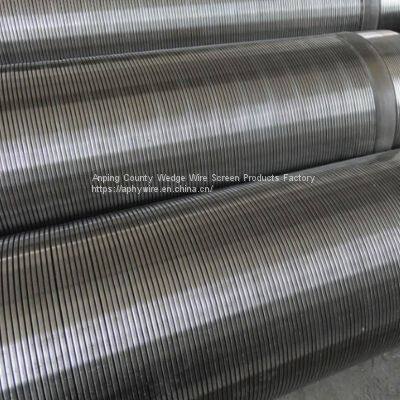

304 Stainless Steel Rod Based Continous Slot Wire Wrap Well Screens
Made of V-shape profile wire and longitudinal support rod, each intersecting point of the wires is fusion welded, so it has sturdy constriction and good mechanical property.
The V-shape section can avoid blockage and make sure of the unimpeded water. And the continuous slot have flexiable open area, that can reduce the speed of the water entering to avoid the sand entering the screen under the pressure, so it can filter sand better.
And also the slot size can changed according to different requirment.
It is widely used for water, oil, and gas wells, and is the dominant water well screen used in the water well industry.
Specification:
1.Material: stainless steel(304, 304L, 316, 316L etc.)
low carbon, low carbon galvanized steel(LCG),
2.Diameter: Normal size is 89mm 114mm, 168mm 219mm 245mm 273mm 325mm 406mm 426mm and etc.
More size can be made according to customer's requirment
3.Slot: 0.1mm, 0.2mm, 0.5mm, 0.75mm, 1mm, 1.5mm and etc.
Also can be made as customer's requirement.
4. Length: 1-6m (2.9 or 5.8m is suitable for container loading)
Advantage:
High flow rates
Non-clogging slot
Reduction cost in operating
Data reference table:
size | the inside diameter of | Outer | Internal | ||||
in | mm | In | mm | in | mm | In | mm |
2 | 51 | 2 | 51 | 25/8 | 67 | 23/4 | 70 |
3 | 76 | 3 | 76 | 35/8 | 92 | 33/4 | 95 |
4 | 102 | 4 | 102 | 45/8 | 117 | 43/4 | 121 |
5 | 127 | 5 | 127 | 55/8 | 143 | 53/4 | 146 |
6 | 152 | 6 | 152 | 65/8 | 168 | 7 | 178 |
8 | 203 | 8 | 203 | 85/8 | 219 | 91/4 | 235 |
10 | 254 | 10 | 254 | 103/4 | 273 | 113/8 | 289 |
12 | 305 | 12 | 305 | 123/4 | 324 | 133/8 | 340 |
14 | 356 | 131/8 | 333 | 14 | 356 | - | - |
16 | 406 | 15 | 381 | 16 | 406 | - | - |
20 | 508 | 18 3/4 | 476 | 20 | 508 | - | - |
PROFILE WIRE | ||||||||
WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
SUPPORT ROD |
| |||||
WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
---------------------------------------------------------------------------------------------------------------
Our factory located in Anping country, Hebei Province, China.
Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainess steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod basedc ontinuous slot screens, header and hub laterals & hub radial laterals etc.
