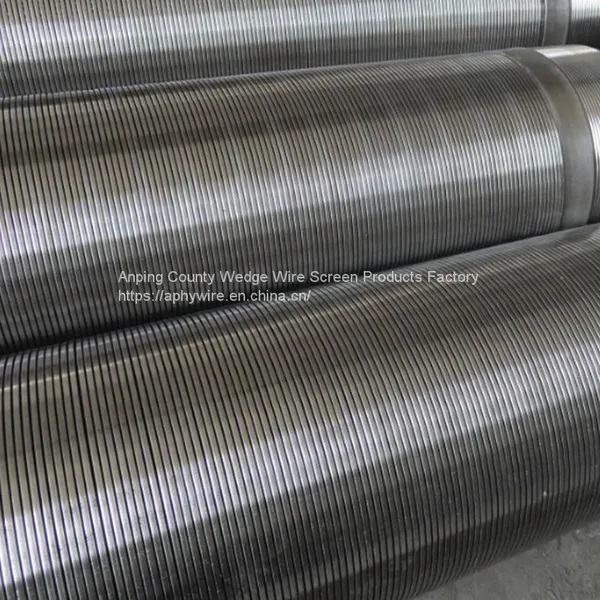

Looped Welded Profile Wire Screen

Rod Based Continuous Slot Welded Wedge Wire Screen

Looped Wedge Wire Screen

Welded Profile Wire Screen

produce name: v wire water well screens, wire wrapped screens pipe, Johnson Screen, spiral screen tube, welded wedge wire screen, reversed slot screen, continuous slot pre-pack, water filter, screen cylinders, stainless steel slot tube,reverse rolled screen, strainer pipe, continous slot wire wrap well screens, pipe base well screen, ribbed-type wire wrapped screen, stainlss steel or low carbon galvanized or mild steel wire screen, wire wrapped liner, woven wedge wire screen, slot wire screen tube, conical well screen, Suction strainers, strainer screens, wide slit screens, well point screens, PPS screen, oil screen tube

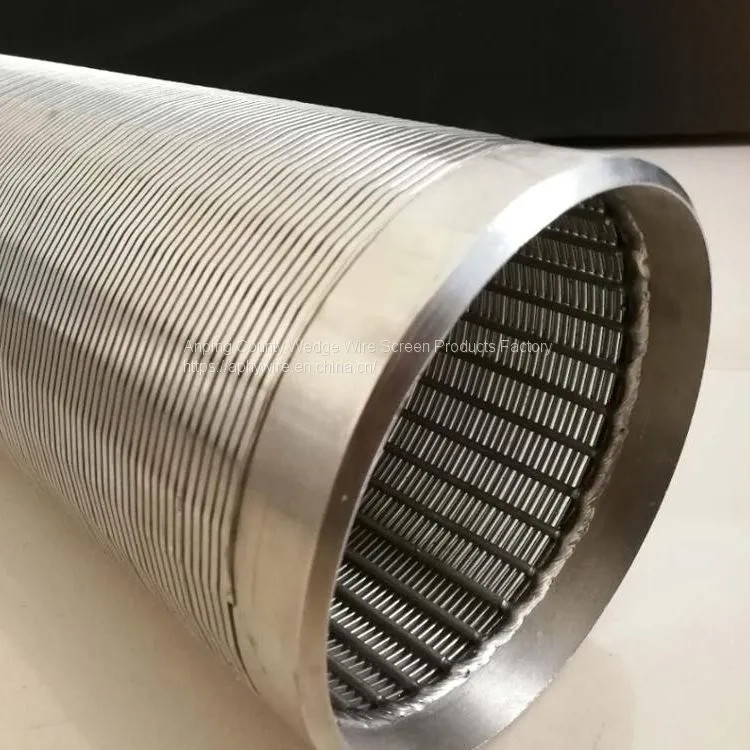

Wedge Wire screen cylinders can be designed with slot openings and wires running radially on the outside surface of the screen cylinder (above left) or they can be positioned axially on the inside of the cylinder (above right) Screen cylinders are manufactured in various diameters from 1/2" pipe size to 35" diameter.

Screen cylinders (above right) can be fabricated into larger diameters. Each intersection of wedge wire and support rod is welded for strength and durability.Various wedge wire and support rod combinations can be used to produce the bestscreen design. Rotary Screens typically use wedgewire for the screening media.

The above externally fed unit has a spiral wound wedgewire screen drum 36" OD x 120" long.

TECHNICAL SPECIFICATION : NB 1.5", 2", 3", 4", 6", 8", 10", 12", 14"

Slot(mm) 0.15,0.25, 0.50, 0.75,1.00,1.50,2.00,3.00

 Lengths 6 Mts. & 3 Mts.

Grades Different grades suitable for tube well depths upto300 ft., 600 ft., 900 ft. and 1500 ft.

Material Low Carbon Galvanized Steel ( LCG ) andStainless Steel ( SS-304 )

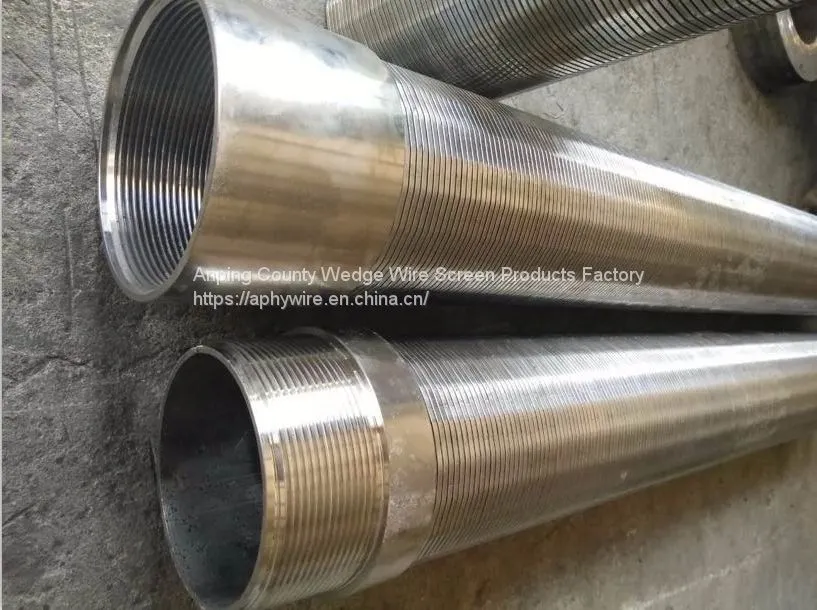

End Connection Plain beveled ends for butt welding or threaded.
